Adiabatic turbines sit at the heart of jet engines, steam power plants, and gas turbine design. The math is straightforward, but the real-world losses are not.
This post breaks down the science of adiabatic expansion, the efficiency gaps between theory and practice, where these turbines actually show up in industry, and how simulation tools help engineers validate their designs before hardware ever spins.
Key Takeaways
- Adiabatic turbines produce work only from the fluid’s internal energy—no heat exchange
- Temperature falls as work is extracted, per the First Law of Thermodynamics
- Friction and turbulence keep real turbines below the ideal isentropic benchmark
- Same physics drives jet engines, steam plants, and Brayton-cycle gas turbines
What Is an Adiabatic Turbine?
An adiabatic turbine extracts shaft work from gas or steam during expansion with no heat transfer into or out of the machine. An adiabatic process means no heat enters or leaves the system. That's it. No furnace, no cooling jacket, no exchange with the outside world during the process itself.
Engineers model turbines this way because the physics supports it. Gas or steam moves through the blades so fast that there simply isn't time for meaningful heat transfer with the casing. Add insulated housings, and the adiabatic assumption holds up well in practice.
The First Law Doesn't Lie
Using the standard convention where ΔU = Q - W, setting heat transfer (Q) to zero for an adiabatic system leaves us with:
ΔU = -W
In plain terms: work output comes directly from a decrease in internal energy. There's no other source. For steam and gases, internal energy tracks closely with temperature. Drop the internal energy, and the temperature drops with it.
Common misconception: Some assume a turbine could theoretically produce work at constant temperature. It can't. That would violate energy conservation outright. You'd be creating work from nothing.
Simple analogy: A can of compressed air cools at the nozzle when you clean a keyboard. The gas expands, pushes on the atmosphere, and loses internal energy as it does work. Same principle as an adiabatic turbine, different scale.
How Adiabatic Expansion Works in a Turbine
Engineers use isentropic expansion as the theoretical benchmark, the ideal, reversible version of an adiabatic process. The two terms are not interchangeable:
- Adiabatic = no heat transfer condition
- Isentropic = constant entropy, which only happens when the process is also reversible
Real turbines are adiabatic but not perfectly reversible, so they're never truly isentropic. MIT's thermodynamics materials make this distinction explicit, and it matters because calling every insulated real turbine "isentropic" overstates its actual performance.
The Work Equation
For a steady-flow turbine with negligible kinetic and potential energy changes, the specific shaft work is:
w = h_in - h_out
Engineers read enthalpy from steam or gas property tables at the inlet and outlet pressure and temperature. The ideal case uses the isentropic outlet state; the actual case shows a smaller enthalpy drop because irreversibilities reduce recoverable work. NASA's turbine modeling approach treats these as two distinct states and bridges them with an isentropic efficiency factor.
Where This Shows Up in Real Cycles
- Brayton cycle (gas turbines): ideal compression and expansion stages are modeled as isentropic; heat addition and rejection are handled separately
- Rankine cycle (steam turbines): steam expands through turbine stages, dropping pressure and temperature while the enthalpy drop becomes shaft work

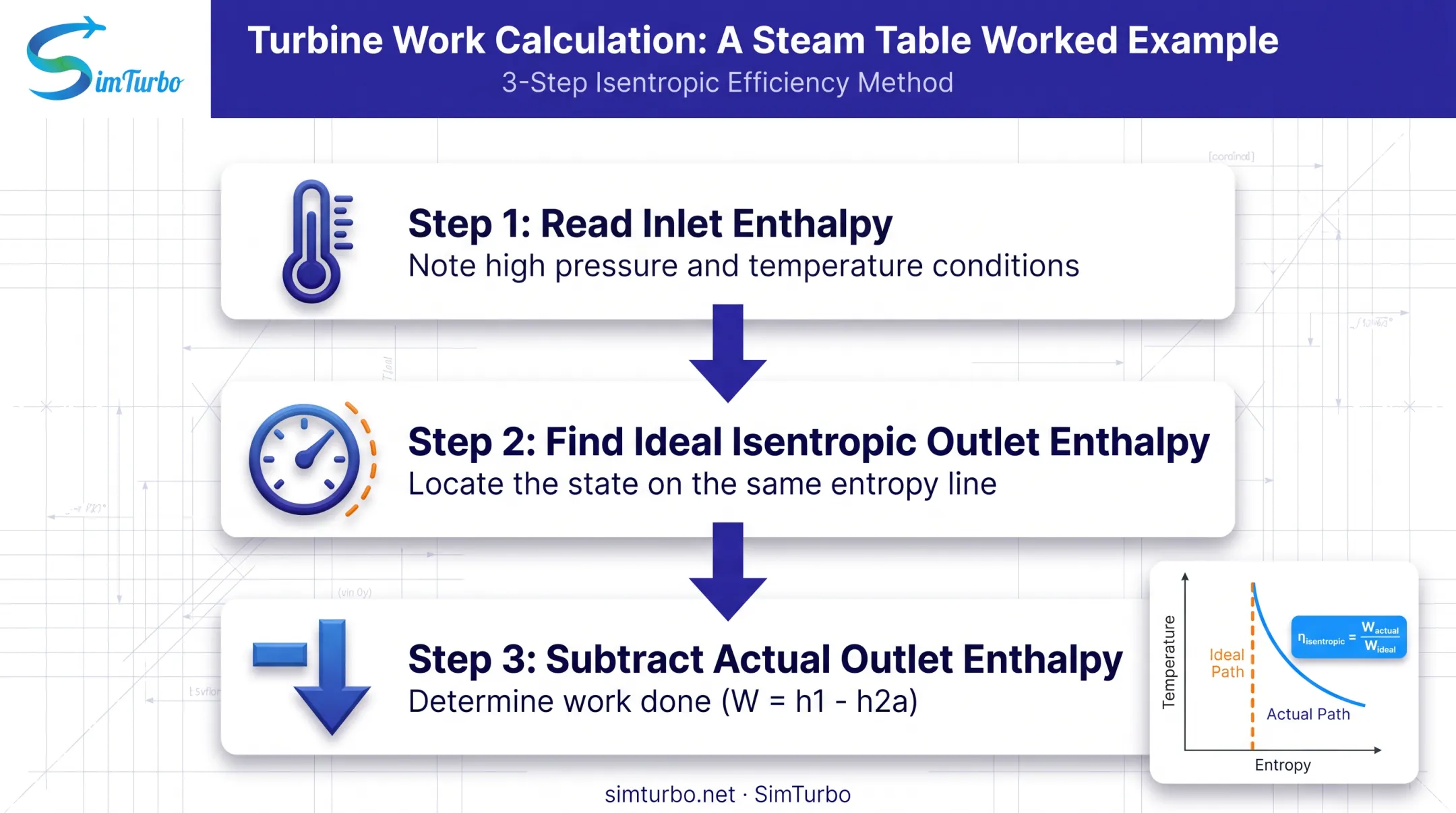

Worked example with steam tables:
- Read inlet enthalpy at the known high pressure and temperature
- Find ideal outlet enthalpy at the exit pressure and inlet entropy — that drop is maximum work
- Subtract the actual (measured or estimated) outlet enthalpy to get real work output
Efficiency and Real-World Losses in Adiabatic Turbines
No turbine hits its theoretical isentropic work output. Friction, turbulence, and flow separation all eat into performance, and engineers quantify this gap with isentropic efficiency:
η = actual work / ideal (isentropic) work

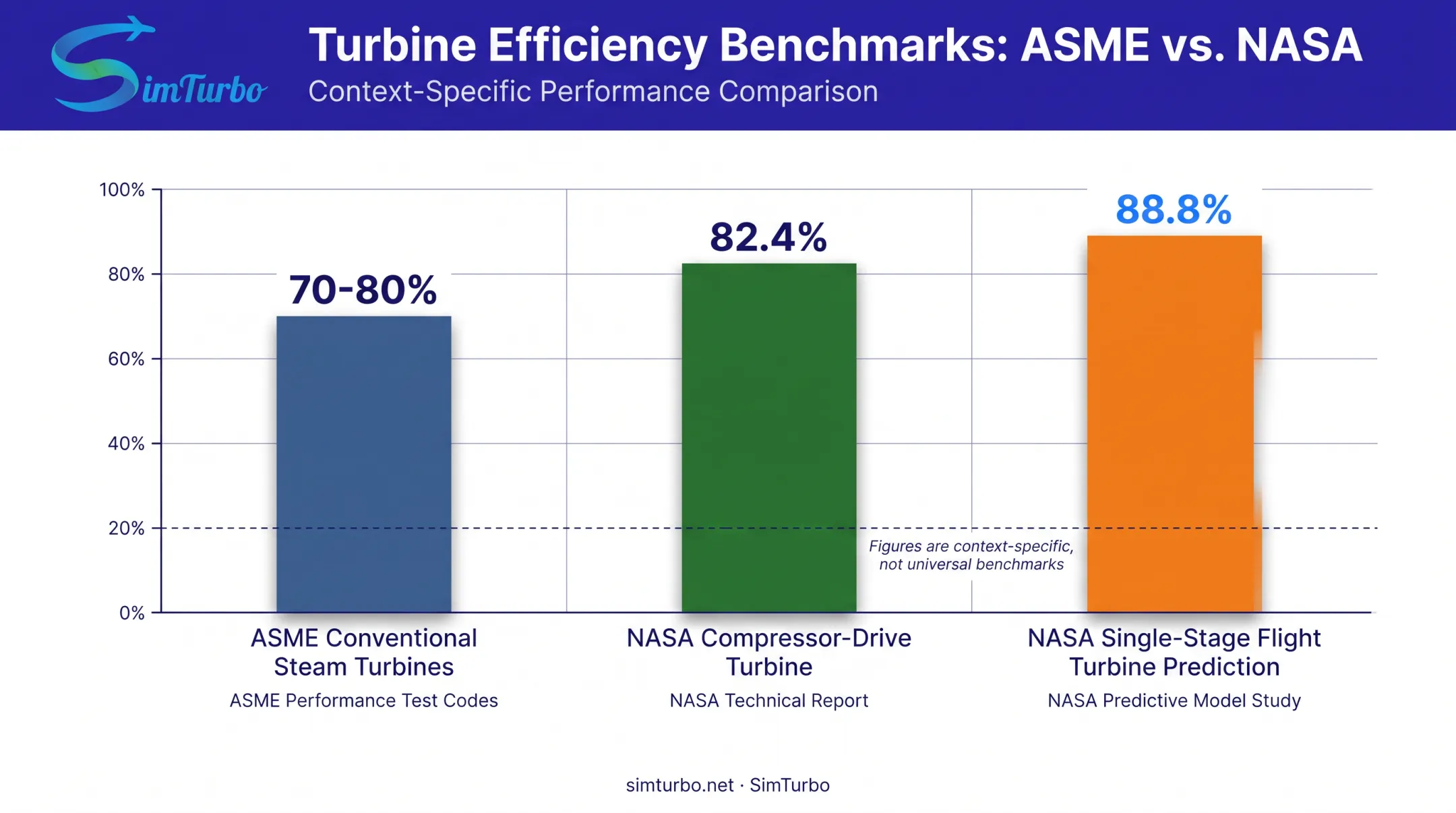

Benchmark Numbers (With Context)
These figures come from specific test conditions, not universal averages:
| Source | Reported Efficiency | Context |
|---|---|---|
| ASME | 70-80% | Conventional multistage steam turbines above 3,000 kW |
| NASA | 82.4% | Compressor-drive turbine, design point |
| NASA | 88.8% | Predicted, single-stage high-pressure flight turbine |
The takeaway: always check the boundary conditions before treating any single percentage as universal. A component test result and a plant-level number aren't interchangeable.
What Drives the Losses
- Clearance and leakage — a 2023 study found a 0.1% rise in blade-tip clearance raised leakage by roughly 0.3–0.4% and cut stage efficiency by a similar margin
- Blade profile and staging — improved tip shrouds and sealing have added two to four percentage points in documented steam turbine designs
- Turbulence and wake effects — unsteady flow alters heat transfer patterns across rotor surfaces
- Cooling requirements — film cooling can cut localized heat transfer by roughly 60% on hot-section surfaces, at the cost of added system complexity

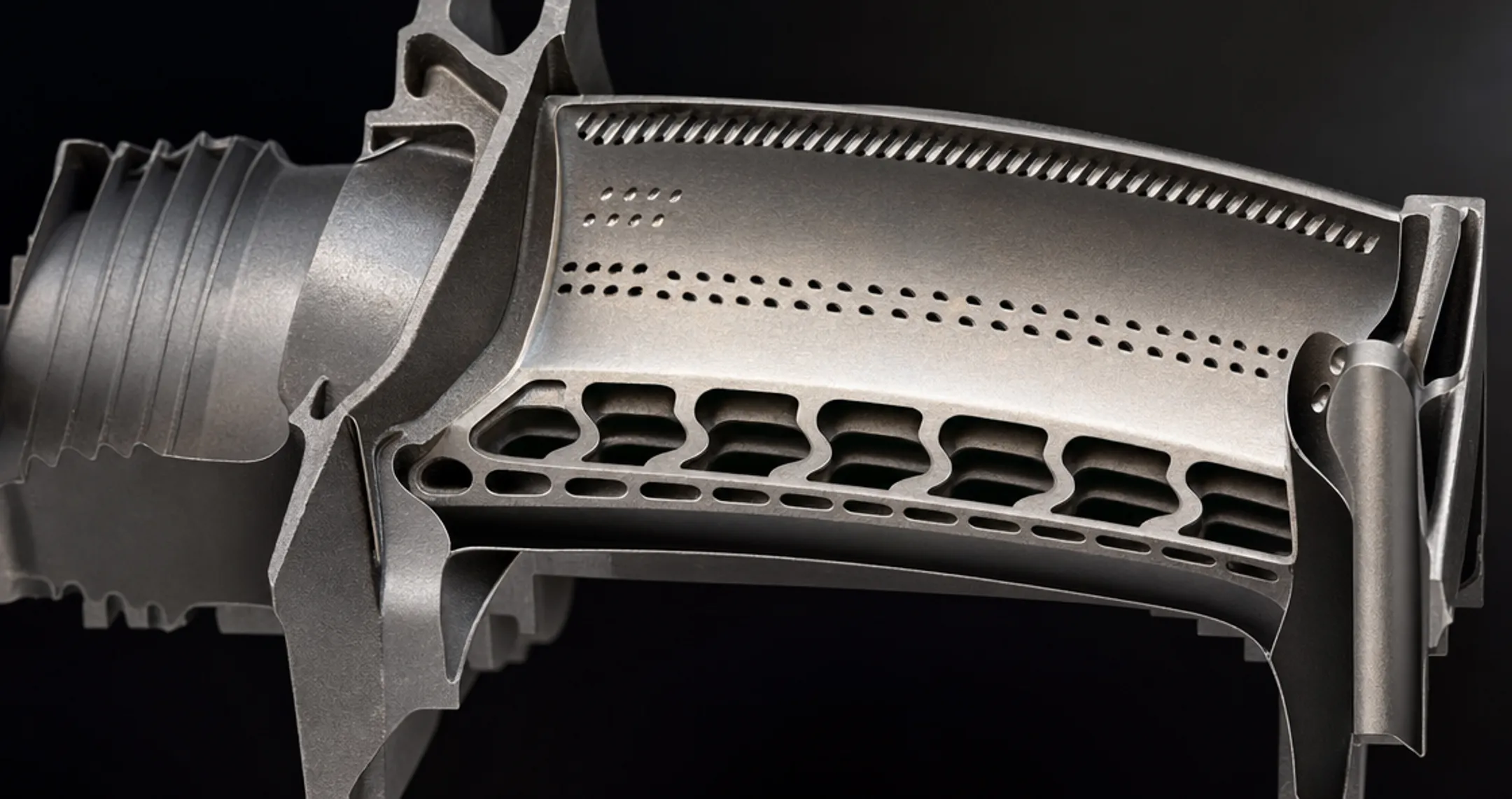

Material selection matters just as much as geometry. Turbine blades in hot-gas sections face extreme thermal stress, so cooling channels and heat-resistant alloys are standard in high-performance designs.
Real-World Applications of Adiabatic Turbines
Adiabatic turbine principles show up anywhere pressurized gas or steam expands to produce shaft work.
Power generation:
- Coal, gas, and nuclear plants rely on turbine expansion to drive generators
- Simple-cycle gas turbines convert energy at 20-35% efficiency at the plant level, a figure distinct from component isentropic efficiency
Aerospace:
- Jet engines extract work from combustion gases, then accelerate the remaining flow through a nozzle for thrust
- Enthalpy drop across the turbine directly ties to exhaust velocity, though the expansion isn't perfectly isentropic
Marine propulsion:
- Naval platforms use gas turbines rated in the tens of megawatts for high-power, compact propulsion needs
Turbochargers:
- Exhaust gas spins a turbine wheel that drives the compressor, recovering energy that would otherwise be wasted
Emerging applications:
- Small-scale turbine propulsion for UAVs, where cycle efficiency at small scale is still a core engineering challenge
- Hybrid-electric propulsion architectures increasingly pair turbine-generated shaft work with electric drive components
Education:
- Thermodynamics courses use adiabatic turbine problems as a core teaching tool: the math is clean, but the physical intuition (why does it cool down?) still trips up many students
Validating Adiabatic Turbine Performance with Simulation Software
Hand calculations using steam or gas tables work fine for single-point problems. They fall apart for transient conditions, multi-stage systems, or anything approaching a real engine startup sequence.
That's where component-based simulation platforms earn their place in the workflow.
Modeling the Full System, Not a Black Box

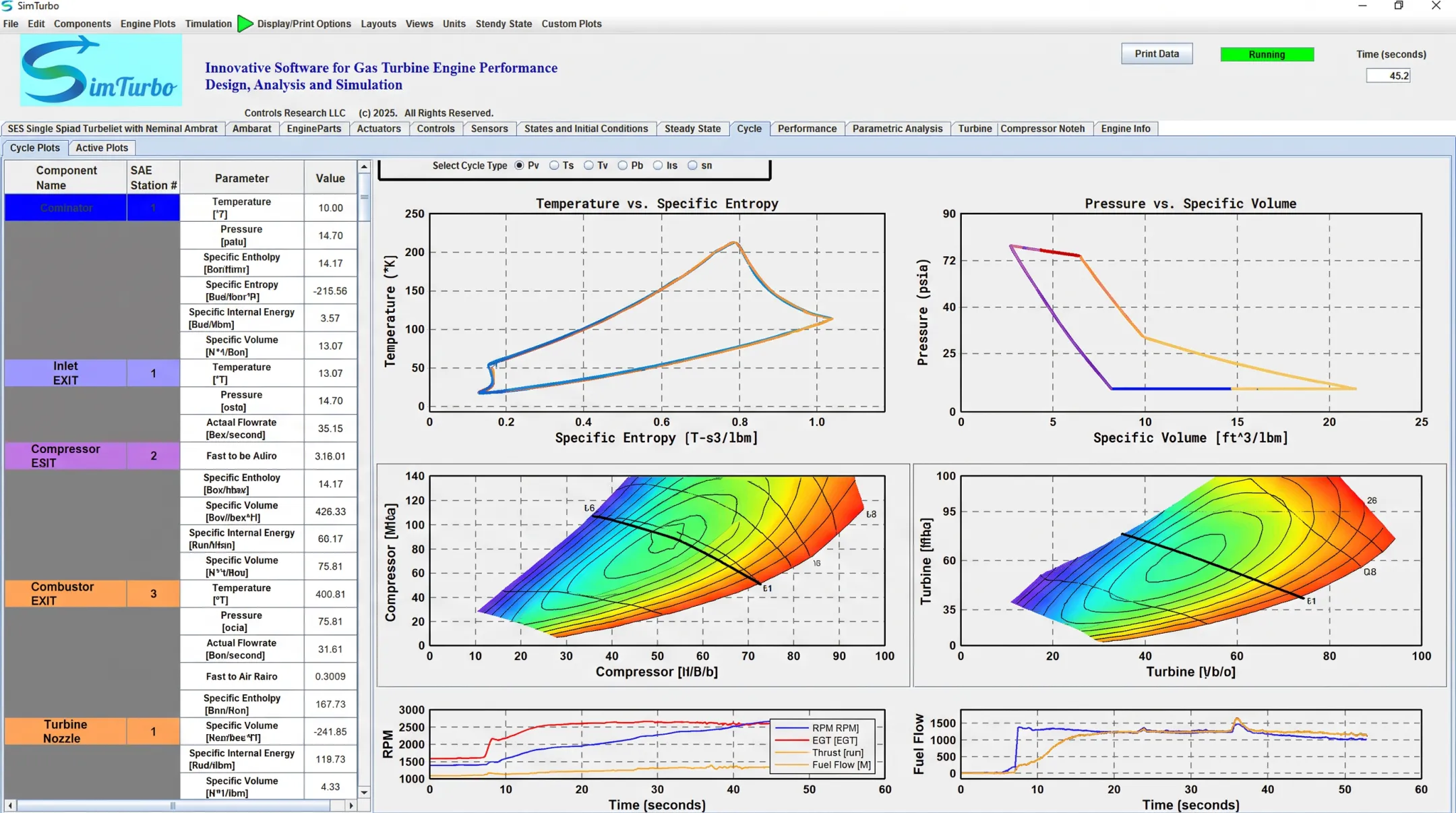

SimTurbo lets engineers arrange compressors, combustors, turbines, and nozzles as interconnected components rather than treating the entire engine as one opaque calculation. As the simulation runs, engineers can watch:
- Time-series graphs of transient parameters
- Component performance maps
- Effects of flight and environmental condition changes
- Real-time Temperature-Entropy (T-S) and Pressure-Volume (P-V) diagrams
This matters for adiabatic assumptions specifically. Watching a T-S diagram update live during a throttle burst or afterburner engagement shows exactly where entropy climbs due to irreversibility, rather than relying on a static, idealized textbook curve.
Transient and Control-Law Validation
SimTurbo supports:
- Startup transient simulation for single-spool turbojets
- Export of RPM, EGT, thrust, and SFC data to CSV or Excel for further analysis
- Built-in PID and FADEC logic, exportable as plant responses for external control-law checks
- Off-design simulation across changing altitude, Mach number, and ambient temperature
A Validation Benchmark Worth Noting
Controls Research LLC, the company behind SimTurbo, reports that its J85-GE-21 single-spool turbojet simulation matched NASA Lewis Research Center test data within ±2% for thrust, flow rate, temperature, and thrust-specific fuel consumption.
That's a company-reported figure, and it's worth treating it as such. Still, it shows the accuracy bar engineers should expect before trusting a tool for design decisions.
For students and working engineers alike, this kind of platform turns adiabatic expansion from an abstract equation into something you can actually watch happen. Pressure and temperature curves shift in real time as operating conditions change.
Frequently Asked Questions
What is adiabatic in simple terms?
Adiabatic means no heat transfer occurs into or out of a system during a process. Everything happens through work alone, not heat exchange.
What causes adiabatic cooling?
Adiabatic cooling happens when a gas expands and performs work without exchanging heat. That work comes from the gas's own internal energy, so its temperature drops.
What are some real-life examples of adiabatic processes?
Common examples include turbine expansion in jet engines, gas escaping rapidly from an aerosol can, and rising air masses cooling as they expand at higher altitudes in the atmosphere.
Why does temperature drop in an adiabatic turbine even though no heat is removed?
Under the First Law of Thermodynamics, with zero heat transfer the work output comes from the fluid's internal energy. Temperature falls as that internal energy decreases.
How is adiabatic expansion different from isentropic expansion?
Isentropic expansion is the ideal, loss-free version of an adiabatic process, meaning entropy stays constant. Real adiabatic turbines still have friction and turbulence, so they're adiabatic but not truly isentropic.
Can a turbine be both adiabatic and isothermal?
No. A work-producing turbine needs an internal energy drop, and temperature falls with internal energy—so isothermal, work-producing expansion isn't possible under adiabatic conditions.
