Performance loss rarely comes from one cause. Ambient temperature, humidity, altitude, mechanical wear, fuel type, and control tuning all interact to determine how close a turbine runs to its design curve. Chasing one variable while ignoring the others leaves money on the table.
This guide breaks down the core factors driving gas turbine performance, the proven methods engineers use to recover lost output, and how simulation tools let you test changes before you ever touch hardware.
Key Takeaways
- Ambient temperature, humidity, and altitude directly change air density, mass flow, and power output
- Inlet filter cleaning and compressor washing can recover several percent of lost performance
- Fuel type and quality drive heat rate, combustion stability, and emissions
- Simulation platforms let engineers validate performance changes virtually before implementation
Understanding the Core Factors That Affect Gas Turbine Performance

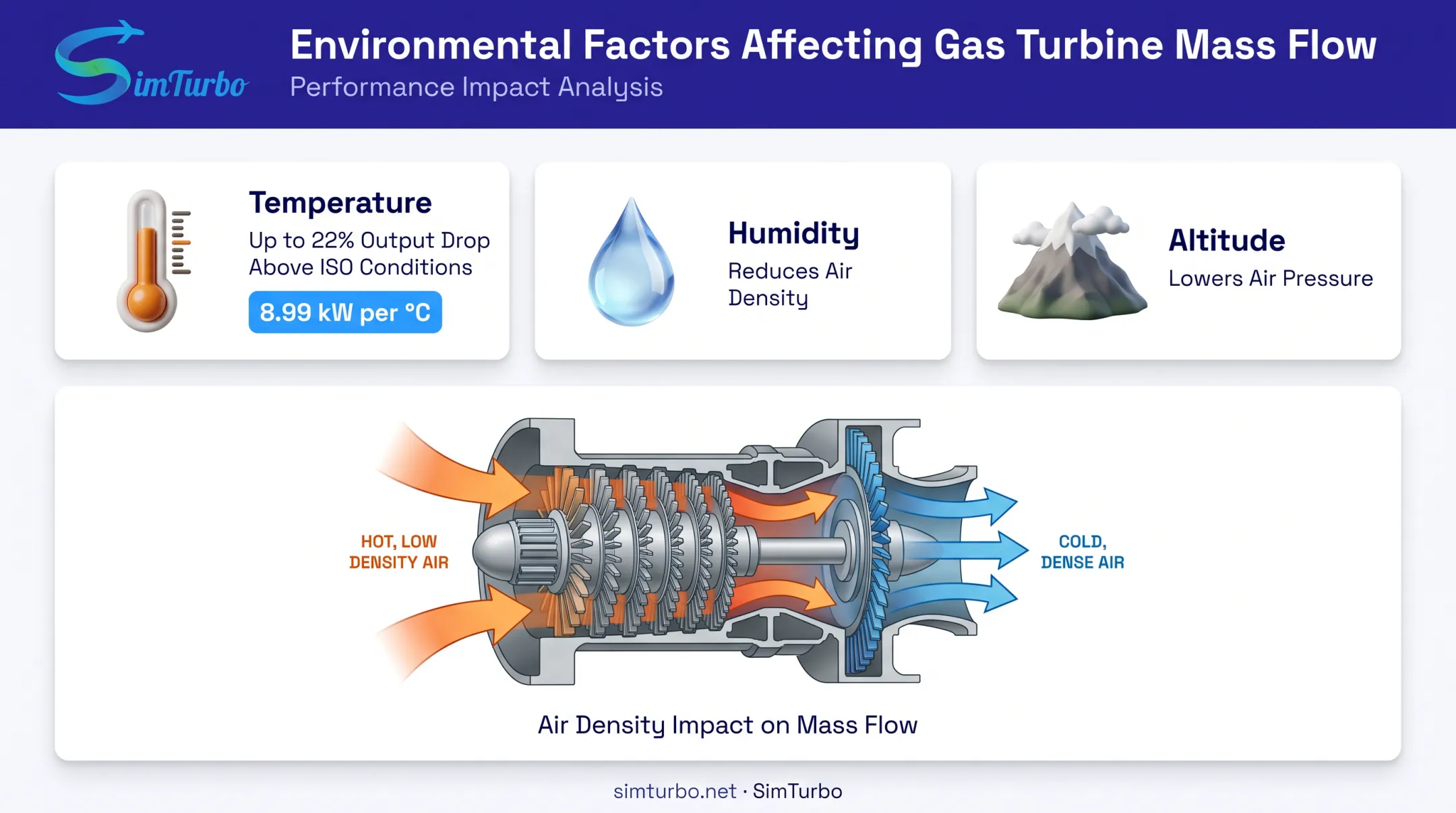

A gas turbine is a fixed-volume machine. It can only pull in a certain volume of air per revolution, regardless of conditions outside. That means air density controls mass flow, and mass flow controls power output.
Hot, humid, or high-altitude air is less dense. Less dense air means less mass flow through the same compressor volume, so less fuel can be burned and less power produced.
A 2021 peer-reviewed study found that gas turbine power output can drop by as much as 22% for temperature rises above ISO conditions, with thermal efficiency falling roughly 0.06% per degree Celsius above ISO reference temperature.
These sensitivities are engine-specific. A GE F5 case study found roughly 8.99 kW of additional output for every 1°C reduction in ambient temperature. Don't treat either figure as a universal constant. Compressor design, pressure ratio, and control logic all shape the actual slope.
Compressor Efficiency and Fuel Effects
Compressor efficiency changes with inlet air temperature. Hotter inlet air forces the compressor to work harder for the same pressure ratio, consuming more of the turbine's gross output before it ever reaches the generator.
Fuel composition shifts both shaft power and thermal efficiency. An ASME study comparing natural gas to DF-2 distillate on a Titan 250 engine found:
- Natural gas: baseline (1.000 normalized shaft power)
- DF-2 distillate: 0.948 normalized shaft power, 0.985 normalized thermal efficiency
- Syngas: lower heating value than natural gas, with output effects depending heavily on process and feedstock
Mechanical losses compound all of this. Blade clearance drift, blade damage, clogged filters, and worn compressor components each shave off output independently—which is why diagnosing the combination of effects matters more than fixating on any single cause.
Ambient and Site Condition Corrections
Manufacturer performance curves are published at ISO 2314 reference conditions: 15°C, 101.325 kPa, and 60% relative humidity. Your site almost never matches those conditions exactly.
That's why engineers use corrected flow and corrected speed parameters when comparing field data to published curves. Without correction, field data and catalog curves are not on the same basis. Any conclusion about "degradation" could just be an ambient mismatch.
Proven Methods to Improve Gas Turbine Performance
Several field-proven levers raise output and efficiency without a full engine redesign. The highest-impact options are inlet conditioning, cleaner airflow through the compressor, heat recovery, and tighter control.

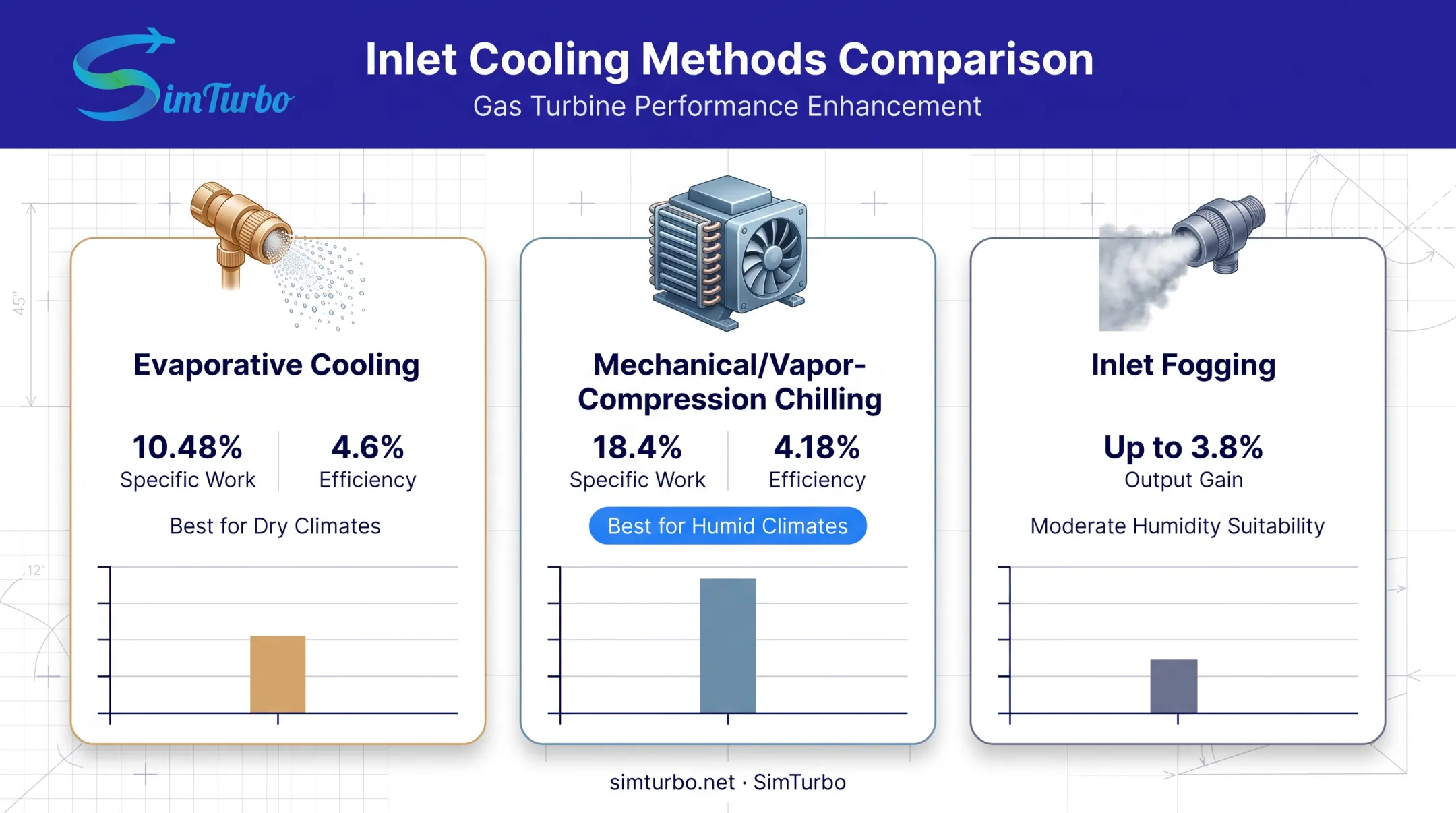

Inlet Air Cooling
In hot climates, cooling inlet air before it reaches the compressor restores density and mass flow. Three common approaches:
| Method | Reported Gain | Best Suited For |
|---|---|---|
| Evaporative cooling | 10.48% specific work, 4.6% efficiency | Low humidity, dry climates |
| Mechanical/vapor-compression chilling | 18.4% specific work, 4.18% efficiency | Humid climates, higher capital budgets |
| Inlet fogging | Up to 3.8% output gain | Moderate humidity conditions |
A comparative case study found evaporative cooling wins on efficiency in low-humidity conditions, while chilling delivers a bigger raw output boost at the cost of parasitic power draw. Site humidity decides the winner, not a general rule.
Filter Maintenance and Compressor Washing
Clogged inlet filters create pressure drop before air even reaches the compressor. An ASME study found up to a 2.5% power loss at 1000 Pa of differential pressure — a meaningful benchmark for trending filter health rather than relying on calendar-based swaps.

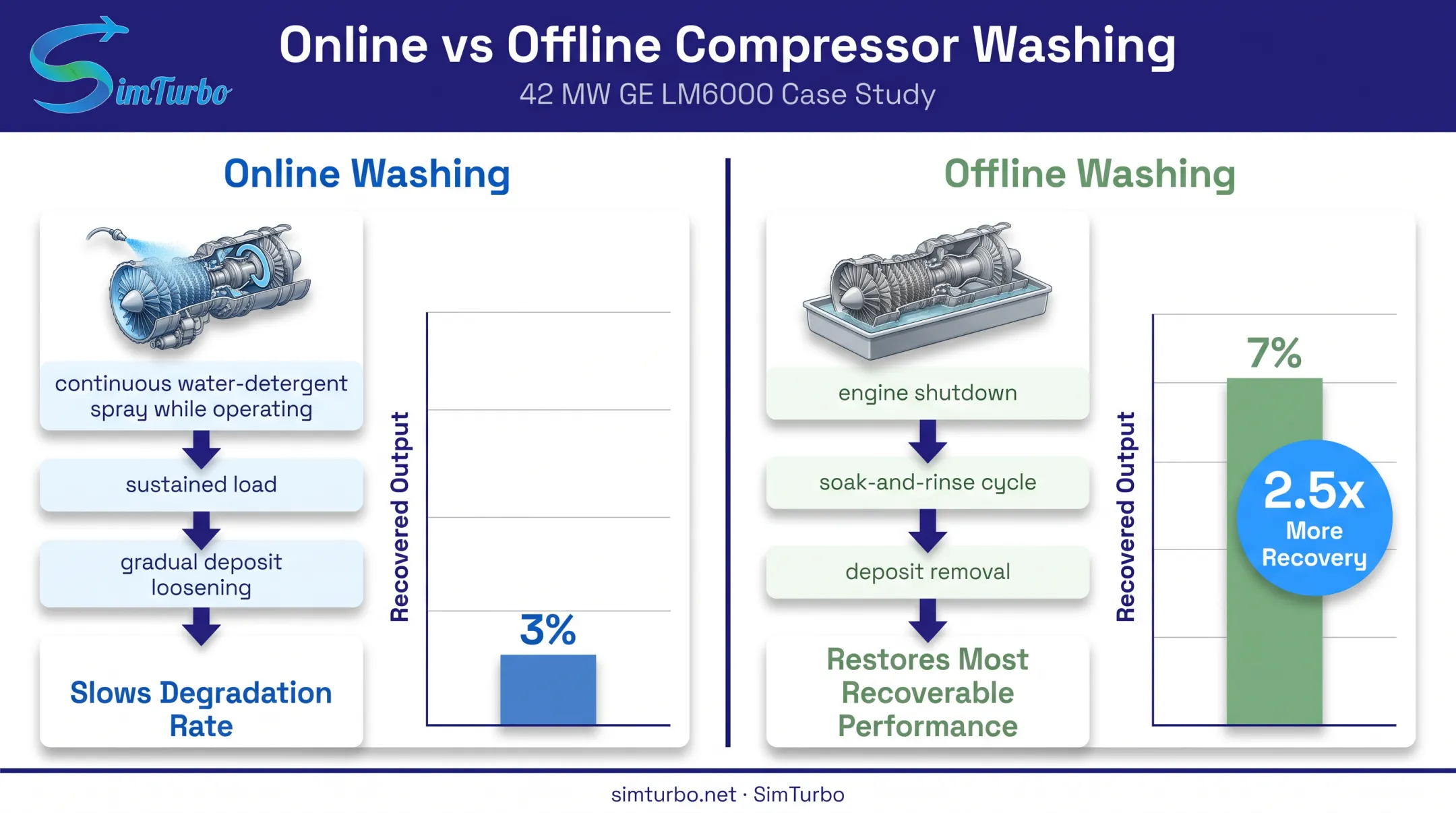

Compressor washing addresses fouling deposits that build up on blades over time:
- Online washing: performed while running; slows the rate of degradation
- Offline washing: soak-and-rinse while shut down; restores most of the recoverable performance
A 42 MW GE LM6000 case study confirmed that offline washing recovers significantly more output than online washing alone, though no single "recovery percentage" applies across all engine types.
Heat Recovery and Control Tuning
Recuperators and HRSGs capture exhaust heat that would otherwise be wasted. Siemens notes combined-cycle configurations can exceed 64% efficiency by routing exhaust heat into a steam bottoming cycle. Recuperators specifically pay off most at lower pressure ratios; above roughly 15:1, the theoretical benefit largely disappears for modern high-ratio engines.
Control system tuning keeps gains from cooling, washing, and heat recovery locked in. Well-tuned PID loops and limiters hold the engine near its optimal point without crossing temperature or surge limits.
SimTurbo's component library includes PID controllers, limiters, actuators, and sensors, with built-in speed, temperature, and surge-margin logic. Engineers can tune and test those controls against transient events such as startup, load changes, and throttle response.
Diagnosing Performance Loss Before It Becomes Costly
Tracking real-world performance against the design curve over time is the single best early-warning system for degradation. Fouling, erosion, and aging components all show up as a gradual drift away from the corrected baseline, long before anything triggers an alarm.
An ASME performance study found 5-7% shaft-power degradation within the first 10,000 operating hours, driven largely by compressor fouling. One industry estimate attributes roughly 70% of typical performance loss to fouling alone.
Two common misinterpretations trip up otherwise careful engineers:
- Treating ISO-rated curves as performance guarantees rather than reference points
- Applying lab-derived data directly to field conditions without ambient correction
Both errors lead to the same outcome: chasing a "problem" that's actually just an uncorrected comparison.
Using Simulation Software to Validate Performance Improvements
Before changing hardware, engineers increasingly test changes virtually. Simulation platforms model compressor-turbine matching, real-gas effects, and pressure losses to predict how a modification will actually behave.
SimTurbo's component-based architecture reflects this approach directly. Instead of treating the engine as a black box, engineers can:
- Drag, drop, and reconnect inlets, compressors, combustors, turbines, nozzles, shafts, and recuperators
- Adjust control components and observe closed-loop response in real time
- Run off-design analysis across varying altitudes, Mach numbers, and ambient temperatures

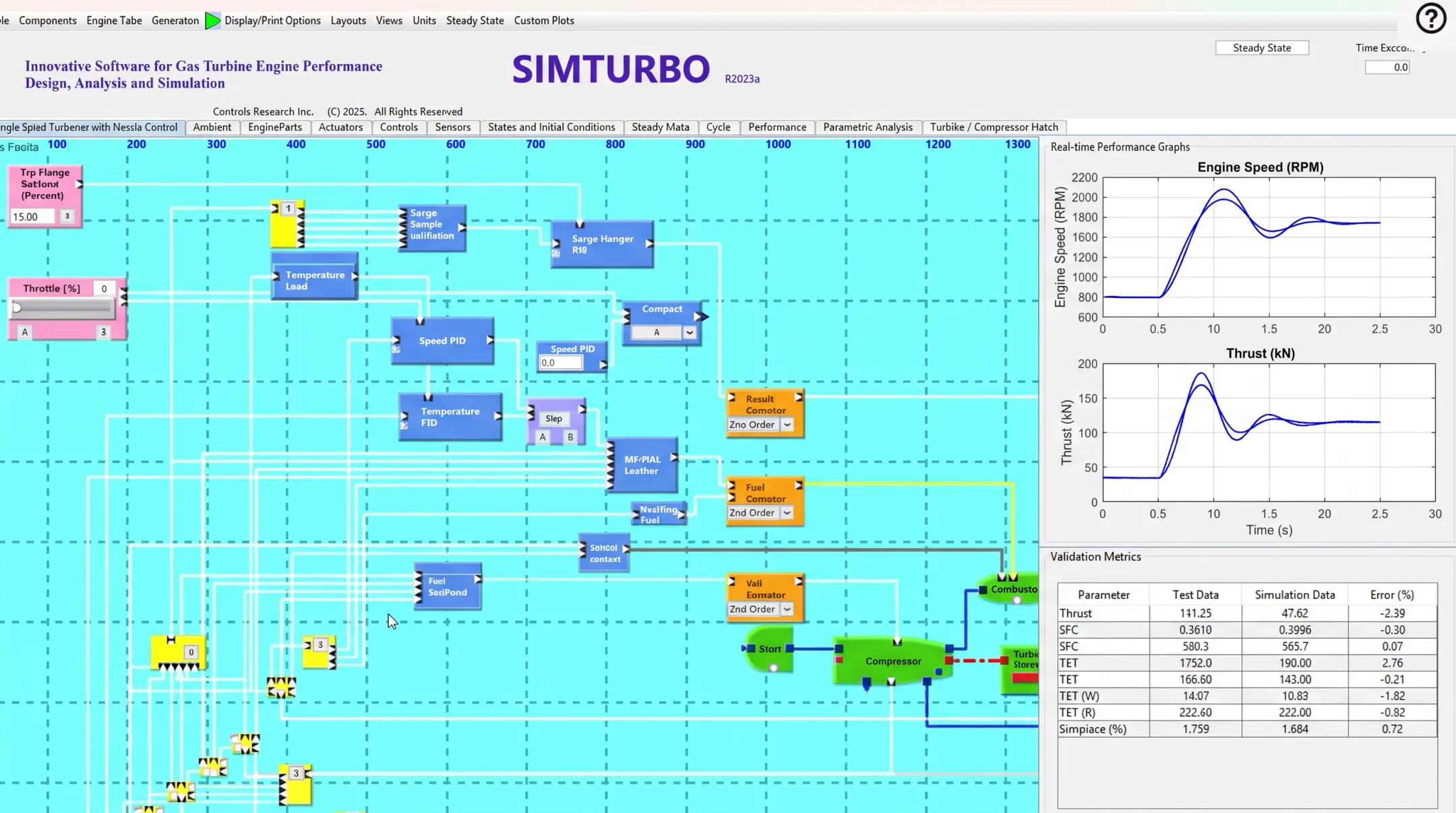

Validation matters more than features. SimTurbo validated its model against NASA Lewis Research Center's J85-GE-21 test data, matching within ±2% for thrust, flow rate, temperature, and thrust-specific fuel consumption. That kind of benchmark gives engineers confidence that a change tested in software will translate to real hardware.
For deeper analysis, transient simulation data (RPM, EGT, thrust, SFC) can be exported to CSV or Excel for post-processing in external tools like MATLAB/Simulink or Python.
Best Practices for Sustained Gas Turbine Performance
Getting performance right once isn't enough. Sustaining it requires a few disciplined habits:
- Build a site-specific maintenance schedule. Fouling and wear rates vary by location, so a generic OEM interval often misses local conditions.
- Test against ASME PTC 22 periodically. Formal performance testing catches gradual degradation before it becomes a costly repair.
- Model your actual site conditions. Manufacturer ISO-rated curves are a starting point, not a substitute for ambient- and fuel-specific modeling.
That modeling gap is what Paul J. Hoffman, founder of Controls Research LLC, built SimTurbo to close—so engineers can work from real ambient and fuel conditions instead of idealized reference curves alone.
Frequently Asked Questions
What are the common causes of turbine engine performance loss?
The main culprits are ambient temperature rise above ISO conditions, compressor fouling, blade erosion, and general component degradation over operating hours. Most losses come from a combination of these, not a single cause.
How does mass flow affect the performance of a gas turbine engine?
Colder, denser air increases mass flow through the fixed-volume compressor, boosting power output and efficiency. Hot or humid air reduces air density, cutting mass flow and available power.
How is gas turbine efficiency determined?
Efficiency is calculated as net power output divided by fuel energy input, based on the fuel's lower heating value (LHV). This ratio reflects how much usable energy the turbine extracts from the fuel burned.
How is compressor efficiency calculated?
Compressor efficiency compares the ideal (isentropic) temperature rise across the compressor to the actual temperature rise for the same pressure ratio. A smaller gap between ideal and actual means higher efficiency.
What is the typical pressure ratio for a jet engine?
Pressure ratios vary widely by engine class. Older turbojets ran single-digit to low-teens ratios. Modern military turbofans like the GE F414 reach around 30:1, and some commercial turbofans push toward 60:1.
Can washing the compressor really improve performance?
Yes. Washing removes fouling deposits on compressor blades that restrict airflow. Offline soak-and-rinse washing can recover a meaningful share of lost output, as GE LM6000 case studies have shown.
