But designing one well is harder than it looks. Engineers constantly wrestle with a trade-off: push aerodynamic efficiency higher, and rotor stress climbs with it. Solving that balance often means burning weeks on iterative CFD and FEA cycles before a design is even close to final.
This guide walks through the fundamentals, the design process, the core efficiency-versus-stress trade-off, and how simulation platforms like SimTurbo help engineers get there faster.
Key Takeaways
- Radial inflow turbines deliver high pressure ratios in a single, compact stage — ideal for low specific speed applications
- Design runs from specific speed selection through meanline sizing, 3D blade/volute design, and CFD/FEA validation
- Rotor stress limits, not aerodynamics alone, often dictate final blade shape
- Multistage radial configurations are gaining traction in sCO2 and ORC cycles with steep pressure ratios
- Tools like SimTurbo let engineers test architecture changes in real time and cut costly physical iteration
What Is a Radial Inflow Turbine?
A radial inflow turbine takes flow in radially and discharges it axially, converting pressure and thermal energy into shaft work as it crosses the rotor. That change in flow direction is what separates it structurally and aerodynamically from an axial machine.

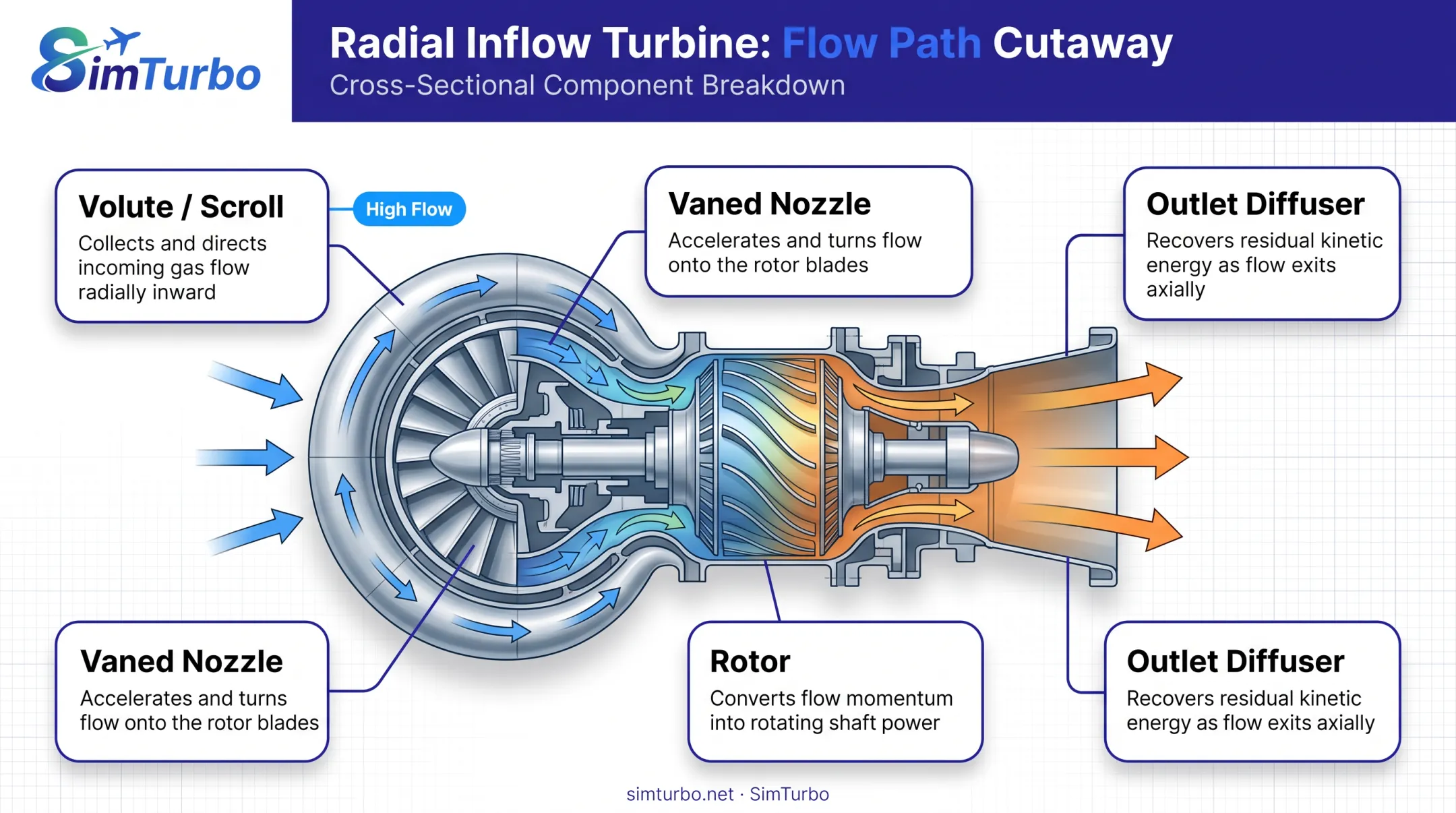

Core components:
- Volute/scroll: distributes incoming flow evenly around the rotor circumference
- Vaned nozzle: accelerates and directs flow into the rotor at the correct angle
- Rotor: extracts work as flow turns from radial to axial
- Outlet diffuser: recovers residual kinetic energy before exhaust
Radial vs. Axial Turbines: Key Differences
Radial turbines are built for low specific speeds and large enthalpy drops per stage. Axial turbines handle high mass flow rates across multiple stages at higher speeds.
| Factor | Radial Inflow | Axial |
|---|---|---|
| Per-stage expansion | Large, up to roughly 4:1 in turbocharger applications (Baines, 2002) | Moderate per stage, multiple stages stacked |
| Compactness | High: shorter axial length, fewer parts | Lower: needs more axial space |
| Manufacturing cost | Generally cheaper, more robust | Higher, more complex blading |
| Typical use | Turbochargers, APUs, small turboshafts | Large jet engines, industrial power turbines |
Common Applications
Radial inflow turbines show up wherever compact, high-work-per-stage machinery matters:
- Automotive and truck turbochargers
- Micro gas turbines (some prototypes spin past 350,000 rpm at millimeter scale)
- Geothermal and low-temperature ORC power generation
- Waste heat recovery systems
- Small UAV propulsion and auxiliary power units
The Radial Inflow Turbine Design Process
Designing a radial turbine follows a consistent sequence, even when application requirements change the details.

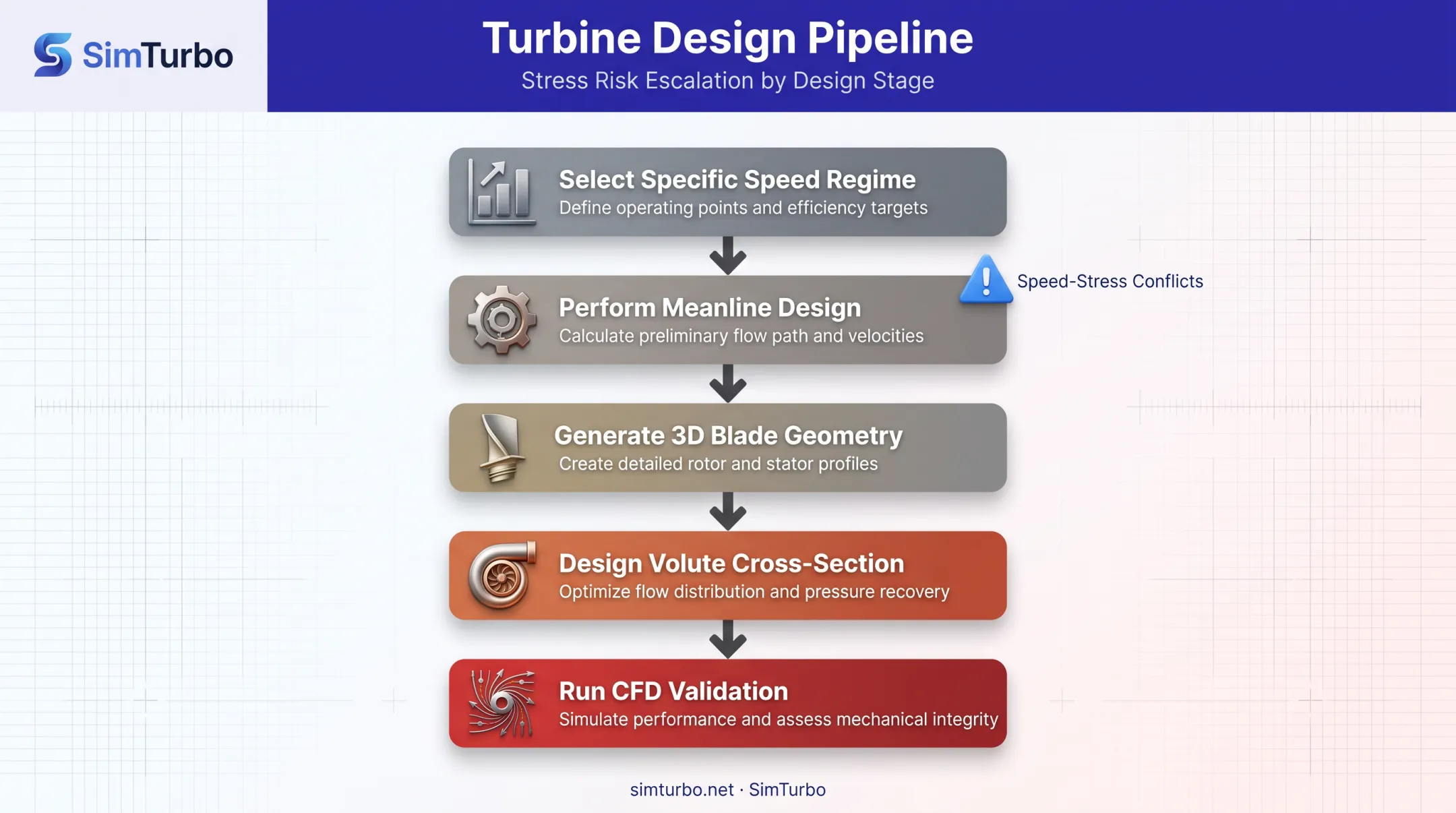

- Select the specific speed (Ns) regime. Using an Ns-Ds chart tells you which loss mechanisms dominate — leakage and secondary flow losses at low Ns, shock and profile losses at high Ns.
- Perform meanline design. This step sets the expansion ratio, rotational speed, flow rate, and rough meridional shape. A 2002 turbocharger study cites a 31,000 rpm design point with blade tip speeds between 440-470 m/s, near an Inconel material limit near 500 m/s (Baines, 2002).
- Generate 3D blade geometry. Shape nozzle and rotor blades with spanwise work distribution — free vortex or forced vortex — and loading choices (fore- or aft-loaded).
- Design the volute/scroll cross-section. Size it from inlet boundary conditions: velocity components, total pressure, and total temperature.
- Run CFD validation. Structured mesh, an appropriate turbulence model, and comparison against meanline predictions confirm whether the design meets its targets.
Since centrifugal stress scales with the square of rotational speed, even modest speed increases at step 2 can push blade stress well past safe limits by step 5. Catch those speed-stress conflicts early—before detailed geometry and CFD lock in a design that cannot survive structurally.
The Central Trade-Off: Aerodynamic Efficiency vs. Rotor Stress
Here's the tension every radial turbine designer eventually hits: unmodified 3D blade rotors tend to hit peak aerodynamic efficiency, but they often exceed material yield stress at operating speed.

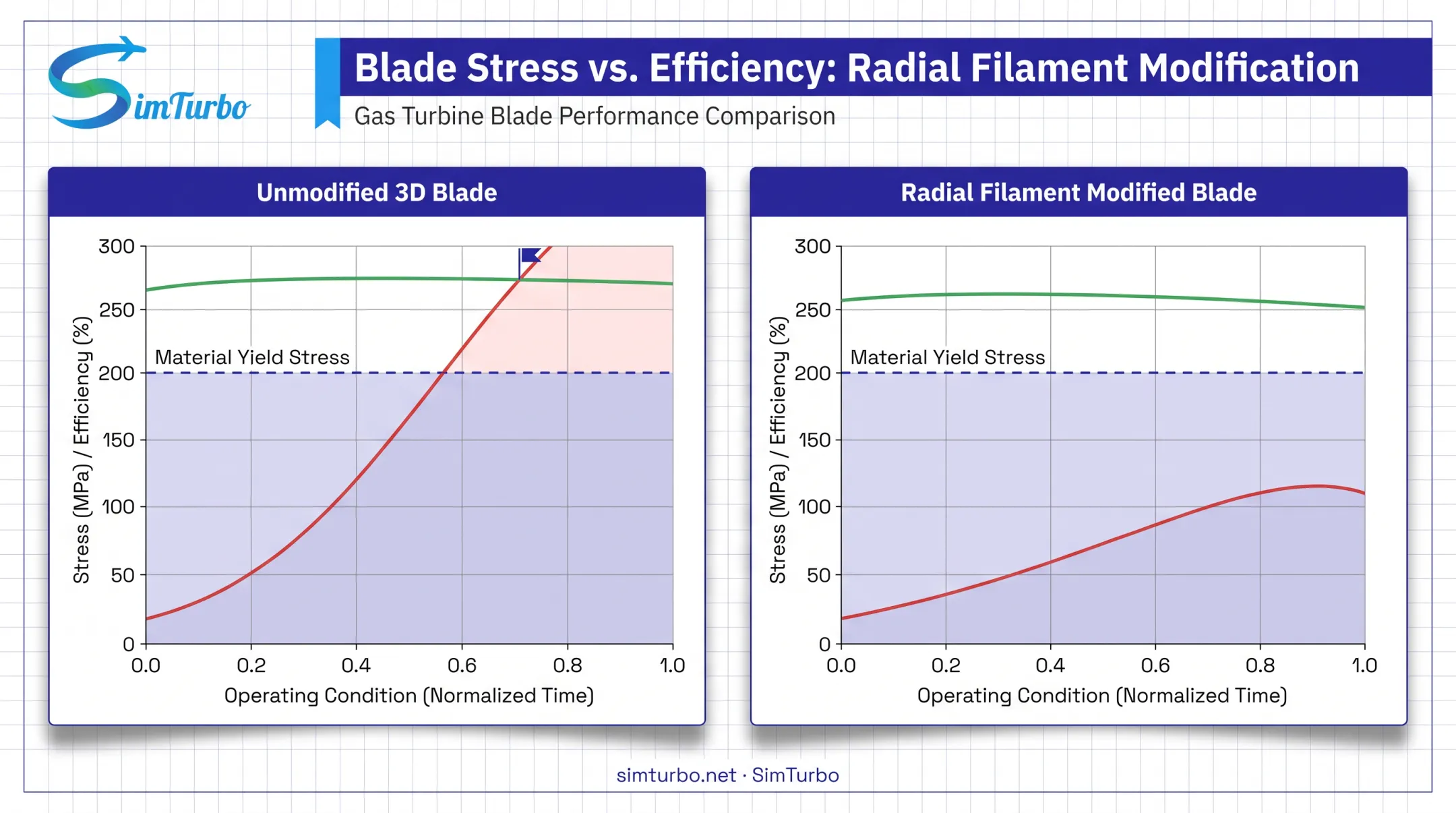

The conventional fix is a radial filament modification: straightening blade lean along the span to eliminate the bending stress caused by rotational forces. NASA's cooled high-temperature radial turbine work confirms this mechanism works mechanically, though it typically comes at an efficiency cost (NASA, Snyder & Allison, 1992).
A related NASA study found that lowering blade-jet speed ratio from around 0.7 down to 0.6 doesn't cause a dramatic efficiency drop, but it can meaningfully reduce centrifugal stress — a useful lever short of full radial filament straightening (NASA, Roelke, 1992).
Where multi-disciplinary optimization comes in:
- Search for a "less-3D" shape instead of fully straightening the blade and taking the full efficiency penalty
- Preserve most of the aerodynamic benefit while keeping stress within safe margins
- Iterate blade lean, thickness distribution, and loading together rather than treating aero and structural design as separate steps
Before any design gets finalized, FEA-based von Mises stress analysis at maximum overspeed conditions is non-negotiable. It's the last checkpoint confirming mechanical safety, and skipping it is how rotors fail in service, not in testing.
When Single-Stage Isn't Enough: Multistage Radial Turbine Considerations
High pressure ratio cycles — supercritical CO2 (sCO2) and Organic Rankine Cycle (ORC) systems — frequently exceed what a single radial stage can handle efficiently. That has pushed more designers toward multistage radial architectures.
Key challenges with multistage designs:
- Stage matching — each stage needs to operate near its own efficiency peak across a range of conditions
- Interstage duct losses — swirling, non-uniform flow leaving one rotor complicates the next stage's inlet conditions
- Added mechanical complexity — more seals, more bearings, more rotor dynamics considerations
One 2025 ORC study found that a multistage configuration delivered roughly 9% higher power and 9.3% greater thermal efficiency for one working fluid compared to a single stage, though at the cost of larger size and added system cost (Alshammari et al., 2025).
That trade-off—more performance for more hardware—defines the multistage decision.
The same pressure-ratio limits show up in packaging. Mass flow and envelope constraints push micro gas turbines toward multistage layouts when a single-stage design would need an impractically small or large rotor.
How Simulation Software Accelerates Radial Turbine Design
Traditional design-of-experiments work for radial turbines often means running dozens of CFD and FEA cases just to map out the efficiency-stress trade-off space. That's expensive in engineering hours and compute time, and it's slow.

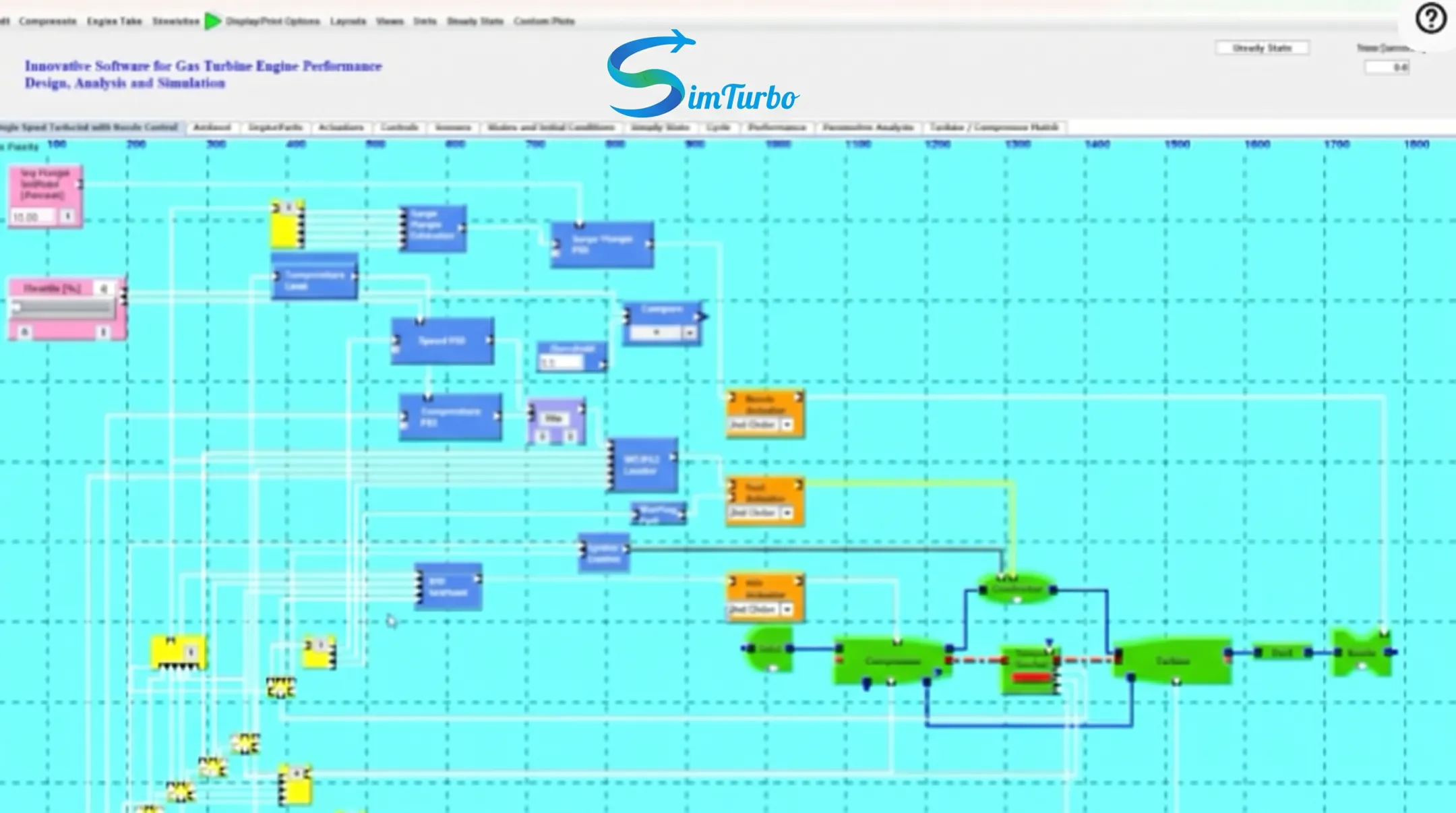

SimTurbo, built by Controls Research LLC, takes a different approach at the system level. It's a Windows-based, component-based simulation platform. Engineers assemble a gas turbine architecture from inlets, compressors, combustors, turbines, nozzles, shafts, and controls, then re-parameterize it quickly rather than rebuilding models from scratch.
What that looks like in practice:
- Real-time steady-state and transient visualization runs on a standard PC, no special hardware needed
- Engineers can watch throttle changes, startup sequences, or surge events play out on live cycle diagrams
- Results export directly to Excel, MATLAB/Simulink, or Python for further analysis
- Built-in PID and FADEC logic let control engineers validate turbine control laws before hardware-in-the-loop testing
SimTurbo's single-spool turbojet model was benchmarked against NASA Lewis Research Center's J85-GE-21 test data, landing within ±2% for thrust, flow rate, temperature, and thrust-specific fuel consumption. That kind of fidelity matters when you're trying to trust a simulation before committing to hardware.
For university capstone teams, discounted class and lab licensing makes the platform accessible without a full commercial budget. That helps students work through turbine architecture and control problems as coursework, not just production design.
SimTurbo speeds up system-level architecture and control validation, reducing the number of configurations you'd otherwise need to test physically. It isn't a substitute for detailed rotor-level CFD/FEA or final hardware testing. Those remain essential steps before a radial turbine design ships.
Frequently Asked Questions
What is a radial turbine?
A radial turbine is a turbomachine where flow enters radially and exits axially, converting pressure and thermal energy into rotational work. It's common in turbochargers and small gas turbines because of its compact size and high work output per stage.
What are the differences between axial and radial turbines?
Radial turbines suit low specific speeds and large per-stage enthalpy drops, typically in a single compact stage. Axial turbines handle higher mass flows across multiple stages, common in large jet engines and power turbines.
What causes efficiency loss when reducing rotor stress in radial turbines?
Radial filament blade modifications straighten blade lean to cut centrifugal bending stress. That change moves the blade away from its optimal 3D loading shape, which typically lowers aerodynamic efficiency.
When should engineers consider a multistage radial turbine design?
Multistage configurations make sense for high pressure ratio cycles like sCO2 and ORC systems, where a single stage would exceed practical limits. Mass flow and packaging constraints in micro gas turbines can push toward multistage too.
How is CFD used in radial inflow turbine validation?
CFD analysis uses a structured mesh and an appropriate turbulence model to simulate flow through the nozzle and rotor. Engineers compare results against meanline design predictions to confirm expected work coefficients and losses.
Can simulation software replace physical prototyping in turbine design?
Platforms like SimTurbo reduce the number of physical prototyping iterations by validating engine architecture and control behavior virtually first. Hardware testing remains necessary before deployment.
