Turbine speed sensors quietly govern both scenarios. They track rotational speed in automatic transmissions, jet engines, and industrial turbomachinery, feeding data to the control systems that decide when to shift, how much fuel to burn, or when to sound an overspeed alarm.
This article breaks down how these sensors work, where they're mounted, common failure signs, and why engineers increasingly simulate sensor behavior before building physical hardware.
Key Takeaways
- Turbine speed sensors measure shaft or gear rotation and feed that signal to engine and transmission control units.
- Hall effect, magnetoresistive, and inductive designs sense speed without physical contact.
- Air gap distance and sensor placement directly affect signal accuracy and control timing.
- Simulation tools let engineers validate sensor-driven control logic before physical testing.
What Is a Turbine Speed Sensor?
A turbine speed sensor measures how fast a turbine, shaft, or gear rotates and reports that speed to a control system. In gas turbines and jet engines, sensors mounted near compressor or turbine spools feed shaft speed to the engine controller.
That signal supports critical control functions:
- Startup sequencing and light-off logic
- Fuel scheduling in steady-state and transient operation
- Overspeed protection and limit enforcement
The same sensing principle appears in automatic transmissions, where an input speed sensor (sometimes called a turbine speed sensor) tracks gearbox input speed—not fluid movement. According to Bosch Mobility, transmission speed sensors detect input, output, or intermediate speed and relay that signal to the transmission control unit (TCU) for shift pressure, gear selection, and torque coordination.
Important distinction: A turbine speed sensor is not the same as a turbine flow meter. A flow meter uses a bladed rotor spinning inside a fluid stream to measure volumetric flow, calibrated against a K-factor. A speed sensor measures shaft rotation instead. Both can generate pulse signals, but they measure entirely different physical quantities.
How Turbine Speed Sensors Work
Most turbine speed sensors rely on a simple physical idea: a rotating ferromagnetic target disrupts a magnetic field, and that disruption gets converted into an electrical signal.
The Core Mechanism
A coil wrapped around a permanent magnet sits close to a toothed wheel or set of blades. As each tooth passes, it changes the magnetic flux at the sensor face and induces an AC voltage in the coil. Honeywell's documentation on variable-reluctance sensors confirms this produces one waveform cycle per tooth passage, resembling a sine wave.
Two things scale with rotational speed:
- Signal frequency (more teeth passing per second = higher frequency)
- Signal amplitude (faster flux changes generally produce stronger voltage)
Air gap—the distance between sensor and target—directly controls how much voltage the sensor generates. A tighter gap means a stronger signal.
That margin matters most at low speeds, where slower flux changes already produce weak voltage. If the air gap is too wide, the signal can drop below the threshold the controller needs to register a clean pulse.
Three Sensing Technologies

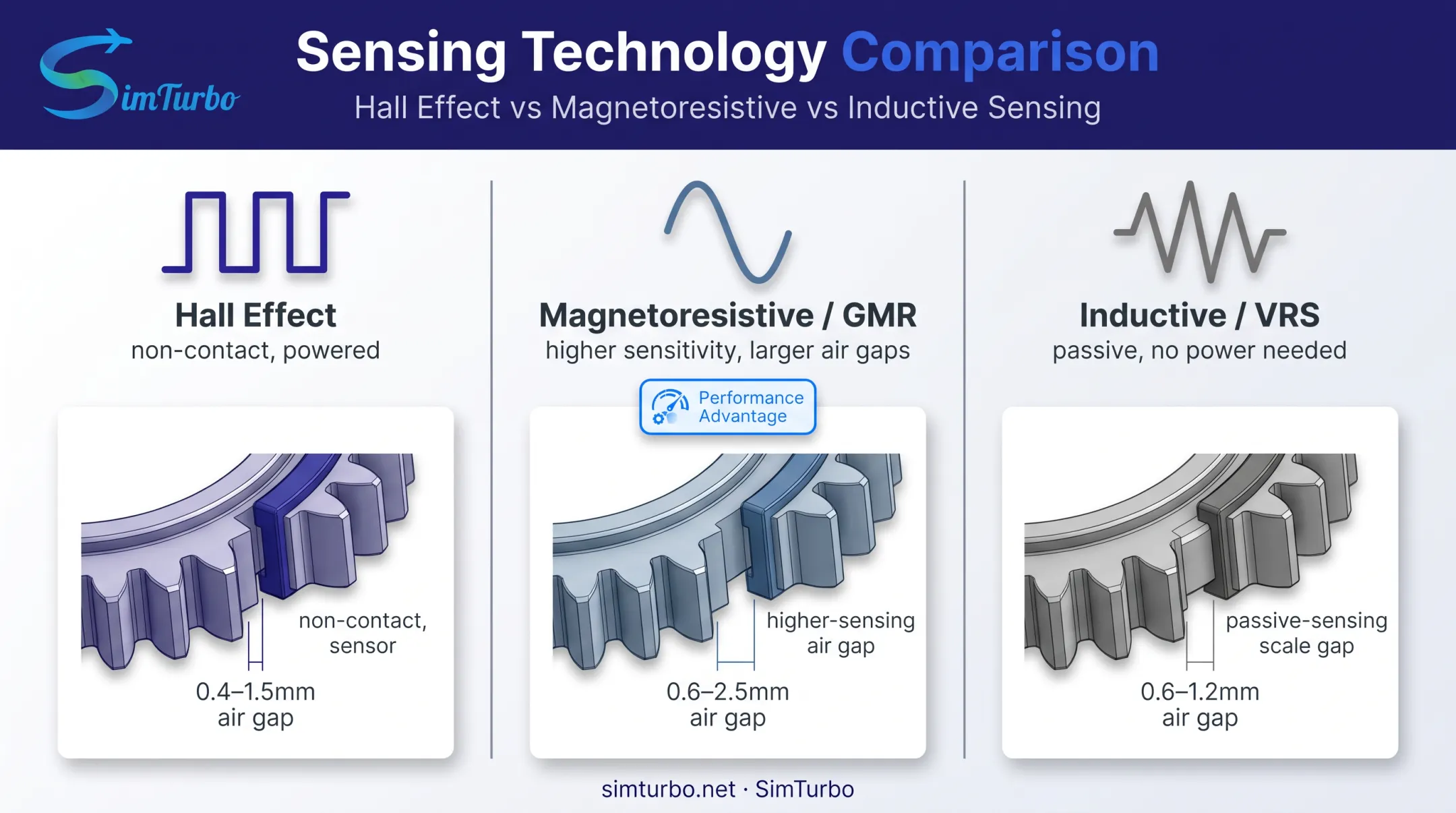

| Technology | Output Type | Contact Type |
|---|---|---|
| Hall effect | Digital frequency signal | Non-contact, powered |
| Magnetoresistive/GMR | Sinusoidal, higher sensitivity | Non-contact, powered |
| Inductive (VRS) | Raw AC sine wave | Non-contact, passive |
Hall-effect sensors include built-in signal conditioning. Bosch Motorsport's HA-N sensor, for example, produces a digital output that connects directly to control units, with a specified air gap of 0.4–1.5 mm and an operating range up to 4.2 kHz.
Magnetoresistive sensors use a ring magnet with alternating poles. As it turns, the sensor outputs a sinusoidal signal, and speed is calculated from the time between threshold crossings. Allegro notes that GMR technology's higher sensitivity supports larger air gaps without sacrificing accuracy.
Inductive pickups, like the Woodward-style magnetic sensor common in turbine applications, stay passive. A permanent magnet and pole piece generate flux; as gear teeth interrupt that flux, current induces in the coil. No external power needed—just physics.
From Raw Signal to Usable Data
The raw AC waveform isn't directly usable by an ECU or FADEC. A conditioning circuit detects threshold crossings, counts pulses over a fixed time window, or measures the period between pulses.
That count becomes rotational frequency. The controller then scales it to actual shaft speed using known tooth count and gear ratios.
Where Are Turbine Speed Sensors Located, and What Types Exist?
Mounting location depends entirely on system design. The same speed-sensing approach shows up in automotive drivetrains and gas turbine engines, with hardware scaled to each environment.
Across both settings, common sensor types include variable-reluctance (magnetic pickup), Hall-effect, and eddy-current probes. The choice depends on temperature, air gap, and the signal conditioning the control system expects.
Automotive transmissions: Sensors sit close to a target wheel on the input or turbine shaft, often positioned behind the torque converter. Bosch describes flexible mounting for different transmission architectures using steel or multipole trigger wheels.
Gas turbines and jet engines: Sensors mount on the engine casing or gearbox, facing a phonic wheel on the compressor or turbine spool. Meggitt's aerospace speed probes use one or two coils with a rare-earth magnet to generate a frequency signal proportional to shaft speed.
Common applications include:
- Differential gears
- Automatic transmission input and output shafts
- Pump and rack drives
- Camshaft and crankshaft speed measurement
- Jet engine compressor and turbine spools
Those mounting points all serve one job: reading rotational speed. That role is easy to mix up with vibration monitoring, which uses different hardware.
Speed Sensors vs. Vibration Sensors
A speed sensor asks how fast a shaft is turning. A vibration sensor asks how the machine is moving.

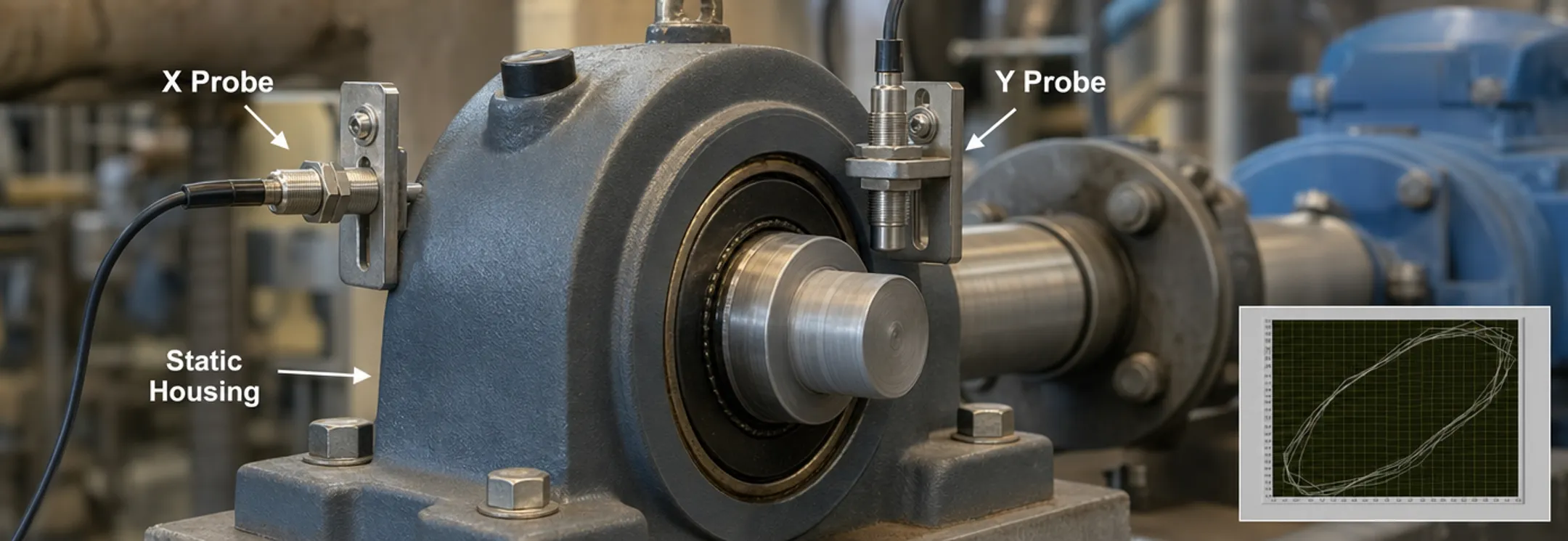

Vibration monitoring typically uses accelerometers or proximity probes on the casing or bearing housing, not on the rotating shaft itself. NASA turbine research places most vibration instrumentation in the static frame rather than on the rotor. Bently Nevada proximity probes, for example, detect shaft displacement to flag imbalance, misalignment, or bearing wear.
Used together, the two data streams complement each other. Speed sensors supply the rotational reference; vibration sensors reveal mechanical health issues that speed alone will not show.
Applications and Signs of a Failing Turbine Speed Sensor
Turbine speed sensors show up anywhere rotational speed feeds a control decision:
- Automatic transmissions (shift timing, torque converter lockup)
- Differential gears
- Industrial pumps
- Camshaft/crankshaft RPM tracking
- Jet engine spool speed monitoring
Common Failure Symptoms
On vehicles, a failing input/turbine speed sensor often shows up as:
- Erratic or hard shifting
- Gear hunting between ratios
- Check-engine light with stored trouble codes
- Limp-in mode limiting vehicle speed
On industrial pumps and jet-engine installations, loss of a valid speed signal more often triggers overspeed protection trips, unstable closed-loop speed control, or unexpected limiter action.
P0715 is the standard OBD-II code for "Input/Turbine Speed Sensor A Circuit." According to KBB's diagnostic reference, this code means the transmission control module isn't receiving a valid input-speed signal, which disrupts normal shift-point logic. Symptoms vary by vehicle, but some models drop into a fail-safe mode capped around 35 mph.
Basic Diagnostic Steps

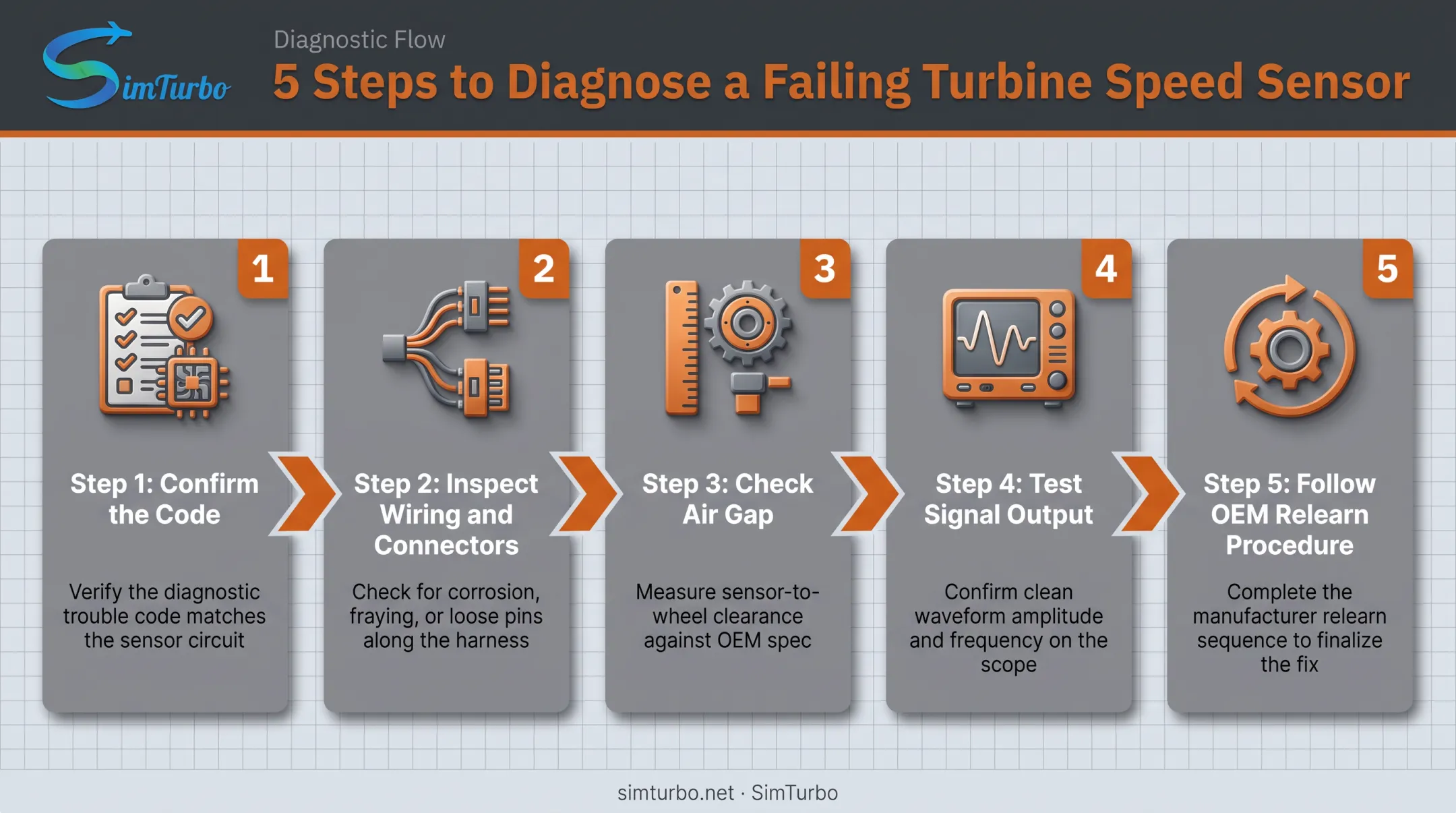

For vehicle systems, a practical check sequence looks like this:
- Confirm the code and identify which sensor is flagged, since some vehicles have multiple input sensors
- Inspect wiring and connectors for corrosion, damage, or debris near the sensor
- Check air gap against OEM specifications; too wide a gap weakens the signal
- Test signal output with a multimeter or oscilloscope, checking for a clean AC waveform (inductive) or digital pulse (Hall/MR)
- Follow OEM relearn procedures after replacement to reset TCM/PCM expectations
Turbine Speed Sensors in Engineering Design and Simulation
Before an engineer trusts a control law on a physical turbine, that logic needs testing in simulation. NASA's real-time engine simulation work, dating back to 1975, established simulation as a test bed for evaluating new control laws before engine testing begins.
SimTurbo, our gas turbine simulation platform, applies that same idea to speed-sensor and control-loop design.
Modeling Sensor Behavior Before Hardware Testing

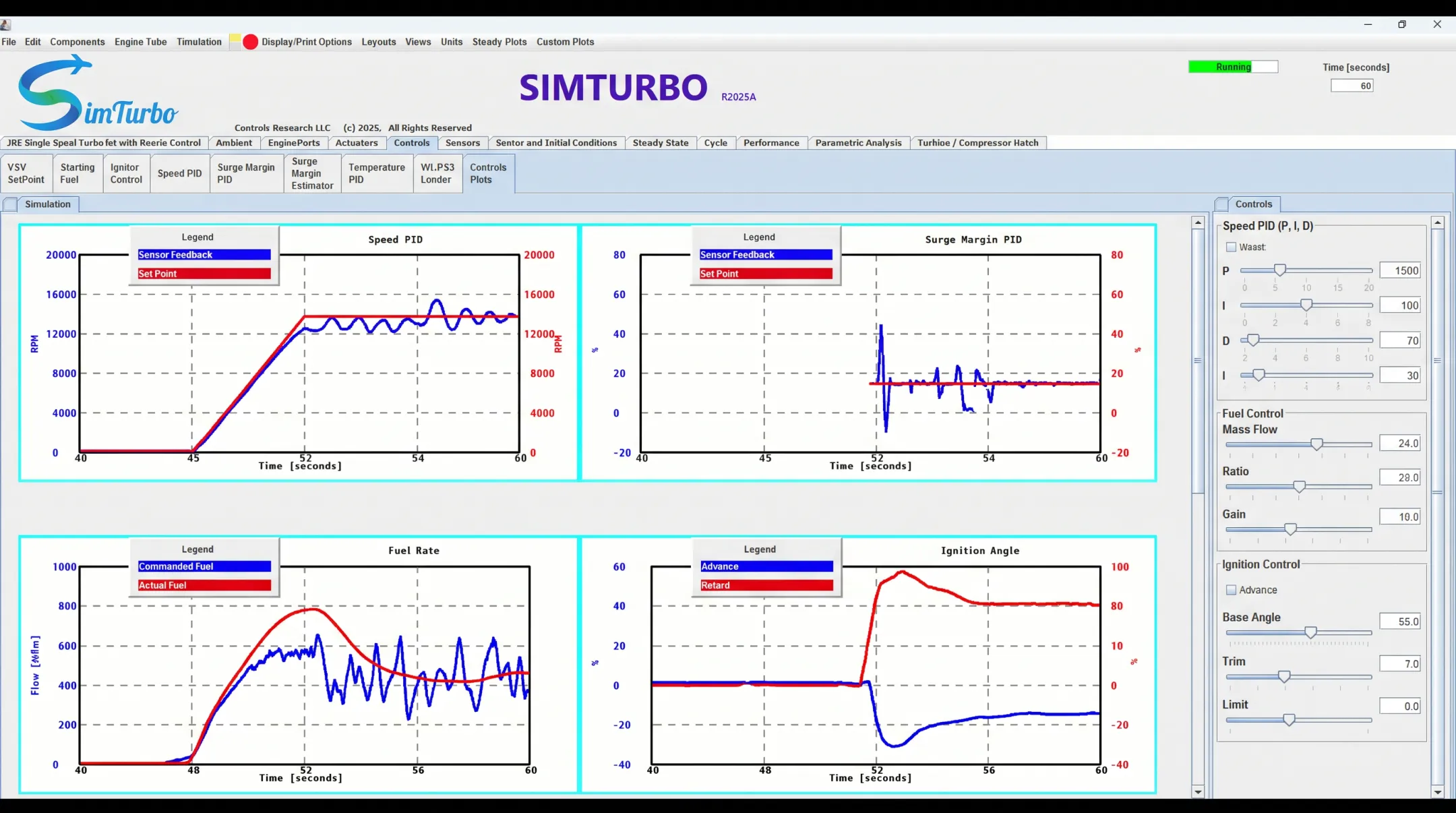

SimTurbo's interface displays live RPM graphs plotting both the commanded set point and simulated sensor feedback side by side. Engineers can adjust Speed PID settings, along with fuel and ignition parameters, to see how a control loop responds to sensor input under transient conditions like startup, slam-acceleration, or simulated sensor faults.
The platform's component-based architecture avoids black-box modeling. Speed sensor data flows through explicitly connected blocks:
- A simulated sensor feeds RPM data to a Speed PID controller
- The PID computes a control response
- Compressor and turbine blocks calculate outputs using physics-based component maps
- Updated engine conditions feed back into the sensor loop
That layout shows how a sensor reading moves through the control system at each step.
Exporting Data for Validation
Transient simulation results, including RPM, EGT, thrust, and SFC, export to CSV and Excel for post-processing. That means simulated speed-sensor behavior can be compared directly against real sensor readings gathered from bench or flight testing.
SimTurbo's steady-state results are benchmarked against NASA J85-GE-21 turbojet test data, giving universities, aerospace teams, and power-generation engineers a documented starting point for control-law validation before committing to hardware-in-the-loop testing.
Engineers can use the 30-day free trial to build a single-spool turbojet model and examine sensor-driven control behavior firsthand.
Frequently Asked Questions
Where is the turbine speed sensor located?
In gas turbines, the sensor is typically mounted on the casing facing the compressor or turbine spool. In automatic transmissions, it usually sits near the input shaft behind the torque converter. Exact placement depends on the system design.
How do turbine vibration sensors work?
Vibration sensors use accelerometers or proximity probes, usually mounted on the casing or bearing housing, to detect oscillations in blades or shafts. This differs from speed sensors, which track rotational frequency rather than motion or displacement.
What's the difference between a turbine speed sensor and a turbine flow meter?
A speed sensor measures how fast a shaft or turbine rotates. A flow meter measures fluid volume passing through a pipe using a bladed rotor and a calibrated K-factor. They serve entirely different purposes despite both producing pulse signals.
