That's a problem, because LPT design decisions ripple through the entire propulsion system. Engineers designing LPT stages must balance aerodynamic efficiency, weight reduction, and long-term durability, often on compressed development timelines where physical prototyping is too slow and too expensive to rely on alone.
This article breaks down LPT fundamentals, the design parameters that matter most, how LP turbines differ from their high-pressure counterparts, where the technology is heading, and how simulation tools are changing how engineers validate their designs before cutting metal.
Key Takeaways
- LPTs extract residual energy from combustion gases to drive the fan and low-pressure compressor
- Modern designs favor fewer, higher-speed stages to cut weight without sacrificing efficiency
- Advanced materials and additive manufacturing enable lighter, more durable blades and disks
- Simulation platforms let engineers test LPT design changes before physical prototyping begins
What Is a Low-Pressure Turbine and How Does It Work?
A low-pressure turbine sits downstream of the high-pressure turbine, capturing residual energy in the combustion gases after the HPT has done its work. In a turbofan, the LPT connects via a shaft to the low-pressure compressor and the fan, meaning its rotational output directly drives the fan that generates most of the aircraft's thrust.
Inside the LPT, multiple stages of rotating blades and stationary vanes convert the gas flow's remaining energy into shaft work. Each stage extracts a portion of that energy, with the split between stages carefully engineered. A NASA small turbofan study measured a two-stage LPT work split of 58% in stage 1 and 42% in stage 2. That result closely matched the 57%/43% design target, with stage efficiencies of 93% and 91% at the design point.

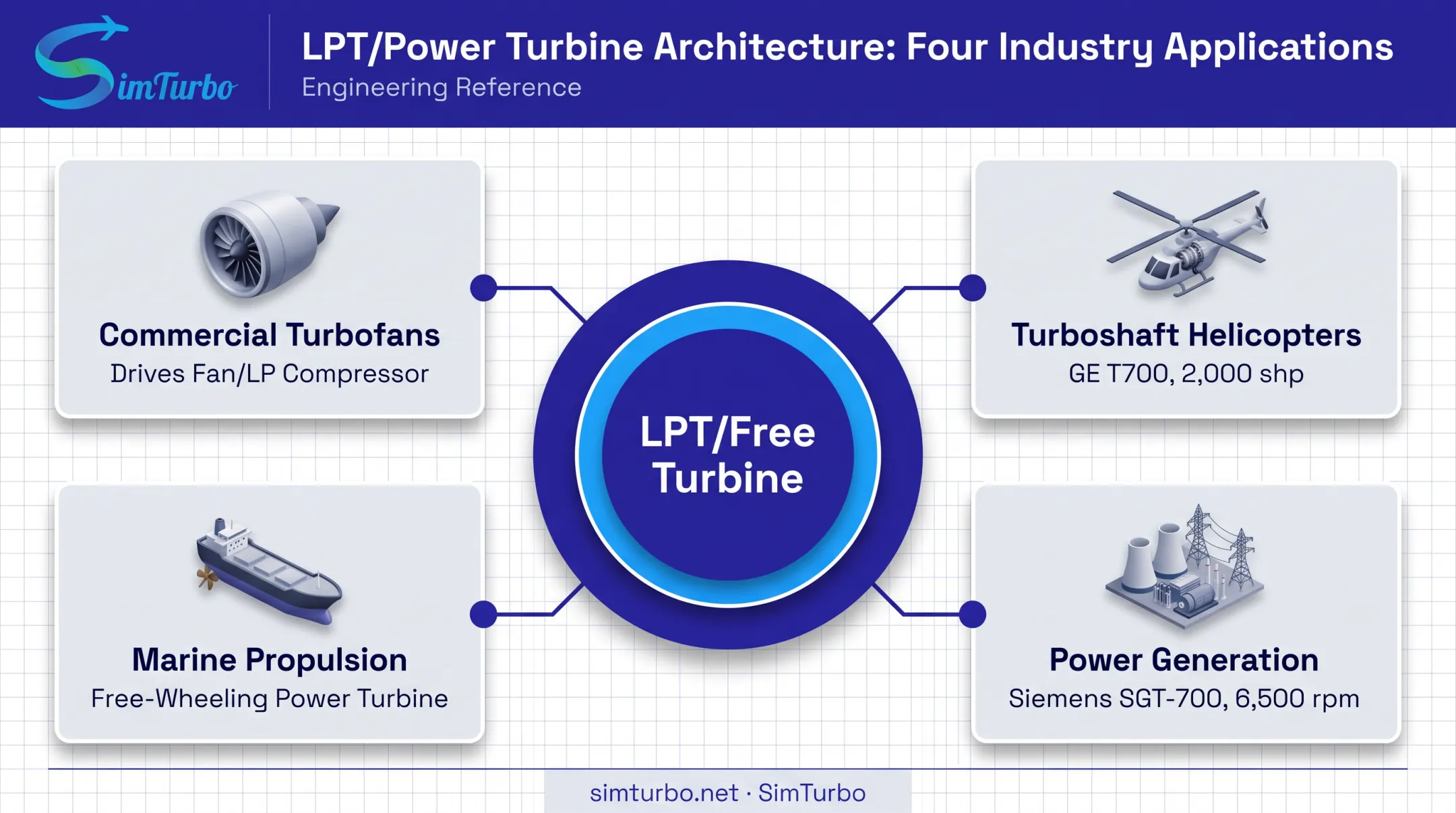

LPTs aren't exclusive to aircraft. Similar architectures—often called power turbines or free turbines—show up in:
- Commercial and business-jet turbofans: drive the fan and LP compressor
- Turboshaft helicopter engines: GE's T700 delivers up to 2,000 shp
- Marine propulsion systems: a free-wheeling power turbine pairs with a turbojet gas generator
- Power-generation gas turbines: Siemens Energy's SGT-700 uses a 2-stage, uncooled free-power turbine up to 6,500 rpm
The terminology shifts by industry. Marine and industrial engineers often say "free power turbine," while aerospace engineers say "LPT." The concepts are related, but the terms are not always interchangeable.
Key Design Parameters and Engineering Considerations
Stage Count and Aerodynamic Loading

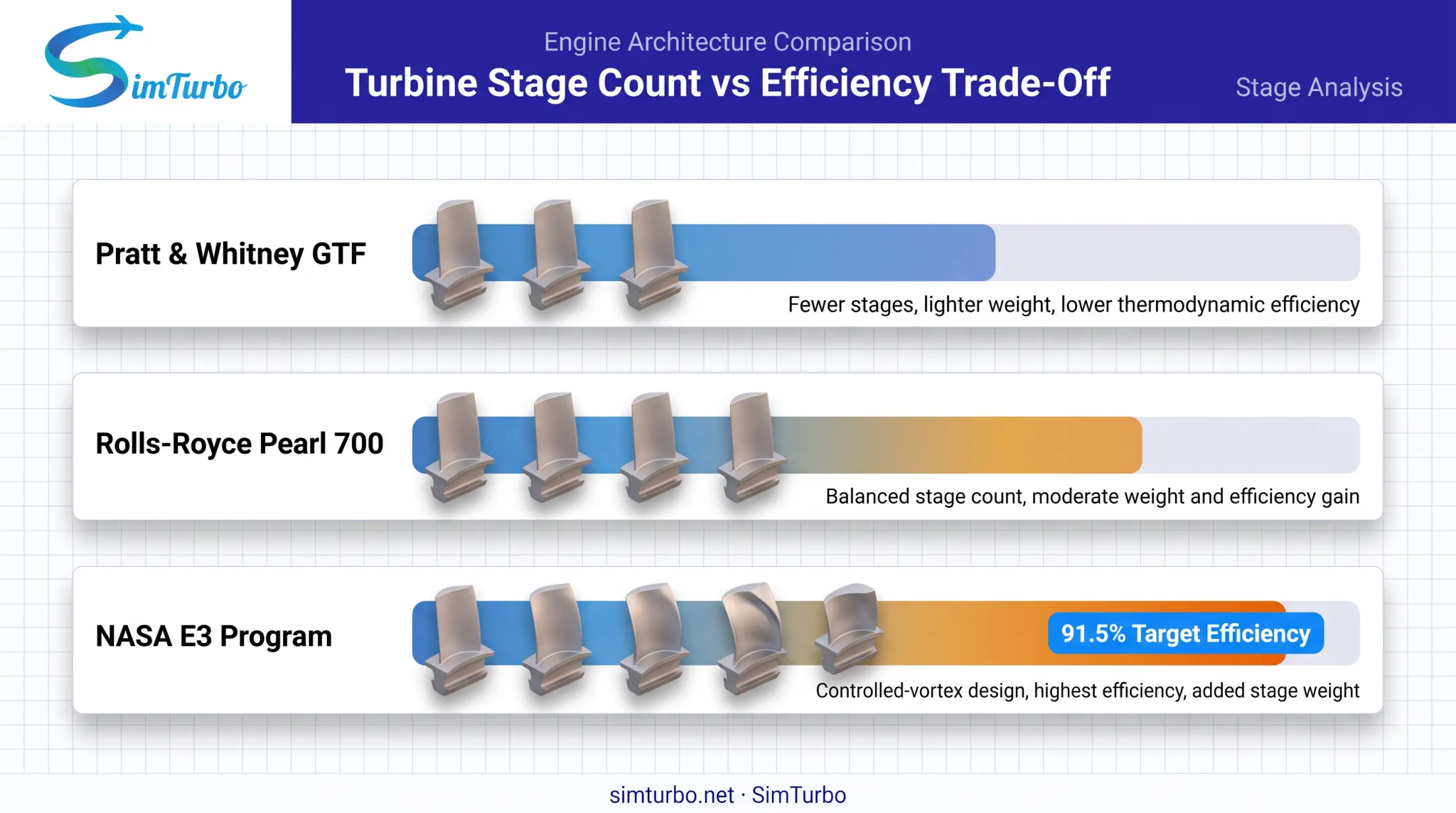

Fewer stages mean less weight and fewer parts, but each remaining stage has to work harder aerodynamically. This is the central trade-off in LPT design.
- Pratt & Whitney's GTF architecture uses a 3-stage LPT, up to four fewer stages than conventional turbofans, enabled by a gearbox that decouples fan speed from turbine speed
- Rolls-Royce's Pearl 700 uses a 4-stage LP turbine to enable higher fan power
- NASA's E3 program used a 5-stage, highly loaded, controlled-vortex LPT design targeting 91.5% efficiency at cruise conditions (NASA/GE E3 report)
NASA's variable-speed power turbine research directly compared 3-stage and 4-stage configurations: adding a stage improved predicted efficiency at the design work factor but added weight. The right stage count depends on the engine's mission, work factor, and weight budget.
Blade Geometry and Low-Reynolds Effects
Once stage count and loading are set, blade geometry has to deliver that work without excess loss. Profile design now centers on 3D airfoils. MTU's high-speed LPT for the GTF platform uses an aerodynamically optimized 3D airfoil designed specifically for the faster-spinning geared architecture.
One persistent challenge: Reynolds number strongly governs LPT blade performance. As Reynolds number drops (common at high altitude and low power settings), losses increase. NASA research found baseline losses fell rapidly above Re = 43,000 and stayed nearly flat between Re = 86,000 and 172,000, with boundary-layer trips helping reduce losses at low Reynolds conditions.

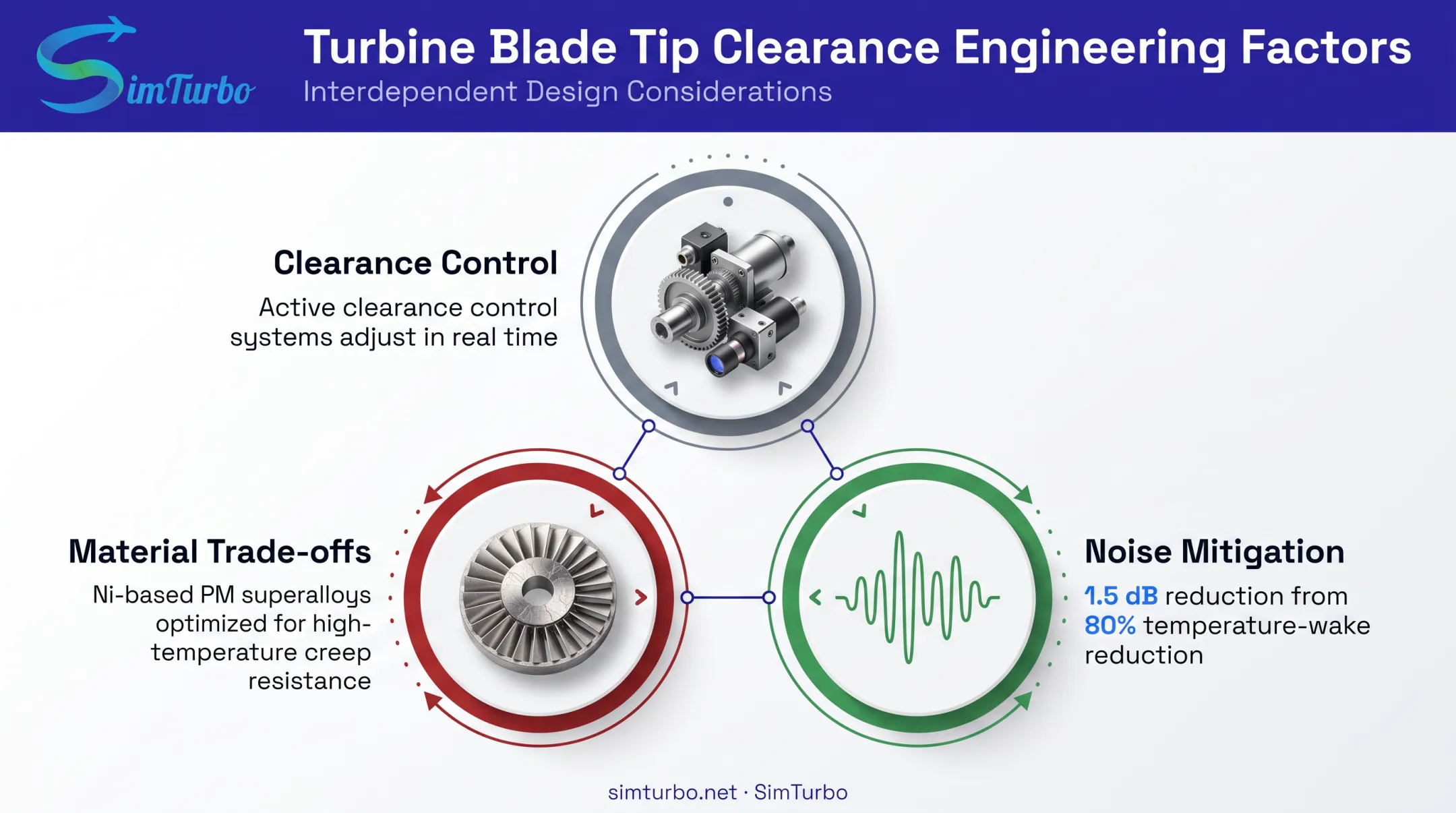

Clearance, Materials, and Noise
- Clearance control — thermal expansion changes the gap between rotating blades and stationary casings. Active clearance control systems use actuators and sensors to manage this gap in real time
- Material trade-offs — disk materials need creep and fatigue resistance; NASA's Ni-based PM superalloy approach for turbine disks improves creep life and raises allowable operating temperature
- Noise mitigation — LPT noise involves velocity, temperature, and pressure-field interactions. NASA modeling found that an 80% reduction in temperature-wake depth only reduced sound pressure level by 1.5 dB, so thermal-wake treatment alone will not fix noise
Each choice still has to clear manufacturing cost and maintenance burden. A more efficient blade that doubles machining cost rarely wins on total ownership.
High-Pressure Turbine vs. Low-Pressure Turbine: Key Differences
| Factor | HP Turbine | LP Turbine |
|---|---|---|
| Position | Immediately after combustor | Downstream of HPT |
| Drives | High-pressure compressor | LP compressor and fan |
| Thermal load | Endures the hottest gas temperatures | Operates on cooler, expanded gas |
| Stage count | Typically fewer stages | Often more stages (though geared designs shrink this) |
| Speed flexibility | Speed tied to HP compressor | Can run faster with a gearbox decoupling fan speed |
The HP turbine sits right behind the combustor and takes the brunt of extreme thermal loads, so its design priorities skew toward temperature resistance. The LP turbine works with cooler, lower-pressure gas across more stages and is optimized more for weight and cumulative efficiency.
Geared turbofans change that picture. The gearbox lets the LP compressor and turbine spin faster while the fan spins slower, so LP turbine designers get more aerodynamic freedom than in a traditional direct-drive architecture.
Modern Innovations and Challenges in LPT Design
High-Speed LPTs in Geared Architectures
The geared turbofan is the biggest structural shift in LPT design over the past decade. By decoupling fan speed from LP turbine speed, engineers can run the turbine faster, which reduces aerodynamic loading per stage and allows fewer stages overall. MTU calls its high-speed LPT a key GTF component, and the company's GTF Advantage variant adds a new gap-management system to tighten clearance control further.
Additive Manufacturing and Sealing

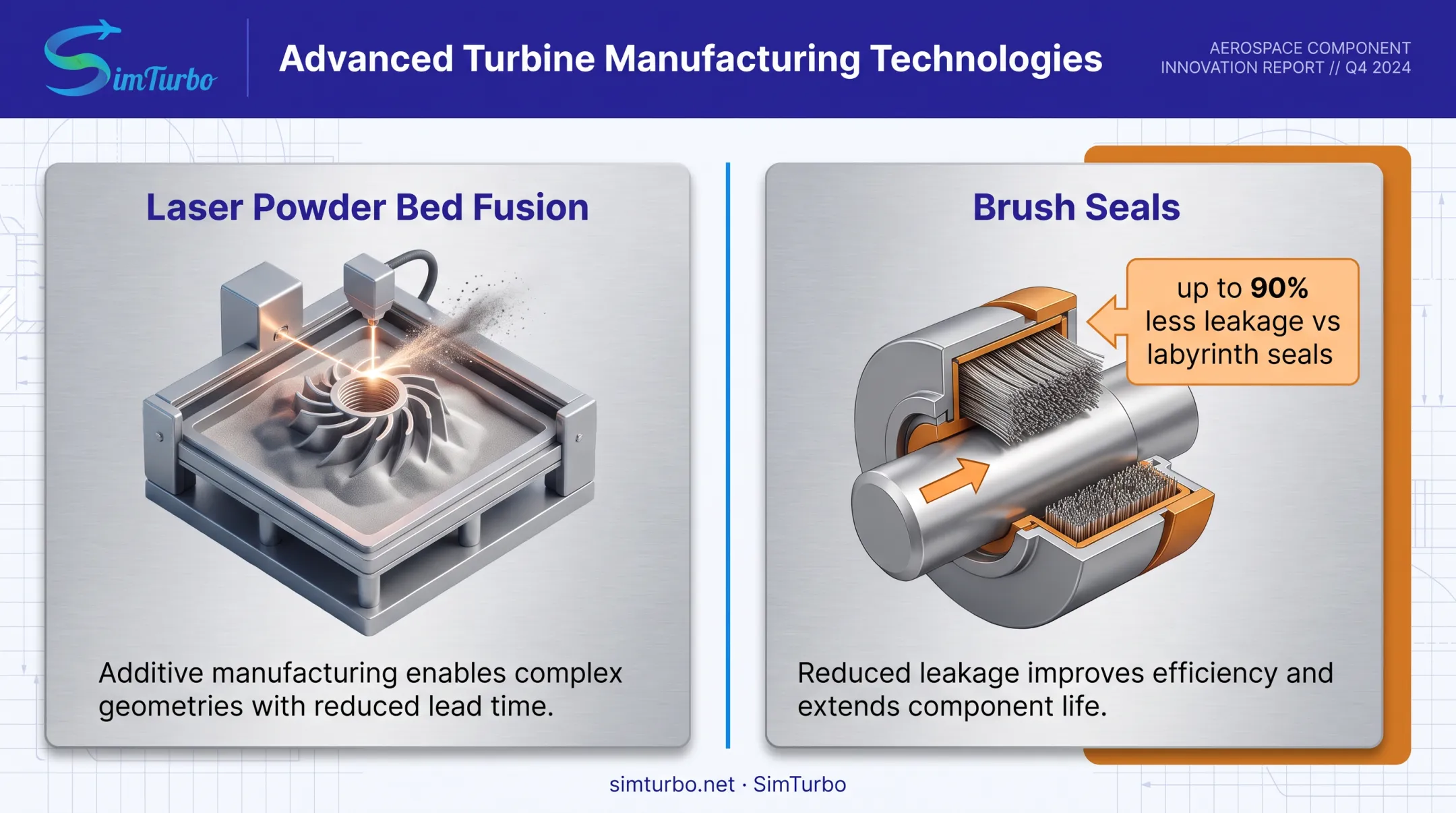

Two manufacturing shifts are reshaping LPT production:
- Laser powder bed fusion — MTU lists borescope bosses on the PW1100G-JM among the first LPT-related parts made industrially with selective laser melting.
- Brush seals — flexible, high-temperature seals that cut leakage by up to 90% versus labyrinth seals, lowering cooling-air losses in the LPT.
Materials Research
Single-crystal superalloys remain the benchmark for turbine blade material, with documented service history going back decades in commercial and military engines. Current NASA research has shifted focus toward disk alloys, where new powder-metallurgy approaches inhibit unwanted phase transformation and push the allowable operating temperature higher.
The core challenge hasn't changed: achieving simultaneous gains in efficiency, weight, noise, and cost without sacrificing durability. Every innovation still faces that four-way trade-off—and teams usually stress-test stage count, shaft speed, and clearance choices in simulation before locking hardware.
Simulating and Validating Low-Pressure Turbine Designs
Physical prototyping of low-pressure turbine changes is expensive and slow. Every geometry tweak, material swap, or control-logic revision traditionally meant new hardware, new test cells, and weeks of schedule risk. That pressure has pushed engineering teams toward component-based simulation as the first line of iteration.

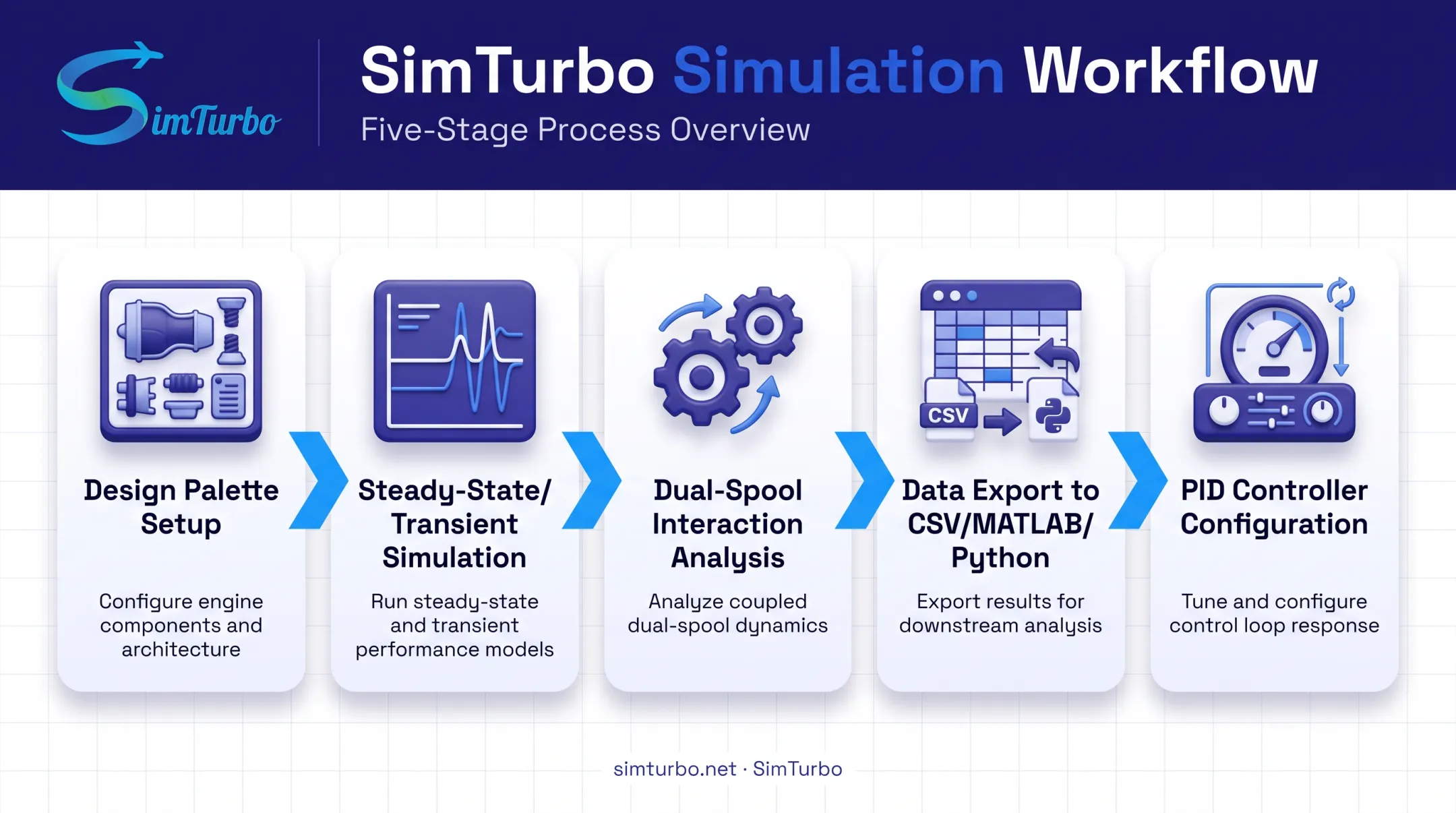

Modern simulation platforms let engineers model turbine, shaft, and compressor interactions together, rather than treating the engine as a black box. SimTurbo, a gas turbine simulation platform from Controls Research LLC, illustrates this approach:
- Re-parameterize turbines, compressors, shafts, and related elements on a design palette instead of a fixed model
- Run steady-state and transient simulation, including startup, slam-acceleration, throttle changes, and compressor surge
- Study dual-spool interaction so high-pressure and low-pressure spool behavior can be analyzed as coupled subsystems
- Export time-series data (RPM, EGT, thrust, SFC) to CSV and Excel, with MATLAB, Simulink, and Python workflows
- Configure PID controllers (speed, temperature, surge margin) for closed-loop control validation
Engine-level validation supports the approach. SimTurbo's J85-GE-21 single-spool turbojet simulation was benchmarked against NASA Lewis Research Center test data and came within ±2% for thrust, flow rate, temperature, and thrust-specific fuel consumption. That figure is an overall engine-model accuracy claim rather than an isolated LPT benchmark, but it shows the underlying solver can reproduce measured engine behavior closely.
For university programs, SimTurbo offers discounted student pricing and custom classroom/lab licensing. Students can experiment with turbine architecture and control logic without a physical test cell.
Frequently Asked Questions
What is a low-pressure turbine?
A low-pressure turbine is the turbine stage downstream of the high-pressure turbine. It extracts the remaining energy from combustion gases to drive the fan and low-pressure compressor in a turbofan engine.
What is the difference between a high-pressure turbine and a low-pressure turbine?
The HP turbine sits directly behind the combustor, enduring the hottest gas temperatures while driving the HP compressor. The LP turbine works downstream on cooler gas, typically across more stages, driving the fan and LP compressor.
How many stages does a typical low-pressure turbine have?
Stage count varies widely by engine type, ranging from 3 stages in geared turbofans to 5 in older, direct-drive designs. High-speed LPT technology in geared architectures generally allows fewer stages.
Why are low-pressure turbines important for fuel efficiency?
LPTs recover energy that would otherwise be wasted as exhaust heat and pressure, converting it into shaft work that drives the fan. That recovered energy directly reduces fuel burn per unit of thrust.
What materials are used in low-pressure turbine blades?
LPT blades typically use temperature-resistant nickel-based superalloys, including single-crystal alloys for fatigue resistance. Rotor disks use powder-metallurgy superalloys engineered for creep resistance at high operating temperatures.
How is simulation software used in low-pressure turbine design?
Simulation platforms like SimTurbo let engineers rapidly re-parameterize turbine components and run transient or steady-state tests before building physical hardware. This shortens design iteration cycles and helps validate control logic against benchmarked engine data.
