The Siemens SGT-800 is one of those machines. It's a mid-size industrial gas turbine used across combined-cycle and cogeneration plants worldwide, and it's become a reference point for engineers studying how modern turbines balance power, efficiency, and fuel flexibility.
Marketing pages will tell you it's powerful. Engineers and students want more: how the compressor stages interact with the combustor, what makes the turbine section durable, and how to actually simulate this kind of system.
This article covers the SGT-800's design, real performance numbers, where it's deployed, its hydrogen pathway, and how you can study similar turbine architectures through simulation.
Key Takeaways
- Evolved from ABB’s 1997 GTX100; delivers up to 62 MW in simple-cycle mode.
- Single-shaft, two-bearing layout: 15-stage compressor, annular DLE combustor, 3-stage turbine.
- Siemens cites 620 installations and more than 20 million operating hours worldwide.
- Hydrogen-ready now, with active projects running up to 30% hydrogen blends.
- SimTurbo lets engineers model comparable compressor-combustor-turbine architectures without hardware access.
What Is the Siemens SGT-800 Gas Turbine?
The SGT-800 didn't start life as a Siemens product. It began as ABB's GTX100, with development starting in 1994 and the turbine launching in 1997.
Alstom later acquired the industrial turbine business, and Siemens completed its purchase of Alstom's industrial gas turbine portfolio in 2003. That deal brought the medium gas-turbine line, including the Finspång, Sweden manufacturing base, under the Siemens name.
That lineage matters. The SGT-800 is an evolution of a platform refined for roughly three decades, not a clean-sheet Siemens design.
Siemens uses "SGT" as a prefix across its gas turbine product line, followed by a number that signals power class and generation. The SGT-800 sits in Siemens' mid-size segment, between smaller industrial units and heavy-duty utility-scale machines.
That matured platform also shows up in long-term service deals outside Europe. A 2016 agreement with Hangzhou Steam Turbine Co. created Siemens' first industrial-gas-turbine long-term service contract in China, covering two SGT-800 units with maintenance, spare parts, and remote diagnostics.
Where it fits in the market:
- Industrial power generation (utilities, IPPs)
- Oil & gas operations (onshore and offshore power/mechanical drive)
- District heating and cogeneration
- Distributed energy projects needing mid-size, packaged capacity

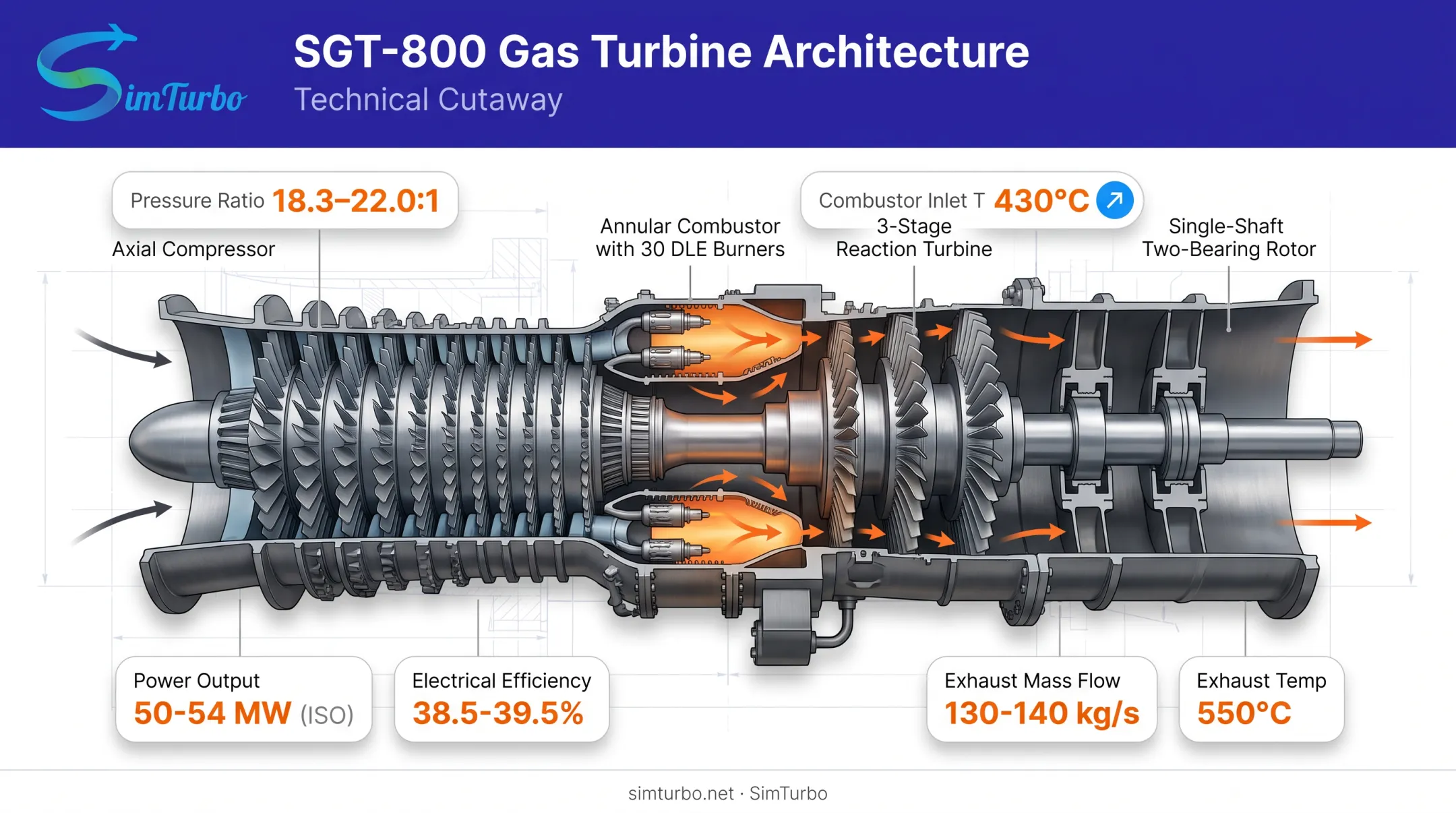

Core Engineering Design and Components
The SGT-800 uses a single-shaft, two-bearing rotor. That layout simplifies alignment and reduces maintenance complexity compared to multi-shaft arrangements.
Compressor and Combustor
The 15-stage axial-flow compressor is the front end of the gas path. Depending on the variant, pressure ratios range from 18.3:1 to 22.0:1. "20:1" is a fair shorthand, but not a fixed number across every configuration.
Air leaving the compressor at roughly 20 bar (290 psi) and 430°C (806°F) enters an annular combustion chamber fitted with 30 third-generation Dry Low Emission (DLE) burners. This design:
- Keeps NOx emissions in the 15-25 ppmvd range under standard conditions
- Maintains combustion stability during rapid load swings
- Tolerates fuel variability, including hydrogen and hydrocarbon blends
Turbine Section and Packaging
The 3-stage reaction turbine converts hot combustion gas into shaft power. Siemens has made repeated improvements to cooling in the annular combustor-to-turbine interface, including serial cooling passages and cast cooling struts in cold-section parts, extending component life under thermal cycling.
Siemens offers the SGT-800 in classic and single-lift configurations: the turbine, gearbox, and auxiliaries can be pre-assembled on a single base frame. That reduces field installation time significantly, which is why the turbine shows up so often in fast-track projects and outdoor plant deployments.
Performance Specifications and Efficiency
Siemens publishes ISO natural-gas ratings across five SGT-800 variants:
| Variant | Gross Output | Gross Efficiency | Exhaust Temp | Pressure Ratio |
|---|---|---|---|---|
| Highest rating | 62.5 MW(e) | 41.1% | 596°C | 21.1:1 |
| 57 MW class | 57.0 MW(e) | 40.1% | 565°C | 22.0:1 |
| 55 MW class | 55.6 MW(e) | 39.5% | 564°C | 22.0:1 |
| 50 MW class | 49.9 MW(e) | 39.4% | 560°C | 19.8:1 |
| 45 MW class | 45.3 MW(e) | 38.4% | 574°C | 18.3:1 |
Note these figures are gross, not net, an important distinction when comparing across manufacturers.
Why the exhaust temperature matters: At 560–596°C, exhaust gas carries enough thermal energy to drive a Heat Recovery Steam Generator (HRSG) effectively. Siemens' 2x1 combined-cycle configuration reaches up to 180 MW(e) with more than 60% net plant efficiency, well above any single simple-cycle turbine alone.
For a same-class reference, GE Vernova's LM6000 aeroderivative lists 56.9 MW net and 41.0% net efficiency in one ISO configuration. Because the SGT-800 headline figures are gross rather than net, use this as a power-class benchmark, not a direct efficiency ranking.
Real-World Applications and Hydrogen-Ready Future

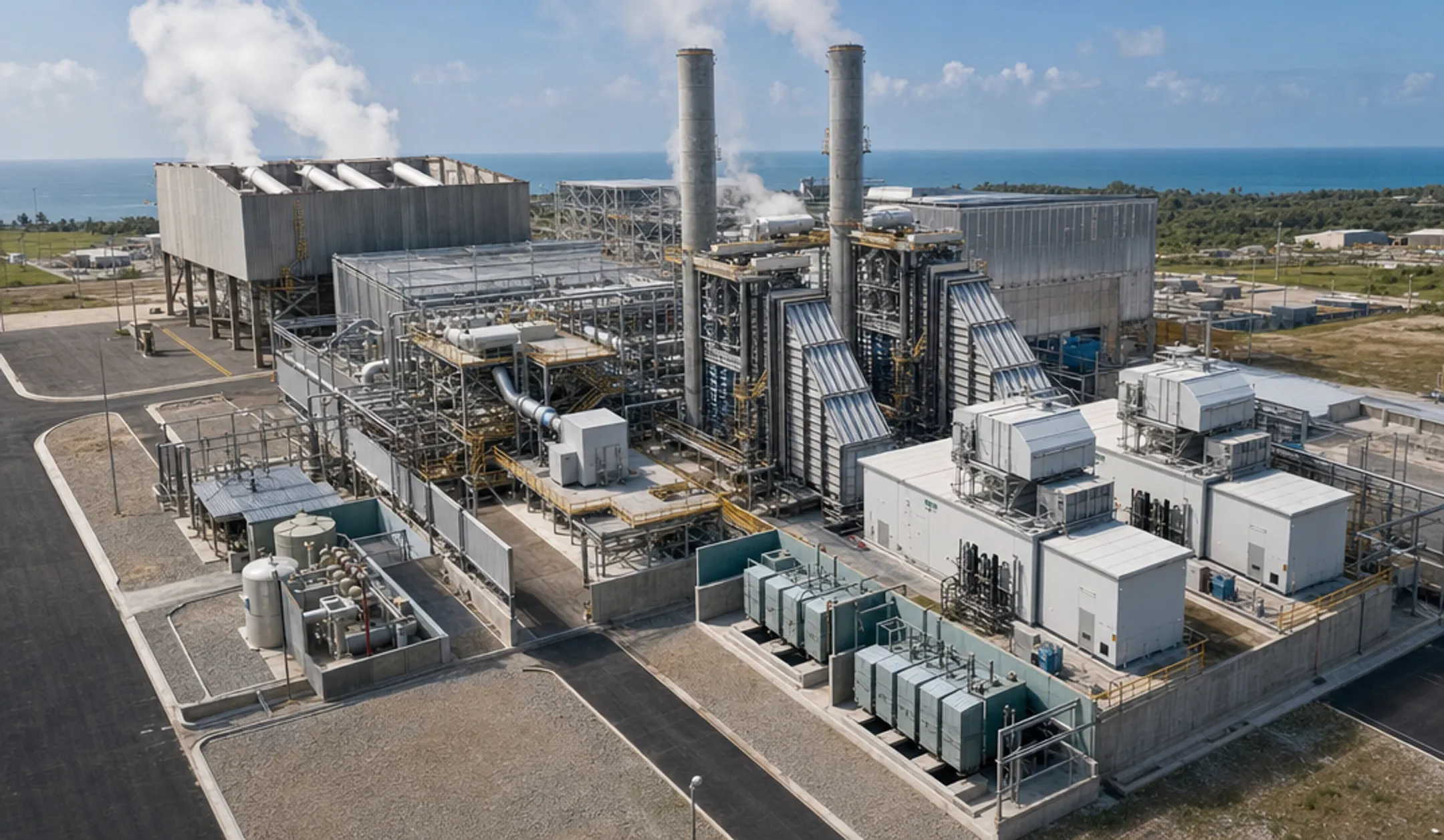

Where the SGT-800 Actually Runs
Beyond power utilities, the turbine shows up in:
- Combined-cycle plants serving national or regional grids
- Oil & gas facilities needing reliable mechanical drive or power
- District heating systems pairing electricity with thermal output
- Distributed energy projects requiring fast deployment
Panama case study: Siemens supplied six SGT-800 units for a combined-cycle plant near Colón, Panama. Paired with a steam turbine, the configuration was expected to reach roughly 440 MW, enough to serve demand equivalent to about 1.9 million residents.
The project ran on LNG and used single-lift packaging to speed construction. It shows how multiple mid-size units can scale to utility-level capacity while keeping dispatch flexibility on a grid that is adding more renewables.
Hydrogen Combustion Progress
Siemens states the SGT-800 platform can run on up to 75% hydrogen by volume. Live projects are more conservative: the Leipzig Süd project in Germany uses two 62 MW SGT-800 units on natural gas today, with up to 30% hydrogen blending capability and a defined path toward 100% hydrogen operation.
Siemens says it was the first company to receive TÜV certification for this hydrogen-ready SGT-800 concept.
Testing has gone further in controlled settings — all 30 DLE burners were tested with 30% and 50% hydrogen blends, with 75% sector testing planned, according to Gas Turbine World's coverage of hydrogen combustion development.
Technical challenges engineers still have to manage:
- Flashback risk — hydrogen's fast flame speed can push combustion back into the burner, requiring redesigned fuel injection
- NOx control — hydrogen combustion burns hotter, so maintaining emissions guarantees takes careful burner tuning
- Material compatibility — hydrogen embrittlement and fuel-system sealing require ongoing qualification work

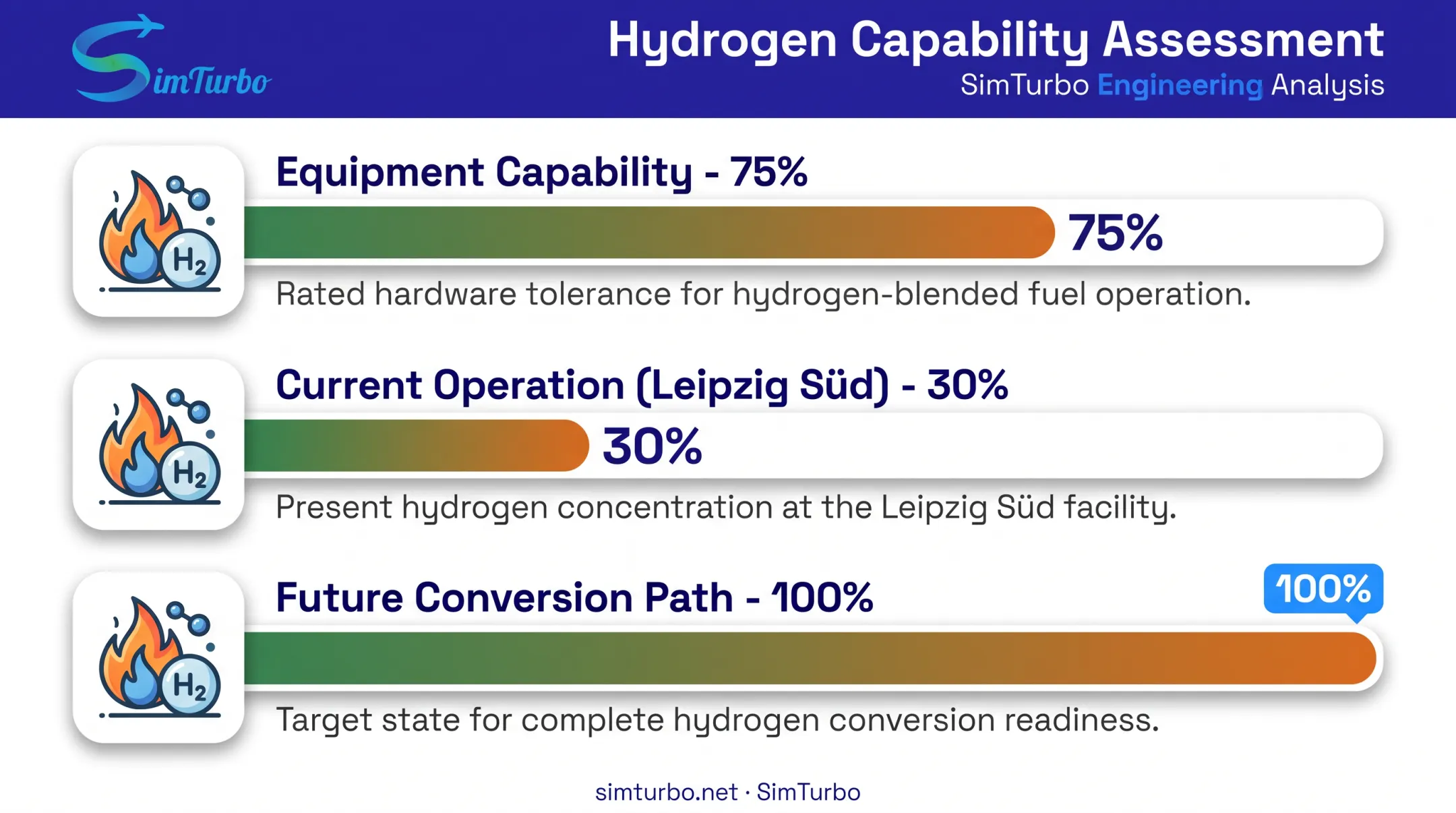

Keep the figures distinct: equipment capability (75%), current operation (30%), and a future conversion path (100%) are three separate claims, not one continuous number.
Learning and Simulating Gas Turbines Like the SGT-800
Reading a spec table only gets you so far. Understanding how a 15-stage compressor actually interacts with an annular combustor under a load transient? That requires modeling the system, not just reading about it.
This is where component-based simulation earns its place in an engineer's toolkit.

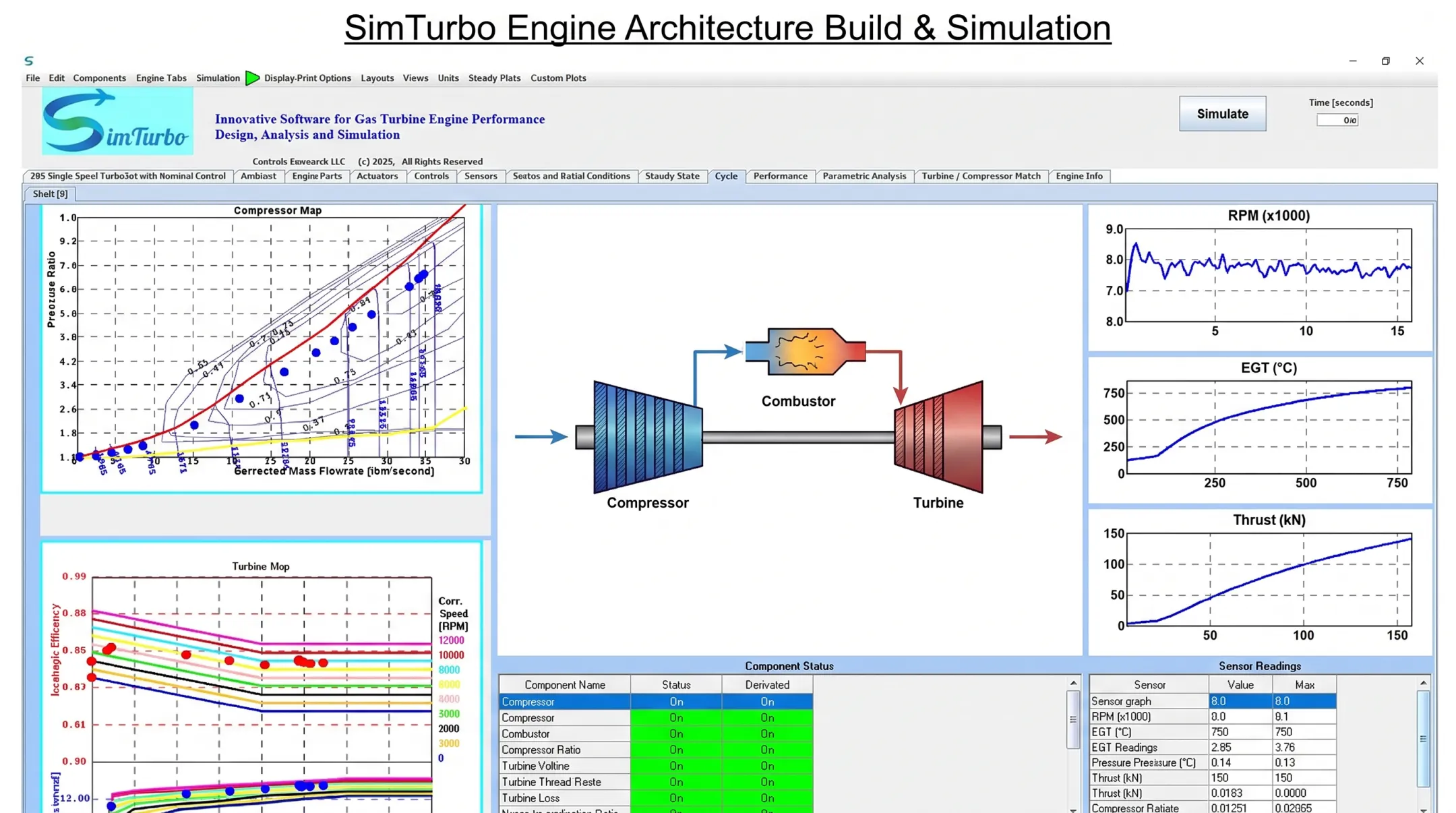

SimTurbo, built by Controls Research LLC, is a Windows-based gas turbine simulation platform that lets users construct engine architectures from individual components (compressors, combustors, turbines, shafts, and nozzles) rather than treating the whole engine as a black box. That mirrors the SGT-800's architecture: a single-shaft rotor with distinct compressor, combustor, and turbine sections working together.
What you can actually do with it:
- Build a compressor-combustor-turbine flow path and adjust component maps
- Run real-time transient simulations for startup, throttle changes, and load steps
- Export time-series data (RPM, EGT, thrust, SFC) to CSV or Excel for further analysis
- Test PID and FADEC control logic against simulated plant responses
- Model variable-geometry controls, similar to variable stator vanes used in real turbines
SimTurbo has been validated against NASA Lewis Research Center test data for the J85-GE-21 turbojet, with reported agreement within ±2% for thrust, flow rate, temperature, and TSFC.
The platform is used across aerospace, power-generation, and university settings. It fits capstone projects, propulsion coursework, and workforce training where physical turbine hardware isn't accessible.
If you want to build an engine architecture yourself, SimTurbo offers a free 30-day trial with full functionality.
Frequently Asked Questions
What is Siemens SGT?
"SGT" is Siemens' naming prefix for its gas turbine product line. The number that follows indicates the turbine's power class and generation within Siemens' broader portfolio.
What makes the SGT-800 different from other Siemens turbines?
It occupies Siemens' mid-size power class (roughly 45-62 MW), uses a DLE combustion system, and traces its lineage back to ABB's GTX100 design rather than a Siemens clean-sheet turbine.
How efficient is the SGT-800 in combined-cycle operation?
A 2x1 combined-cycle configuration reaches up to 180 MW(e) with more than 60% net plant efficiency, depending on the specific variant and plant configuration.
Can the SGT-800 run on hydrogen fuel?
Yes. Current projects like Leipzig Süd run up to 30% hydrogen blends today, with equipment rated for up to 75% capability and a defined path toward 100% hydrogen operation.
How can engineers learn gas turbine design without physical hardware?
Simulation platforms like SimTurbo let users build compressor-combustor-turbine architectures and run real-time transient tests entirely on a standard PC.
Where are SGT-800 turbines most commonly used?
Thailand has historically been the largest single market, with strong adoption across Asia-Pacific overall. Latin America is also notable, highlighted by the six-unit Panama combined-cycle project.
