That promise comes with a catch. RDEs are brutally hard to build and test. The detonation wave moves in microseconds, chamber conditions swing from 500K to 3,500K, and a single failed test can destroy hardware instantly. That's why modeling and simulation aren't a nice-to-have for RDE development. They're the only practical path forward.
This article walks through RDE fundamentals, the simulation methods engineers rely on, the toughest modeling challenges, where RDEs are headed in real-world applications, and how platforms like SimTurbo help engineers connect emerging combustion concepts to broader propulsion systems.
Key Takeaways
- RDEs deliver higher pressure gain and efficiency by using supersonic detonation waves instead of subsonic deflagration
- High-fidelity CFD, quasi-3D models, and kinetics solvers are essential when physical RDE testing is costly and dangerous
- Wave stability, extreme thermal gradients, and injector-combustor coupling drive most RDE modeling risk
- Automation tools now build complex RDE models in under 100 hours instead of thousands of hours
- Component-based platforms like SimTurbo let engineers validate control strategies across integrated propulsion systems
What Is a Rotating Detonation Engine?

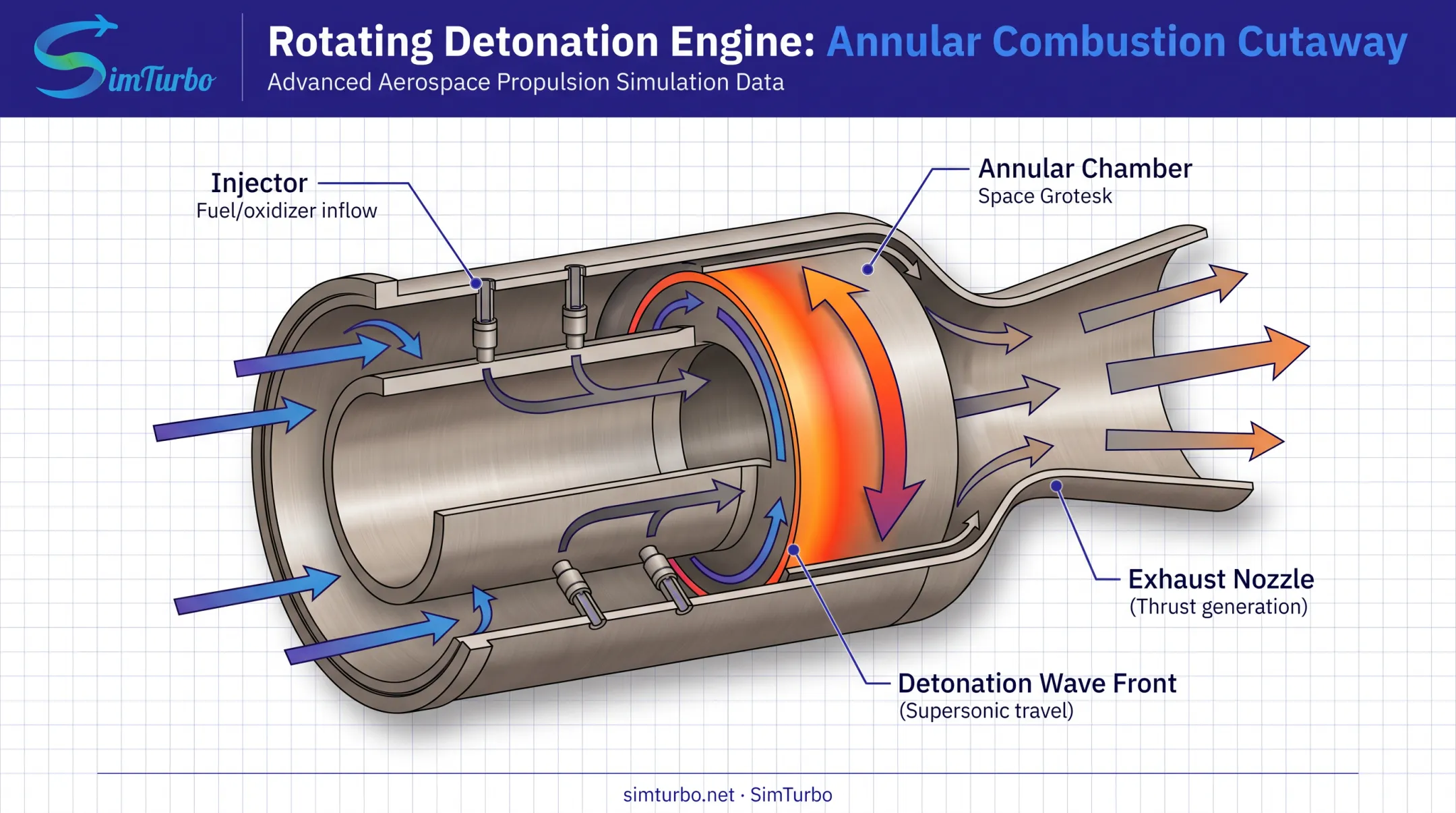

Picture two coaxial cylinders with a narrow annular gap between them. Fuel and oxidizer feed continuously into that gap. A detonation wave forms and travels circumferentially around the ring, and combustion products exit axially through a nozzle to generate thrust. That annular layout is the core configuration described by the Air Force Research Laboratory.
This is different from how a turbojet or turbofan burns fuel. Conventional engines rely on deflagration: a subsonic flame front that spreads relatively slowly through the fuel-air mixture. RDEs use detonation instead, a supersonic combustion wave that compresses and burns propellant almost instantly.
Why this matters for engine design:
- No moving parts inside the combustor itself
- Reduced fuel consumption through pressure-gain combustion
- Higher thermal efficiency versus deflagration-based systems
- Simpler maintenance than architectures that rely on rotating turbomachinery in the hot section
A 2024 peer-reviewed study in the Applications in Energy and Combustion Science confirms that rotating detonation engines can deliver pressure-gain combustion and higher thermodynamic efficiency than traditional deflagration combustors (Mundt, Knowlen and Kurosaka, 2024).
Why Simulation Is Non-Negotiable for RDE Development
Building a physical RDE prototype is expensive. Testing one is worse. The University of Michigan's Gas Dynamics Imaging Laboratory notes that measurements inside the detonation channel are difficult, sometimes impossible, because conditions are extreme and timescales run in microseconds.
Even major defense contractors lean heavily on simulation before hardware testing. RTX's Pratt & Whitney reported in March 2025 that its RDE testing simulated aggressive performance assumptions before validating key design elements in physical trials. That sequencing, simulate first, test second, is becoming the industry norm rather than the exception.
Core Modeling and Simulation Approaches for RDEs
Engineers use a layered toolkit depending on what question they're trying to answer.
High-fidelity 3D CFD resolves detonation wave propagation, shock dynamics, and chemical kinetics in full three-dimensional detail.
Researchers Peng and Deiterding solved multi-species compressible reactive Navier-Stokes equations with detailed chemistry for hydrogen-air RDEs, using adaptive mesh refinement across parallel processors. Their simulated velocity deficits stayed within 5% of the theoretical Chapman-Jouguet velocity.
The tradeoff? This level of fidelity typically demands supercomputing resources, even for simulation windows measured in milliseconds.
Faster Alternatives: Quasi-3D and Reduced-Order Modeling
A quasi-3D discretized flow-volume approach divides the annular chamber circumferentially and axially into thousands of interconnected control volumes, cutting compute time while holding useful engineering accuracy.
Gamma Technologies (GTI) reports building a quasi-3D RDE model with roughly 10,000 interconnected flow volumes using Python-based automation. The build finished in under 100 hours, versus the thousands of manual hours a full 3D CFD setup can take.
Other approaches include:
- Chemical kinetics solvers coupled to compressible, transient flow solvers to capture combustion chemistry alongside wave motion
- Reduced-order models (ROMs) using dynamic mode decomposition and Koopman embeddings for rapid parametric studies (Mendible et al., 2021)
- System-level models studying injection pressure, thrust variation, and limit-cycle operation for design trade studies
Case Study: Predicting Wave Count and Thrust Impact

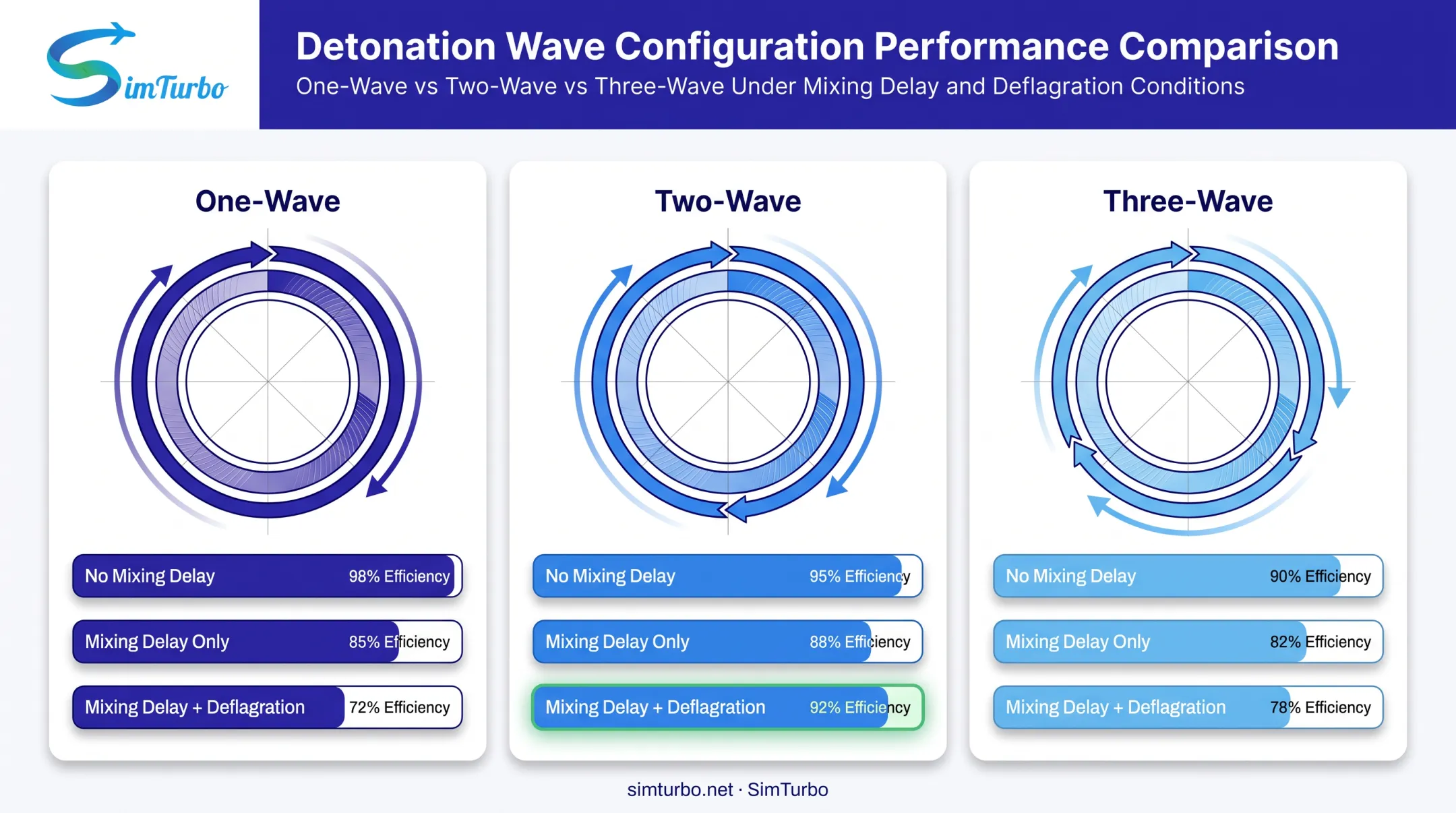

A 2023 NASA study used simplified 2D CFD to compare one-, two-, and three-wave detonation patterns under identical boundary conditions. The findings were counterintuitive:
- With no mixing delay and minimal deflagration, wave count barely affected performance
- With mixing delay added, performance dropped as wave number increased
- With both mixing delay and deflagration present, the two-wave case outperformed both single- and triple-wave configurations
A single rig test rarely maps that full wave-count space. Simulation lets engineers probe sensitivity across dozens of virtual configurations before cutting metal.
Key Challenges in RDE Modeling and Simulation
Four problems keep RDE modelers up at night.
Wave stability across conditions. A University of Michigan study on hydrogen-air rotating detonation combustors found single-wave operation shifting to two counter-rotating waves at around 320K to 360K inlet temperatures, depending on mass flux. Stoichiometric conditions showed no such transition. Predicting these mode switches reliably remains difficult.
Extreme thermal and pressure gradients. RDE chambers experience wide temperature swings within a compact annular geometry. GTI's visualization work uses a color scale spanning roughly 500K to 3,500K to represent this range, though that figure describes their specific rendering, not a universal operating spec.
DOE's NETL lab tested actual hydrogen-air combustors across equivalence ratios of 0.5 to 1.0 and inlet pressures up to 207 kPa. Stable operating temperatures still took 8 to 10 seconds to reach, even in short 15–30 second test runs.
Injector and nozzle coupling. A quasi-2D study published in the Journal of Propulsion and Power found that detonation backpressure creates an injector shock, causing stagnation-pressure loss that combustor pressure gain couldn't fully recover in the tested case. Imprecise fuel-air mixing at the injector isn't just a combustor problem; it's a system-integration problem.

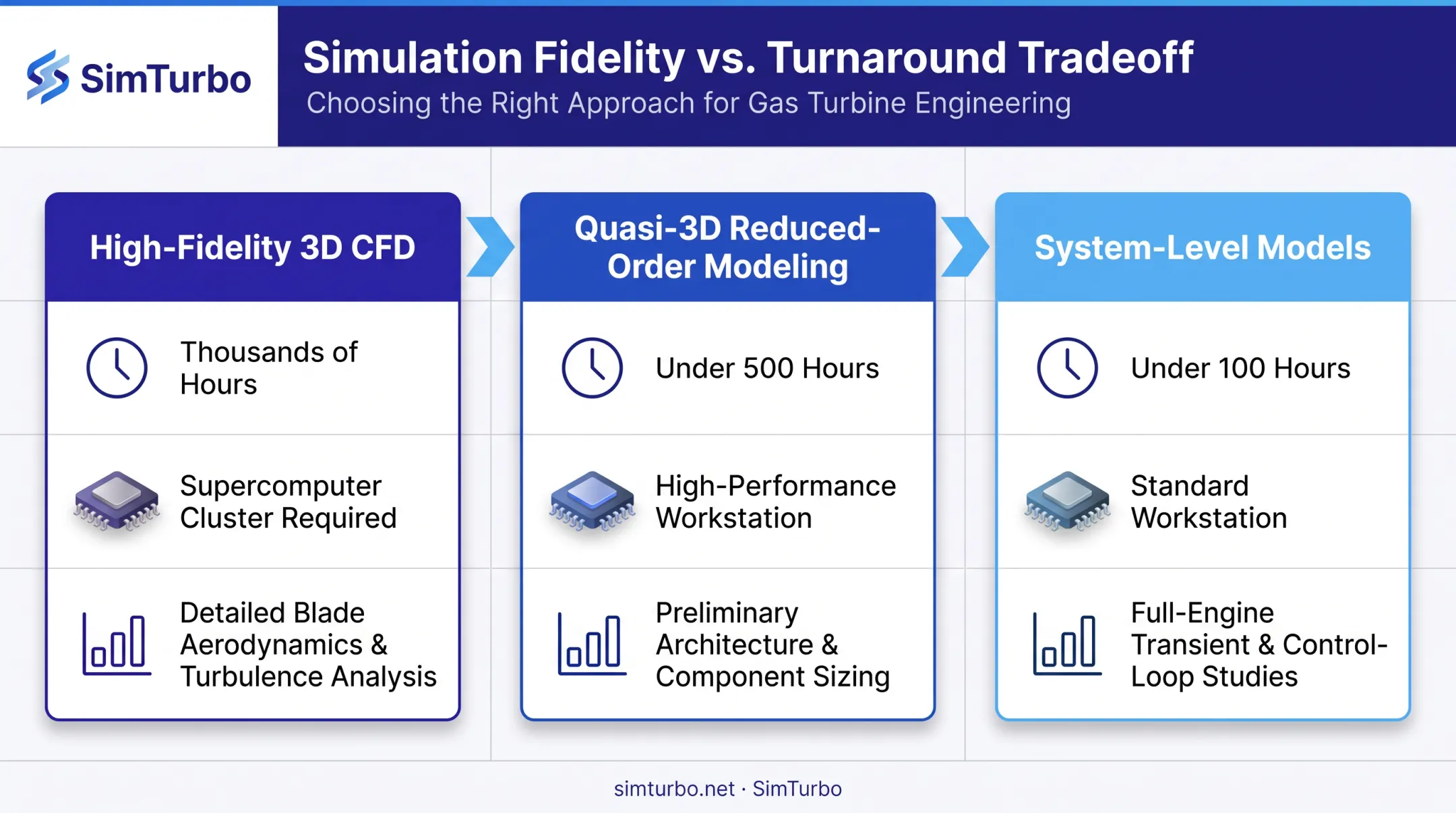

Fidelity versus turnaround time. Full 3D CFD gives you accuracy but eats weeks of compute time. Argonne National Laboratory and NETL are jointly targeting simulations at least 10x faster than today's high-fidelity CFD models, blending high-fidelity CFD with reduced-order chemistry and supercomputing resources.
Types and Real-World Applications of Rotating Detonation Engines
RDEs aren't a single design; they split into distinct configurations depending on the mission.
| Configuration | Core Principle | Primary Use Case |
|---|---|---|
| Rotating detonation ramjet | Air-breathing, detonation replaces conventional combustor | Hypersonic missiles |
| Rotating detonation turbine engine | Keeps fan, compressor, and nozzle; replaces the combustor | Next-gen jet propulsion |
| Rotating detonation rocket engine | Detonation-based thrust chamber | Space launch and boost |
Missile and defense propulsion carries the most near-term momentum. GE Aerospace and Lockheed Martin reported in January 2026 that direct-connect ground tests demonstrated a liquid-fueled rotating detonation ramjet under simulated cruise conditions for hypersonic missiles. DARPA's Gambit program, now marked complete, targeted standoff strike propulsion for fighter-launched systems.
Next-generation jet and rocket engines are advancing in parallel. NASA reported a 251-second hot-fire test of a 3D-printed rotating detonation rocket engine in fall 2023, producing more than 5,800 lb of thrust. Venus Aerospace reported a successful flight test of a ground-launched vehicle powered by an RDRE in May 2025.
Power generation is another active path. The Naval Research Laboratory has studied RDEs for Navy shipboard power, estimating potential fuel savings around 25% and annual cost savings in the $300-400M range. NRL labeled these projected, not confirmed, figures.
How Simulation Platforms Like SimTurbo Support Advanced Propulsion Development

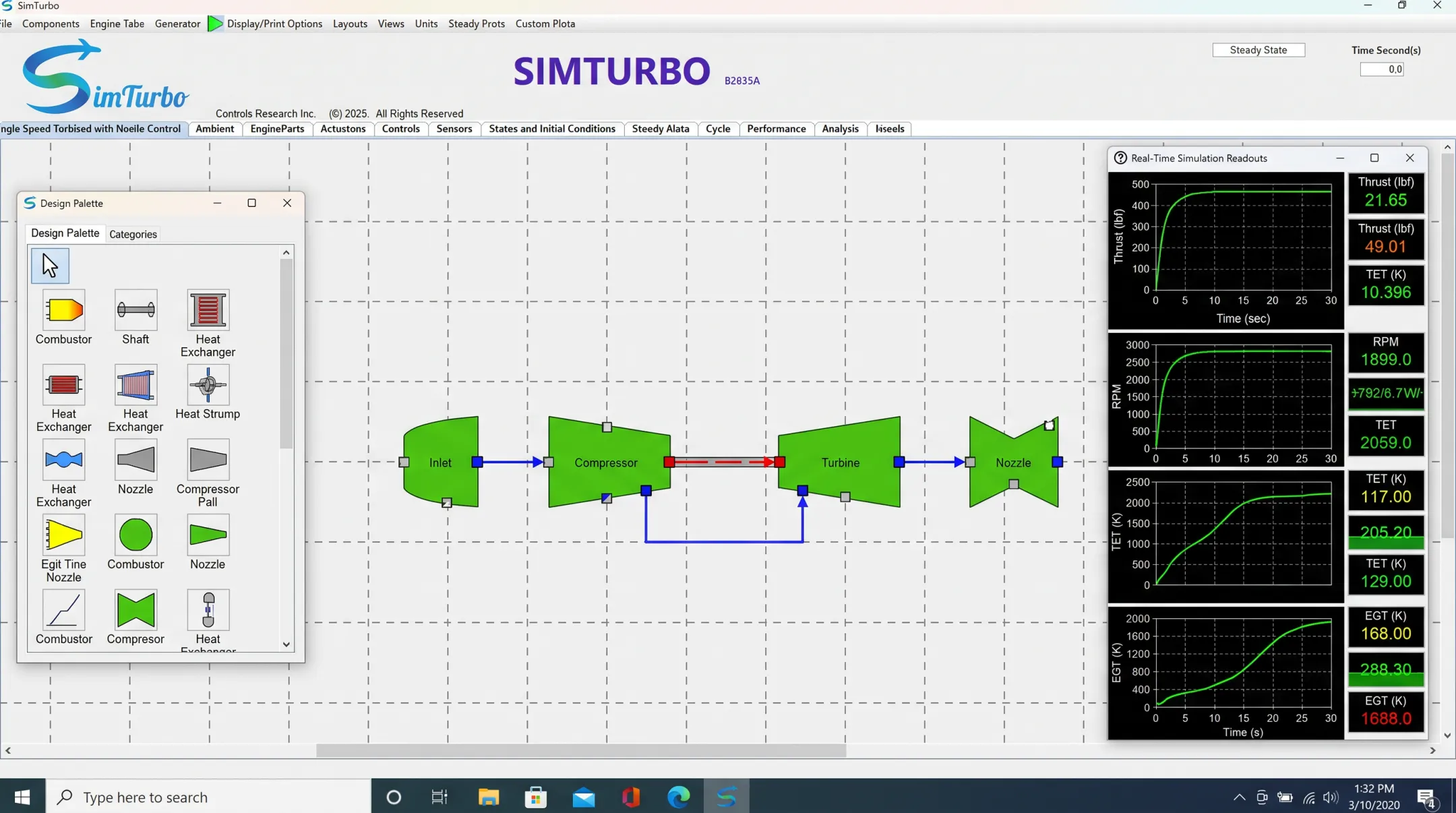

As RDEs move from isolated combustor research toward full propulsion systems, engineers need one environment that can model detonation-based combustors with standard gas turbine hardware. Inlets, compressors, turbines, nozzles, and shafts should sit in the same model—not across separate tools. SimTurbo, built by Controls Research LLC, uses a drag-and-drop, component-based architecture. Engineers place and connect parts instead of treating the engine as a black box. Real-time simulation runs on a standard PC and has been validated within ±2% of NASA Lewis Research Center test data for the J85-GE-21 single-spool turbojet, covering thrust, flow rate, temperature, and fuel consumption. For teams studying how a detonation-based combustor might integrate with turbine-driven systems, SimTurbo offers these advantages:
- Validate control laws with built-in PID and FADEC logic, and export plant responses to external controllers
- Reconfigure engine architecture on an open design palette for virtual prototyping
- Export results to CSV and Excel, with documented paths into MATLAB/Simulink and Python
- Access educational licensing for universities, capstone teams, and research labs SimTurbo does not currently include a dedicated detonation-physics solver or an RDE-specific validation case. What it does provide is a real-time, system-level environment where surrounding architecture—compressors, turbines, and control logic—can be modeled and tested while detonation combustor research continues in parallel. For engineers and students mapping an emerging combustion concept into a broader engine system, that system-level view fills a real gap.
Frequently Asked Questions
What are the applications of rotating detonation engines?
RDEs target military missile propulsion, next-generation jet and rocket engines, and power-generation turbines. Defense programs are furthest along, with ground and direct-connect testing underway for hypersonic missile applications.
What are the main types of rotating detonation engines?
Rotating detonation ramjets are air-breathing systems built for missile propulsion. Rotating detonation turbine engines keep conventional fan and compressor hardware but swap the combustor for a detonation-based design aimed at jet propulsion.
Why is simulation preferred over physical testing for RDE development?
Physical RDE prototypes are expensive, hard to instrument, and prone to failure under extreme thermal and pressure loads. Simulation lets engineers iterate through design variations safely and far faster than building hardware each time.
What makes RDE simulation more complex than traditional engine simulation?
RDE simulation must capture supersonic detonation wave dynamics, extreme thermal gradients spanning thousands of degrees, and chemical kinetics coupled with compressible flow, all within a compact annular geometry.
Can existing simulation software model rotating detonation engines?
Specialized multiphysics solvers with chemical kinetics and automation can build RDE models. General-purpose gas turbine platforms typically need dedicated detonation-physics modules to do the same.
How close are rotating detonation engines to real-world deployment?
RDEs have reached hot-fire and ground-test milestones, including a 2023 NASA rocket engine test and a 2025 Venus Aerospace flight test. Pratt & Whitney remains in discussions with weapons manufacturers on flight testing, so broad operational deployment is still ahead.
