That's roughly 57% of natural gas capacity running on a technology many engineers only understand at a surface level. The gas turbine and steam turbine don't just sit side by side. They're thermodynamically linked, and misunderstanding that link leads to real design and control mistakes.
This guide walks through exactly how a CCGT plant works, stage by stage, from air intake to steam condensation.
TL;DR
- CCGT plants pair a gas turbine (Brayton cycle) with a steam turbine (Rankine cycle) to extract more energy from the same fuel
- A Heat Recovery Steam Generator (HRSG) captures gas turbine exhaust heat and converts it to steam
- Recovered exhaust heat drives the steam cycle, lifting plant efficiency far above simple-cycle units
- Most U.S. plants use a 2x1 multi-shaft configuration
- Simulation tools let engineers probe startup and load-change transients before touching hardware
What Is a Combined Cycle Gas Turbine Plant?
A CCGT plant pairs a gas turbine cycle with a steam turbine cycle inside one facility to convert more of the fuel's energy into electricity. Standalone gas turbines (simple-cycle, or OCGT) burn fuel, spin a generator, and vent the leftover exhaust heat straight into the atmosphere. That's wasted energy.
CCGT design captures that waste heat and puts it to work generating additional power, without burning any extra fuel. Unlike a simple-cycle plant that uses only the gas turbine, a CCGT plant always combines both cycles. The physical layout is not fixed; plants are built in several configurations.
Common configuration types include:
- 1x1: one gas turbine, one steam turbine
- 2x1: two gas turbines, one steam turbine (most common in the U.S.)
- 3x1: three gas turbines, one steam turbine, as seen in some Siemens installations
Regardless of configuration, the underlying process principle stays identical: burn fuel, recover exhaust heat, generate steam, produce more power.
How Does a CCGT Power Plant Work?

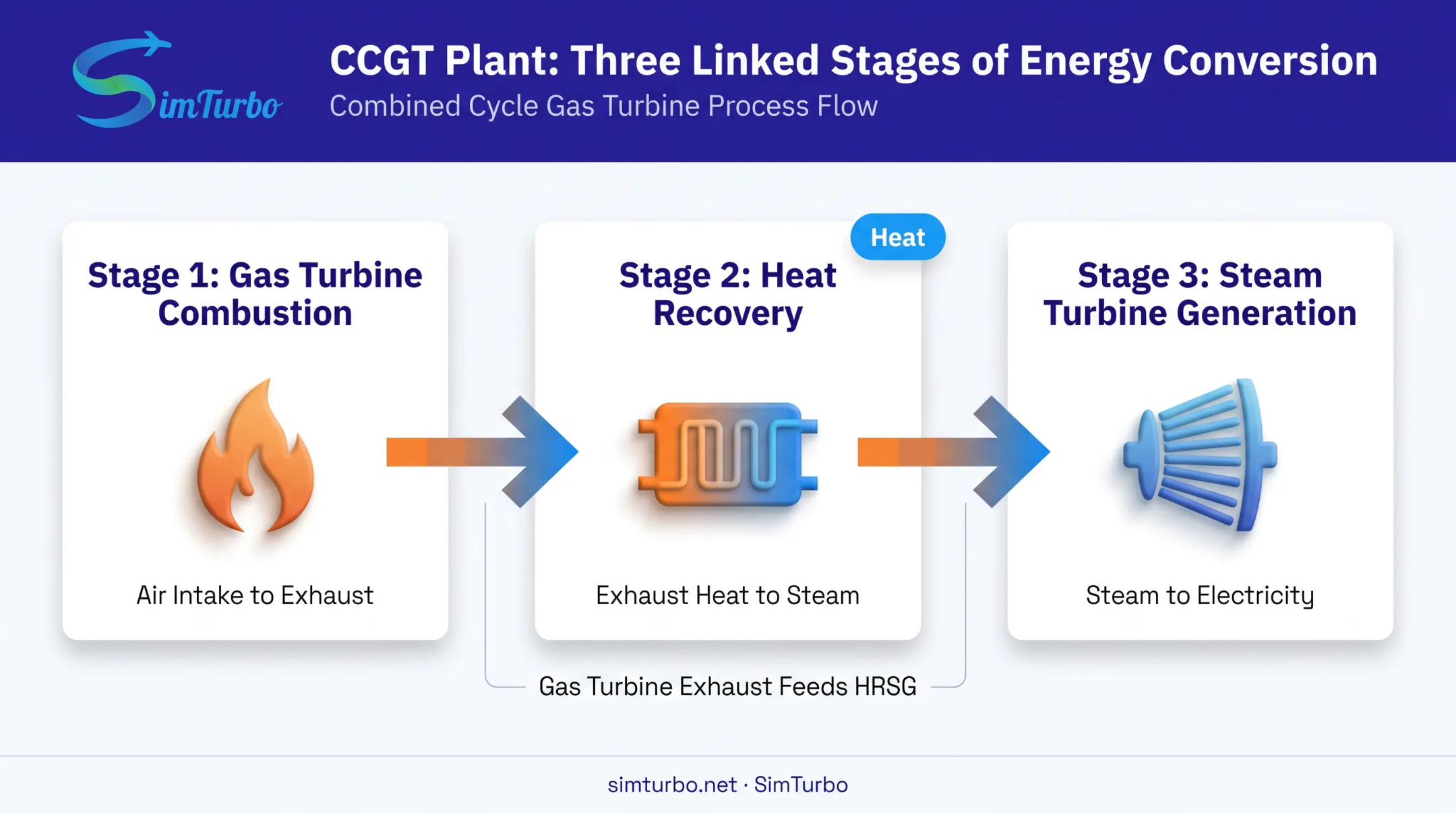

A CCGT plant runs in three linked stages: gas-turbine combustion, heat recovery, and steam-driven generation. Output from each stage becomes the input for the next.
Stage 1: Gas Turbine Combustion (Initiation)
Air enters the plant, gets filtered, and is compressed before mixing with natural gas inside the combustion chamber. Ignition follows immediately.
This stage runs continuously and automatically. Fuel valves and turbine inlet guide vanes respond in real time to load demand, adjusting airflow and fuel input as grid needs shift.
Combustion temperatures reach extreme levels. GE's firing-temperature classes for its F-series turbines range from 2,420°F (7FA) up to 2,600°F (7H), according to GE's GER-4194 technical reference. These temperatures drive strict requirements around:
- Blade material selection (single-crystal alloys in advanced models)
- Thermal-barrier coatings
- Film cooling systems on buckets and nozzles
Stage 2: Heat Recovery (Core Operation)
Exhaust gas leaving the gas turbine still carries substantial thermal energy. That gas routes directly into the Heat Recovery Steam Generator (HRSG) — the point where the "combined" in combined cycle takes shape.

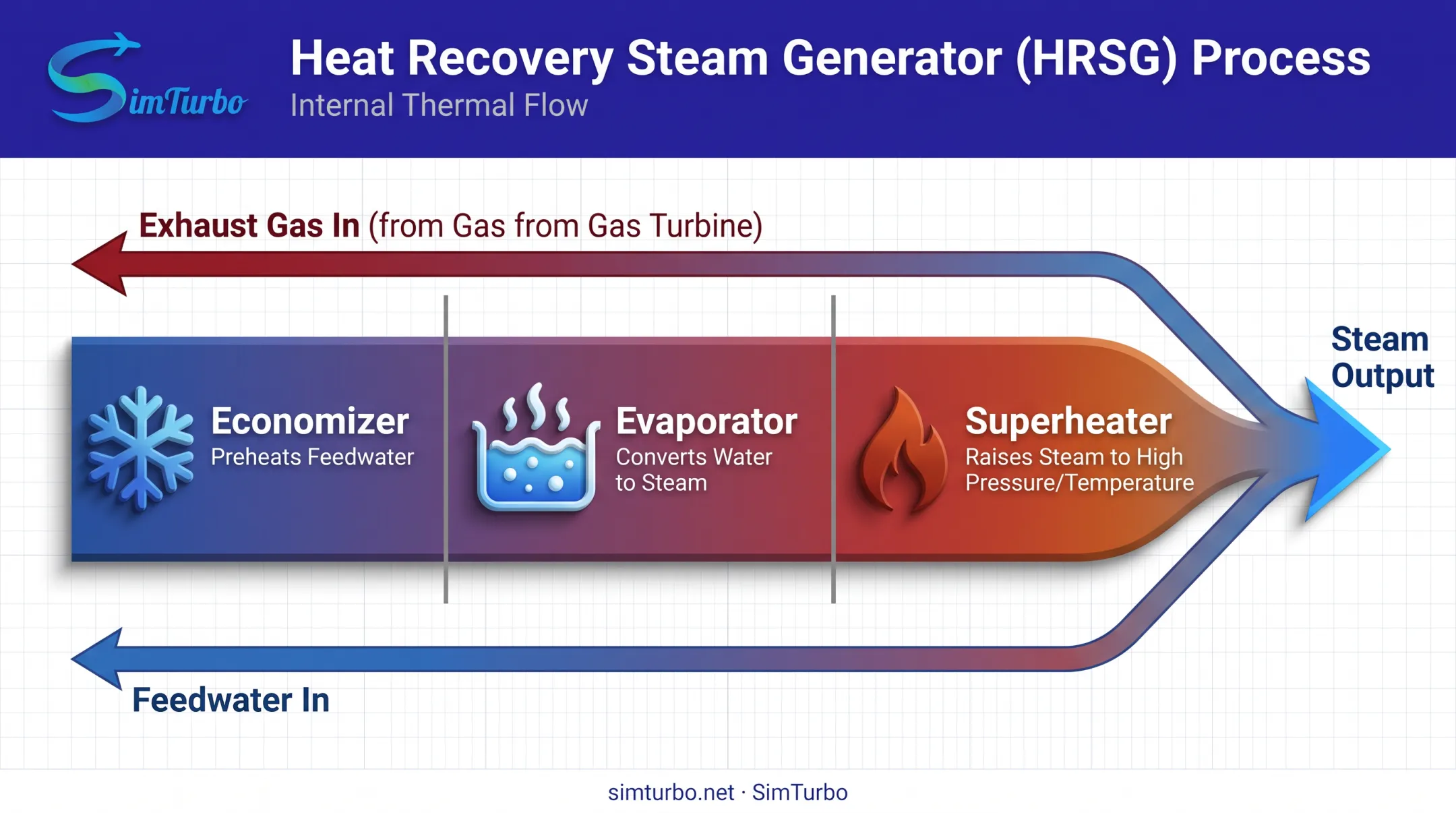

The HRSG processes feedwater through three sections:
- Economizer: preheats incoming water at a lower temperature than downstream sections
- Evaporator: converts preheated water into steam
- Superheater: raises steam to high pressure and temperature for turbine expansion
The more heat the HRSG recovers from exhaust gas, the more steam it produces, and the more electricity the steam cycle generates. This is the direct performance link between the two cycles.
Stage 3: Steam Turbine Generation (Output)
High-pressure steam from the HRSG expands through a steam turbine, spinning a second generator. Once the steam gives up its energy, it exits the turbine, condenses back into water, and returns to the HRSG to repeat the cycle.

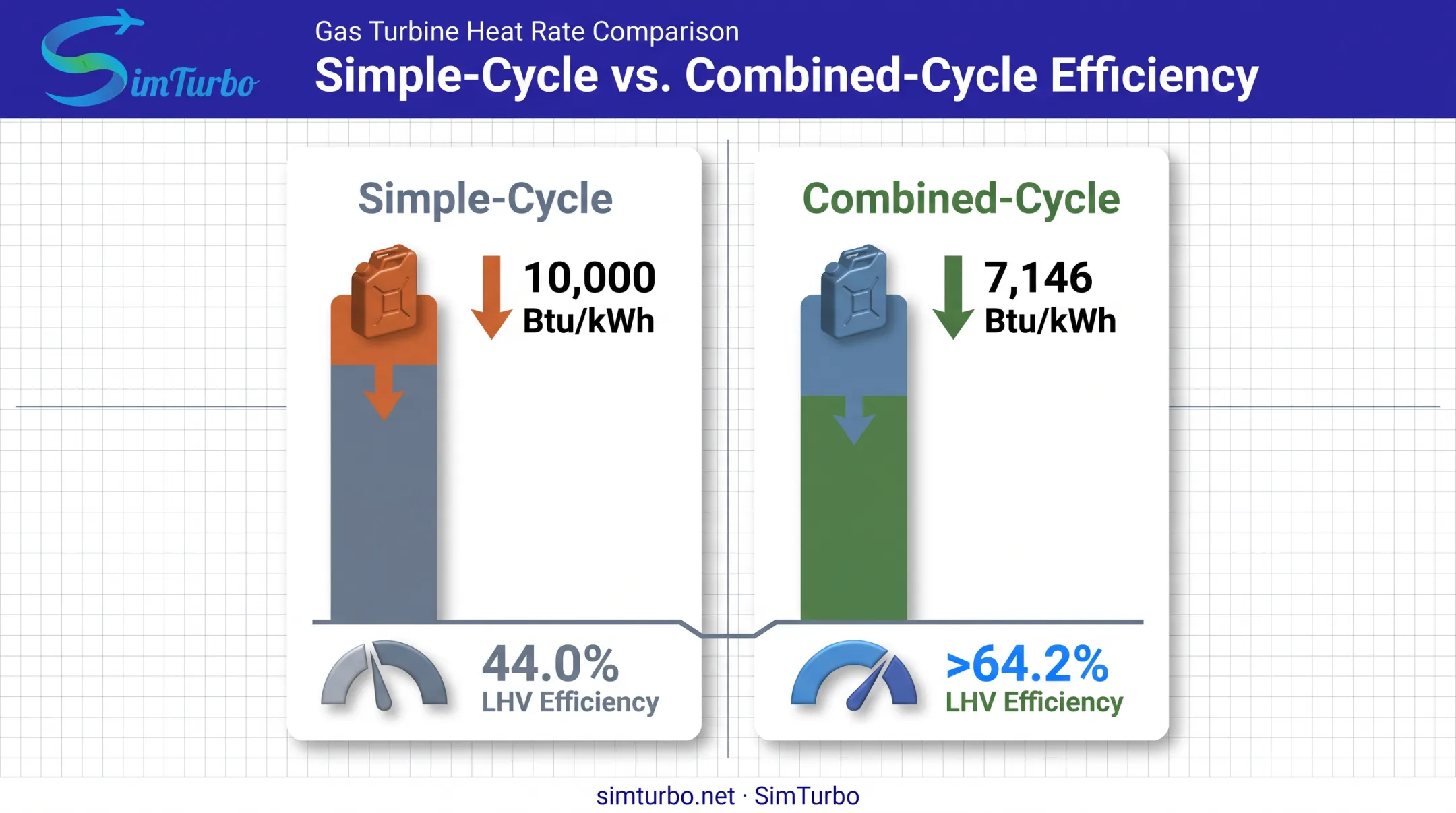

Recovering that residual heat is what cuts fuel burned per kilowatt-hour. EIA reports a U.S. fleet operating heat rate of 7,146 Btu/kWh for CCGT plants versus about 10,000 Btu/kWh for simple-cycle units, so CCGT plants use noticeably less fuel per unit of electricity produced (EIA).
| Metric | Simple-cycle | Combined-cycle |
|---|---|---|
| U.S. fleet heat rate (EIA) | ~10,000 Btu/kWh | 7,146 Btu/kWh |
| M501JAC LHV efficiency (OEM) | 44.0% | >64.2% (2x1) |
OEM design ratings track the same gap: Mitsubishi's M501JAC moves from 44.0% LHV in simple-cycle mode to greater than 64.2% LHV in a 2x1 combined-cycle configuration.
Regulation and Control
Running two turbines off one fuel source demands tight coordination. Control systems continuously monitor temperature, pressure, and flow across both cycles to keep operation safe and efficient.
Two primary part-load control strategies exist:
- Inlet-guide-vane (IGV) control: reduces compressor airflow while holding turbine inlet temperature nearly constant
- Fuel control at constant airflow: reduces turbine inlet and outlet temperature directly
Research published in ASME's Journal of Engineering for Gas Turbines and Power found IGV control generally preferred for part-load CCGT efficiency. The Rankine-cycle gain outweighs the small efficiency loss on the gas-turbine side.
Load-following logic and PID-based controllers handle the moment-to-moment adjustments, balancing fuel flow and steam bypass as grid demand shifts. Poor control tuning here isn't a minor issue. It can cause efficiency losses, added thermal stress on components, or unplanned trip events during load swings.
Plant Configurations and Reliability

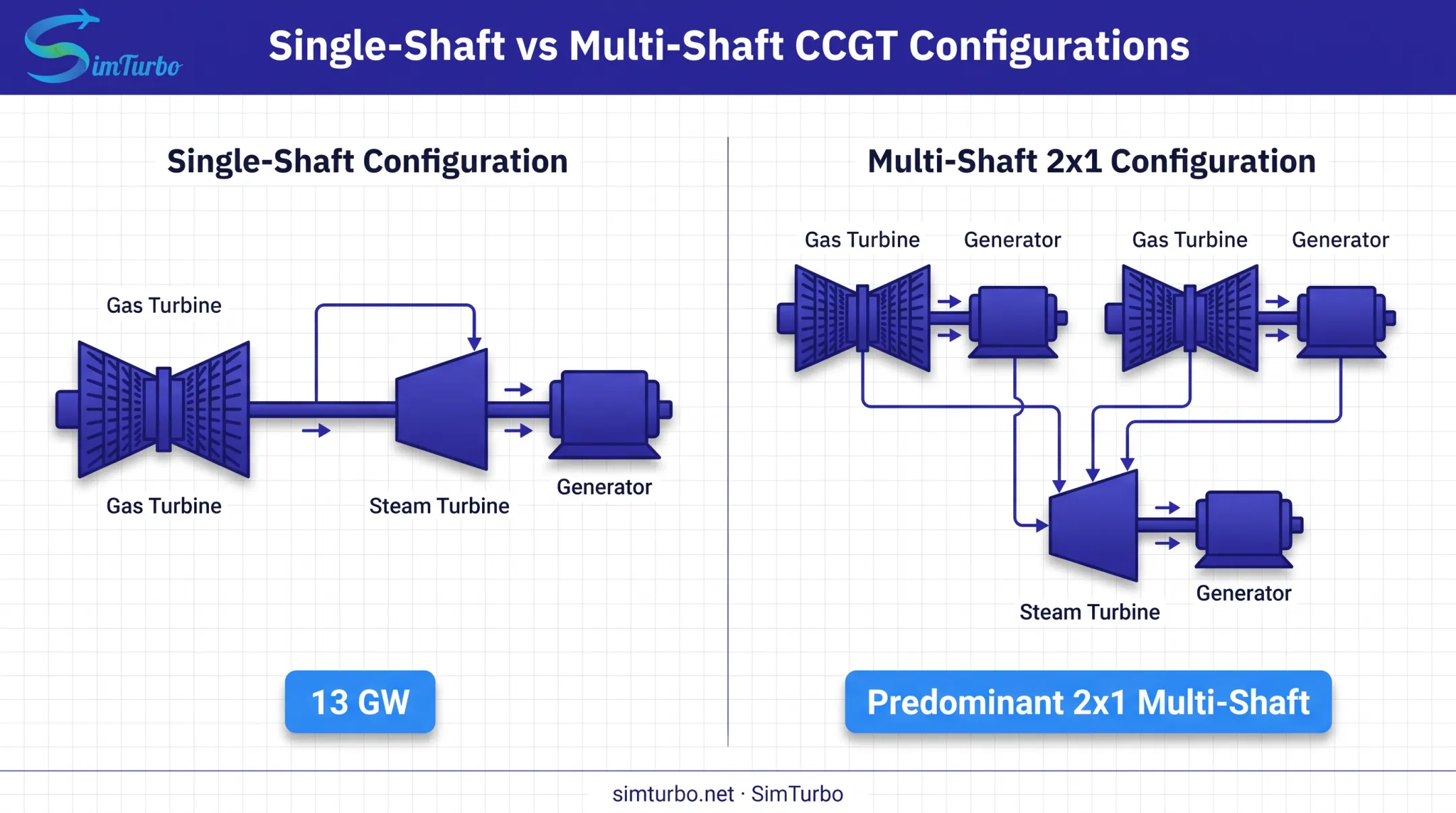

CCGT plants use two main shaft arrangements:
- Single-shaft: Gas turbine and steam turbine share one shaft and drive a single generator
- Multi-shaft: Each turbine has its own shaft and dedicated generator
Most U.S. CCGT capacity runs multi-shaft, specifically in a 2x1 layout: two gas turbines feeding one steam turbine. EIA notes this as the predominant U.S. configuration, and average 2x1 power-block size grew from 500 MW for plants built before 2015 to over 700 MW for those built after.
Single-shaft plants still matter at scale. EIA reports 13 GW of U.S. CCGT capacity using this arrangement, valued for fewer electrical connections and reduced balance-of-plant equipment.
Beyond layout choice, reliability depends on the turbines in service. Maintenance intervals and service life vary by model and operating profile; no single number applies across the fleet. Operators typically follow OEM-specific inspection schedules tied to operating hours and starts.
Where CCGT Plants Fit in Power Generation
CCGT plants primarily cover base and intermediate grid loads, thanks to their high efficiency and stable operation under sustained output. EIA reported a 56% national CCGT capacity factor in 2022, compared to roughly 13% for simple-cycle units. That gap shows how much more often combined-cycle plants stay online.
CCGT performs best under:
- Consistent, reliable fuel supply
- Moderate ambient temperatures
- Grid conditions that reward flexible ramping over peak-only cycling
Capacity factors also vary by region. They exceeded 60% in SERC and PJM in 2022, but sat closer to 41% in ISO-NE and SPP.
Beyond utility-scale grid power, combined-cycle principles extend into marine propulsion (COGAS) and industrial cogeneration. In those settings, waste heat recovery serves onboard power or process heat rather than grid delivery.
Designing and Validating CCGT Systems Before They're Built
Building a CCGT plant — or modifying control logic on an existing one — carries real cost and risk if assumptions turn out wrong. Engineers use simulation first so those assumptions get tested before hardware or control changes are locked in.
Real-time simulation lets you visualize transient behavior: startup sequences, sudden load changes, control response under stress. All without risking an actual turbine.
SimTurbo, from Controls Research LLC, is a component-based gas turbine simulation platform built for this work. Engineers model compressors, combustors, turbines, and nozzles, then add control logic — PID controllers, limiters, and sensor feedback — to test performance assumptions before touching physical equipment.
On the control side, SimTurbo's building blocks include:
- Speed PID loops for shaft-speed regulation
- Temperature PID loops for thermal limit control
- Surge-margin PID monitoring for compressor stability
These primitives support closed-loop studies for load-following scenarios. CCGT-specific elements such as HRSG pressure control or gas-turbine/steam-turbine load sharing still need dedicated modeling outside the current platform.
Once a simulation runs, results export to tools like MATLAB/Simulink or Excel for post-processing and control-law validation.
That workflow is strongest on the gas-turbine (Brayton cycle) side of a CCGT system. SimTurbo's steady-state analysis covers:
- Compressor and turbine maps
- Component and cycle efficiency
- Off-design operating points
Frequently Asked Questions
What is a combined-cycle gas turbine power plant?
A CCGT plant pairs a gas turbine and steam turbine to extract more electricity from the same amount of fuel. The gas turbine's exhaust heat, instead of being wasted, generates steam that drives a second turbine.
What is the difference between simple-cycle (OCGT) and combined-cycle (CCGT) gas turbines?
OCGT plants vent exhaust heat unused after the gas turbine finishes its work. CCGT plants recover that heat through an HRSG and use it to generate additional electricity via a steam turbine.
What are the stages of operation in a gas turbine?
A gas turbine cycles through intake and compression, combustion, expansion through the turbine, and exhaust. In a CCGT plant, that exhaust becomes the input for the steam cycle.
How efficient is a combined-cycle gas turbine?
U.S. fleet data shows CCGT plants operating at roughly 7,146 Btu/kWh versus about 10,000 Btu/kWh for simple-cycle plants. OEM ratings for advanced units, such as Mitsubishi's M501JAC, report combined-cycle efficiency above 64% LHV.
What is the difference between a single-shaft and a multi-shaft combined-cycle power plant?
Single-shaft plants connect the gas turbine and steam turbine to one shaft and one generator. Multi-shaft plants use separate shafts and generators for each turbine, which is the more common U.S. setup.
Are combined-cycle gas turbine power plants reliable?
Yes. CCGT plants ran at a 56% national capacity factor in 2022, far above the roughly 13% for simple-cycle units. That reflects their role as steady base and intermediate load providers.
