Introduction
Gas power plants rank among the most efficient thermal generation assets on the grid. A combined cycle unit can convert more than 60% of fuel energy into electricity, a figure coal plants never approach.
But that headline number hides a harder problem. Engineers designing or upgrading a plant have to predict how compression ratios, inlet temperatures, and ambient conditions will shift real-world performance. They often need those answers before committing to hardware that costs millions of dollars.
Get the modeling wrong, and you're stuck with a turbine that underperforms for decades. This guide breaks down the physics behind gas turbine efficiency, the factors that cause losses, and how simulation tools help engineers test decisions before they're locked in.
Key Takeaways
- Combined-cycle plants can top 60% efficiency vs. 33–43% simple-cycle and ~33% coal
- Compression ratio, turbine inlet temperature, and heat recovery are the main efficiency levers
- Ambient conditions, fuel quality, and maintenance shape real-world efficiency and output
- Simulation lets engineers test design and operating changes virtually before hardware work
What Is Gas Power Plant Efficiency and How Is It Measured?
Thermal efficiency measures the percentage of fuel energy that becomes usable electricity. The rest is lost as heat, friction, or exhaust.
The industry's practical metric is heat rate: the energy needed to produce one kWh, measured in Btu per net kWh. The EIA's conversion formula is simple:
Efficiency (%) = 3,412 ÷ heat rate (Btu/kWh) × 100
A plant with a 10,500 Btu/kWh heat rate runs at 33% efficiency. Drop that to 7,500 Btu/kWh, and efficiency jumps to 45% — lower heat rate, better performance.

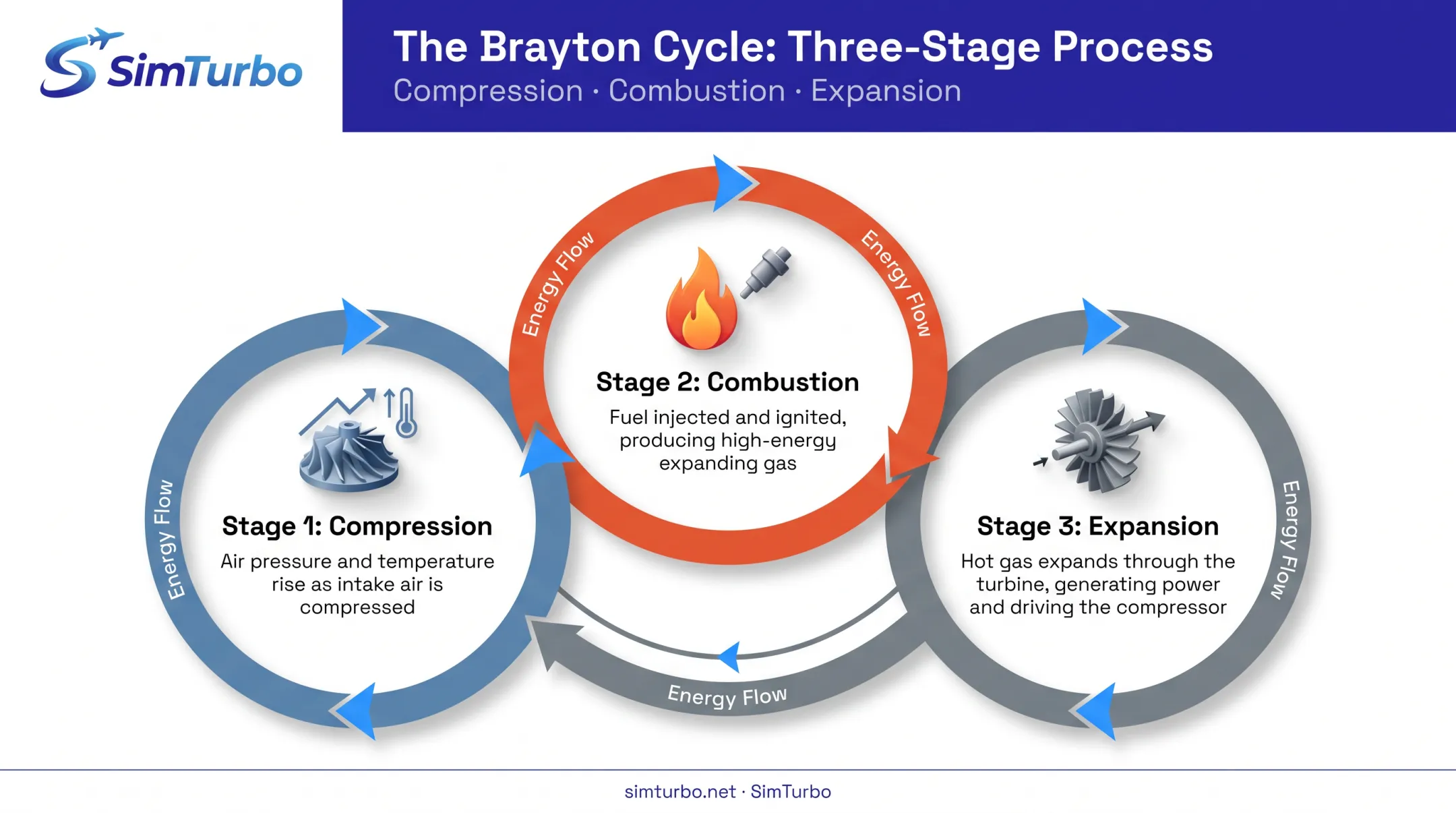

The Brayton Cycle Foundation
Every gas turbine operates on the Brayton Cycle, a three-stage process:
- Compression — Incoming air is compressed, raising pressure and temperature
- Combustion — Fuel is injected and burned, sharply raising temperature
- Expansion — Hot gases expand through the turbine, generating power and driving the compressor
Benchmarks Worth Knowing
- Simple cycle: 33–43%, with modern units like GE's 7HA series reaching 43.3% net
- Combined cycle: Up to 64%, achieved by GE's 9HA.02 unit
- Coal plants: Roughly 33% for comparison
One distinction matters:
- Thermal efficiency — net electric output versus fuel energy input
- Combustion efficiency — how completely the fuel actually burns
Strong combustion efficiency can still yield mediocre thermal efficiency if downstream losses eat the gains.
Core Factors That Determine Gas Turbine Efficiency
Compressor Performance and Compression Ratio
Higher compression ratios generally push efficiency up, but the relationship isn't linear. NASA's Brayton Cycle analysis found optimum pressure ratios varied significantly by turbine inlet temperature — around 15 at 1,500°F, rising sharply at higher temperatures.
Axial compressors dominate large-scale power generation because they handle high flow rates efficiently. Centrifugal compressors work better for smaller, more compact applications where robustness matters more than peak efficiency.
Component efficiency carries outsized weight. NASA's modeling showed a one-percentage-point change in turbine efficiency produced roughly a 3% relative swing in overall cycle efficiency. Engineers often quantify that sensitivity through compressor–turbine matching and cycle models before locking hardware choices.
Turbine Inlet Temperature and Materials
This is where decades of metallurgy progress have paid off. Early industrial turbines like the 1939 Neuchatel unit ran at roughly 550°C. Modern units like Mitsubishi's M501J hit 1,600°C, a jump made possible by:
- Advanced ceramic thermal barrier coatings
- Improved internal cooling channel design
- Single-crystal alloy blades that resist creep at extreme heat
Higher inlet temperature means more energy gets extracted from combustion gases before they exit. That's the single biggest lever OEMs have pulled over the past 80 years.
Ambient and Site Conditions
Hot, humid climates hurt performance. Less-dense air means the compressor works harder for the same mass flow, cutting into output and efficiency.
Common mitigation strategies:
- Fogging: strongest fit in moderate climates (about 15–20°C / 59–68°F)
- Evaporative cooling: lower capital cost with a moderate output recovery
- Absorption chilling: preferred above roughly 25°C (77°F) or in high humidity, per Applied Energy research

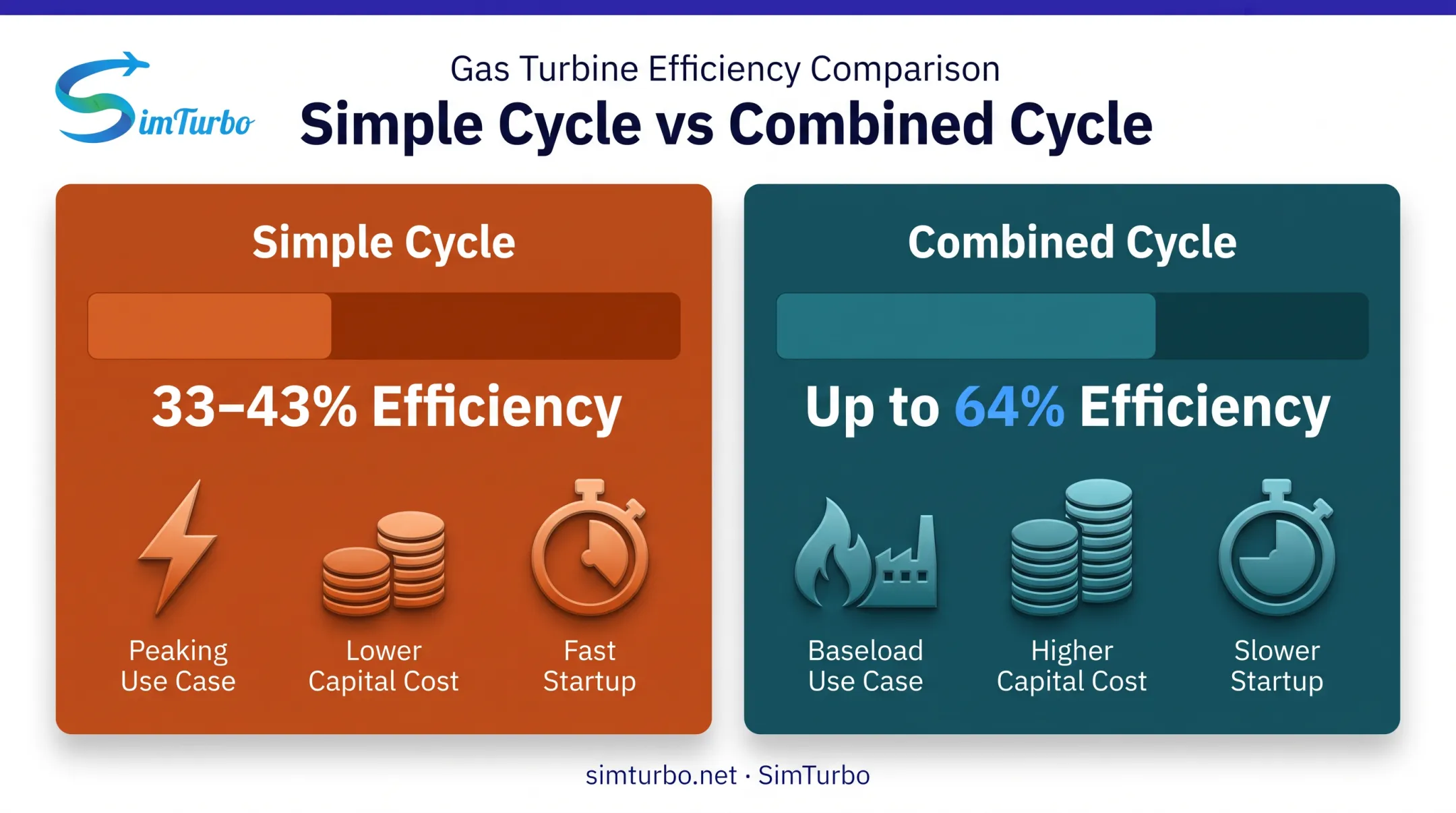

Combined Cycle vs. Simple Cycle Configuration
Thermodynamics set the ceiling; plant configuration decides how much of that ceiling you capture in commercial service.
| Factor | Simple Cycle | Combined Cycle |
|---|---|---|
| Efficiency | 33–43% | Up to 64% |
| Capital cost | Lower | Higher |
| Startup speed | Fast; ideal for peaking | Slower |
| Best use case | Peak demand, flexibility | Base load, sustained running |
Simple-cycle units trade peak efficiency for speed and lower capex. Combined-cycle plants recover exhaust heat in a steam bottoming cycle, which is why they dominate sustained, high-utilization duty.
Maintenance, Fuel Quality, and Operating Practices
Even a well-designed machine loses ground if fuel quality and day-to-day operating discipline slip. Efficiency drift usually shows up in three places:
- Fuel calorific value and combustion behavior that shift heat rate over the operating life
- Compressor fouling and worn blade coatings that erode output long before a hard failure
- Deferred borescope inspections and wash schedules that cost more in heat rate than most operators budget for
Tight monitoring of these factors keeps nameplate performance closer to real-world results year after year.
How Simulation Software Helps Engineers Maximize Efficiency
Physical prototype testing is expensive and slow. Building a test rig, running it, measuring results, and modifying hardware can take months per iteration. Virtual modeling compresses that cycle dramatically.
SimTurbo, built by Controls Research LLC, takes a component-based approach rather than treating the engine as a black box. Engineers model inlets, compressors, combustors, turbines, nozzles, and shafts individually. Recuperators, intercoolers, and similar components drop into the flow path through drag-and-drop connections.
That component view shows what happens at each stage—not only the final input-output result.

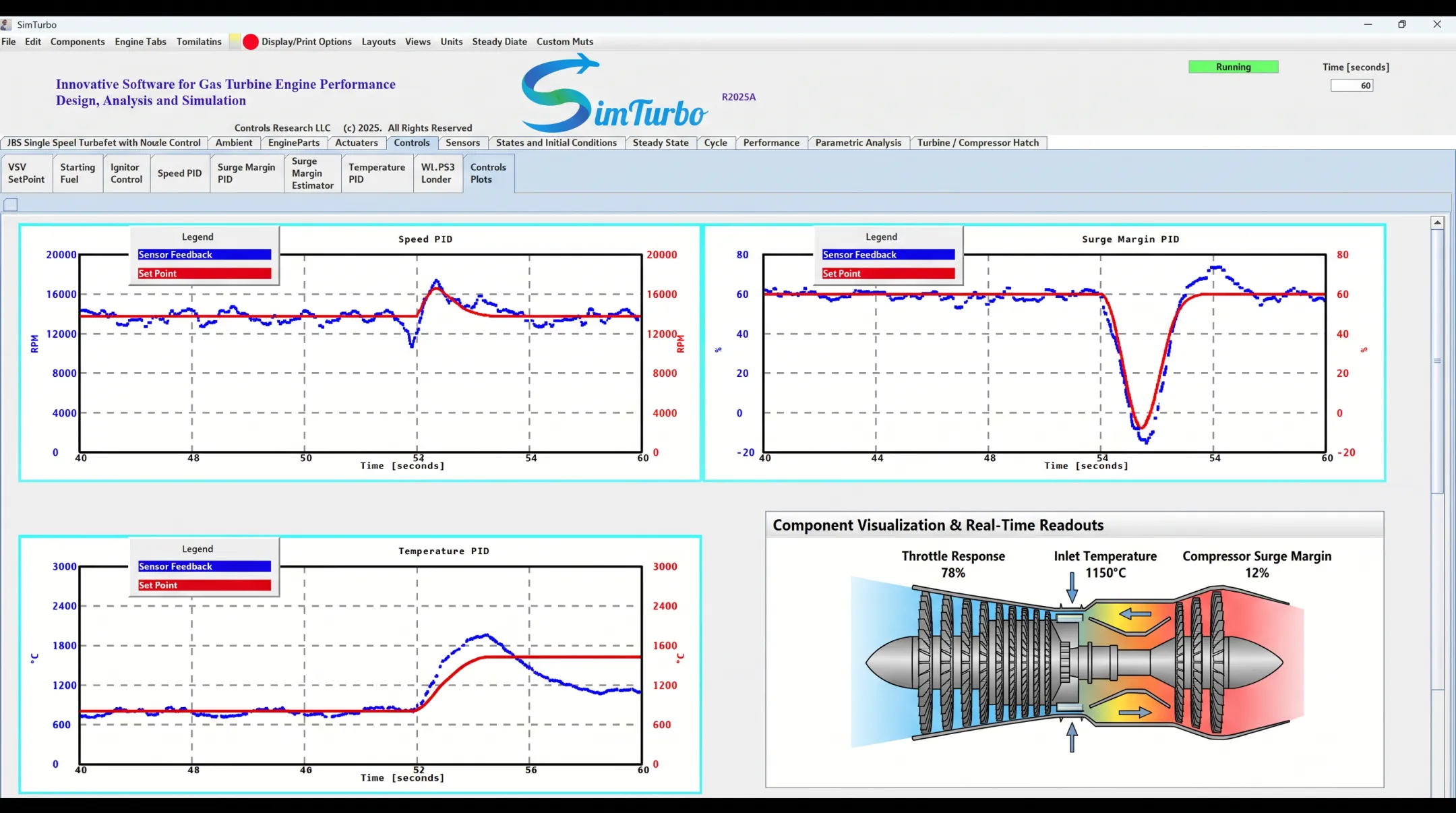

What Real-Time Simulation Reveals
Engineers using SimTurbo can visualize:
- Throttle response and turbine inlet temperature changes as they happen
- Startup and shutdown sequences, including slam-acceleration events
- Compressor surge margin under transient load (one case fell from 20-25% to below 5% during afterburner operation)
- Fault conditions and sensor failures before they occur on a test stand
Validation Builds Confidence
SimTurbo's results match NASA Lewis Research Center test data for the J85-GE-21 turbojet within ±2% on thrust, flow rate, temperature, and thrust-specific fuel consumption. That proof point lets engineers lock design decisions on screen before cutting metal.
For deeper analysis, transient data exports to CSV or Excel, feeding into MATLAB/Simulink or Python workflows for control-law validation.

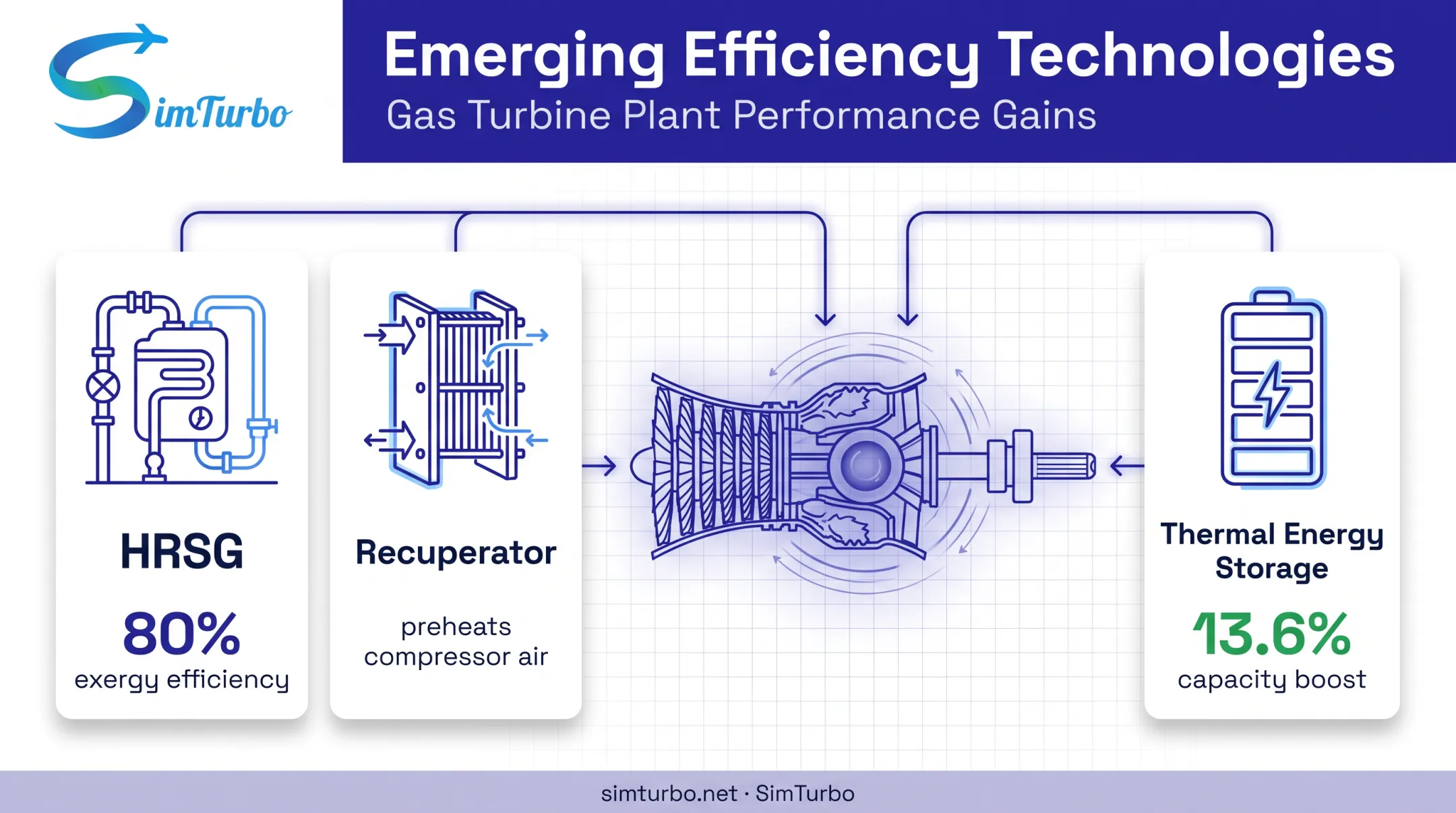

Emerging Technologies Improving Gas Plant Efficiency
Three heat-recovery and flexibility technologies are doing most of the efficiency work in modern gas plants:
- HRSGs capture turbine exhaust heat to raise steam for a secondary steam turbine, which is why combined-cycle plants lead on efficiency. A 2020 ASME study reported roughly 80% exergy efficiency for a two-pressure-level HRSG.
- Recuperators preheat compressor discharge air with turbine exhaust. SimTurbo models recuperated layouts directly, so engineers can test Brayton-cycle heat recovery without physical rigs.
- Thermal energy storage runs turbines off-peak and banks energy for peak demand. A Frame-6 case study showed roughly 13.6% capacity enhancement.
Newer fleets reflect those gains. Combined-cycle units entering service between 2010 and 2022 averaged 6,960 Btu/kWh in 2022, 7% below units built in the 2000s.
Cost vs. Efficiency: Balancing the Equation
Combined cycle plants demand higher upfront capital, but the fuel savings compound over decades of operation. Simple cycle plants cost less to build and ramp up faster, which matters when grid demand spikes suddenly.
The tradeoff breaks down like this:
- Combined cycle: higher capital cost, lower heat rate, best for continuous baseload generation
- Simple cycle: lower capital cost, faster ramp times, best for peaking demand
That mix of efficiency and responsiveness is why gas plants pair naturally with renewables. Solar and wind output fluctuates with weather, so natural gas plants provide the dispatchable backup that keeps the grid stable when renewable generation drops.
In 2023, U.S. operators added over 9,200 MW of new gas turbine capacity, split between combined cycle and simple cycle units. The split reflects demand for both fuel efficiency and operational flexibility.
Frequently Asked Questions
What is the efficiency of a gas power station?
Simple-cycle gas plants typically run at 33–43% efficiency. Combined-cycle plants, which recover exhaust heat to drive a secondary steam turbine, can reach 60–64% efficiency.
Which power plant has the highest efficiency?
Hydroelectric plants report the highest conversion efficiency at roughly 90%. Among fuel-based plants, combined-cycle gas turbines lead at up to 64%.
Can a steam electric power plant ever be 100% efficient?
No. The second law of thermodynamics requires every heat engine to reject some absorbed heat, making 100% efficiency physically impossible regardless of engineering advances.
What is the most inefficient energy source?
Ocean thermal energy conversion (OTEC) ranks among the least efficient technologies, with rates generally falling between 2% and 5% depending on the study and system design.
How does turbine inlet temperature affect efficiency?
Higher inlet temperatures let the turbine extract more energy from combustion gases before exhaust, directly boosting thermal efficiency. This is why metallurgy advances have been central to efficiency gains.
Why do engineers use simulation software for gas turbine design?
Simulation reduces costly physical prototyping, speeds up design iteration, and improves accuracy of performance predictions. Component-based platforms like SimTurbo let engineers test compressor, combustor, and turbine changes virtually before committing to hardware.
