Shaft configuration shapes starting torque, part-load efficiency, and how well a machine handles changing loads. Get it wrong and you end up with excess fuel burn, higher maintenance bills, or an engine that simply can't do what the application demands. This matters across aerospace, marine propulsion, and power generation alike.
This article breaks down the three main shaft architectures, explains where each one fits best, and covers how engineers validate their choice before committing to hardware.
TL;DR
- Shaft design links compressor, turbine, and load sections and sets how the engine responds to speed and load changes
- Three primary configurations exist: single-shaft, twin-shaft (split-shaft), and multi-spool
- Choice drives starting torque, part-load efficiency, and fit for generator vs. mechanical drive
- Pick the design by application type, load variability, and how much operational flexibility you need
What Is Gas Turbine Shaft Design?
Shaft design is the arrangement of rotating shafts linking the compressor, turbine, and output load inside a gas turbine. These shafts transmit torque from the turbine section back to the compressor and out to the driven load—a generator, pump, or propeller.
Depending on configuration, shafts run at a single fixed speed or at multiple independent speeds. NASA's compressor-turbine matching framework treats common-shaft coupling as a fundamental physical constraint: turbine work must equal the work the compressor requires when both sit on the same shaft.
This isn't a detail engineers bolt on late in the process. They set shaft count and arrangement at the architecture stage, right alongside pressure ratio and cycle selection, because that choice shapes almost everything downstream.
Why Does Shaft Design Matter in Gas Turbine Engineering?
Shaft configuration directly influences starting torque, part-load efficiency, and how gracefully an engine adapts to load swings. A single shared shaft forces the compressor, turbine, and load into one speed state. A split shaft frees the output load to move somewhat independently.
The trade-offs aren't automatic wins for either side. An ASME comparison of single- and two-shaft engines found that single-shaft configurations performed better at part load under ideal-cycle assumptions. Once realistic component maps entered the picture, the result flipped depending on cycle and map shape. There's no universal winner—the answer depends on your specific compressor and turbine maps.
Mismatched shaft designs can cause:
- Excess fuel burn at partial load
- Higher maintenance costs from unnecessary mechanical complexity
- Reduced flexibility when load demands shift
Transient behavior also differs sharply by shaft type. Startup sequences, throttle response, and acceleration all play out differently on a single-shaft engine versus a twin-shaft one.
Platforms like SimTurbo let engineers model single-spool and dual-spool turbojet architectures and watch turbine inlet temperature, RPM, and related parameters update in real time as throttle position changes. That visibility in early design work heads off costly late-stage redesigns.
Types of Gas Turbine Shaft Designs
Shaft design isn't one-size-fits-all. Single-shaft, twin-shaft, and multi-spool configurations each address a different combination of efficiency, flexibility, and mechanical simplicity.

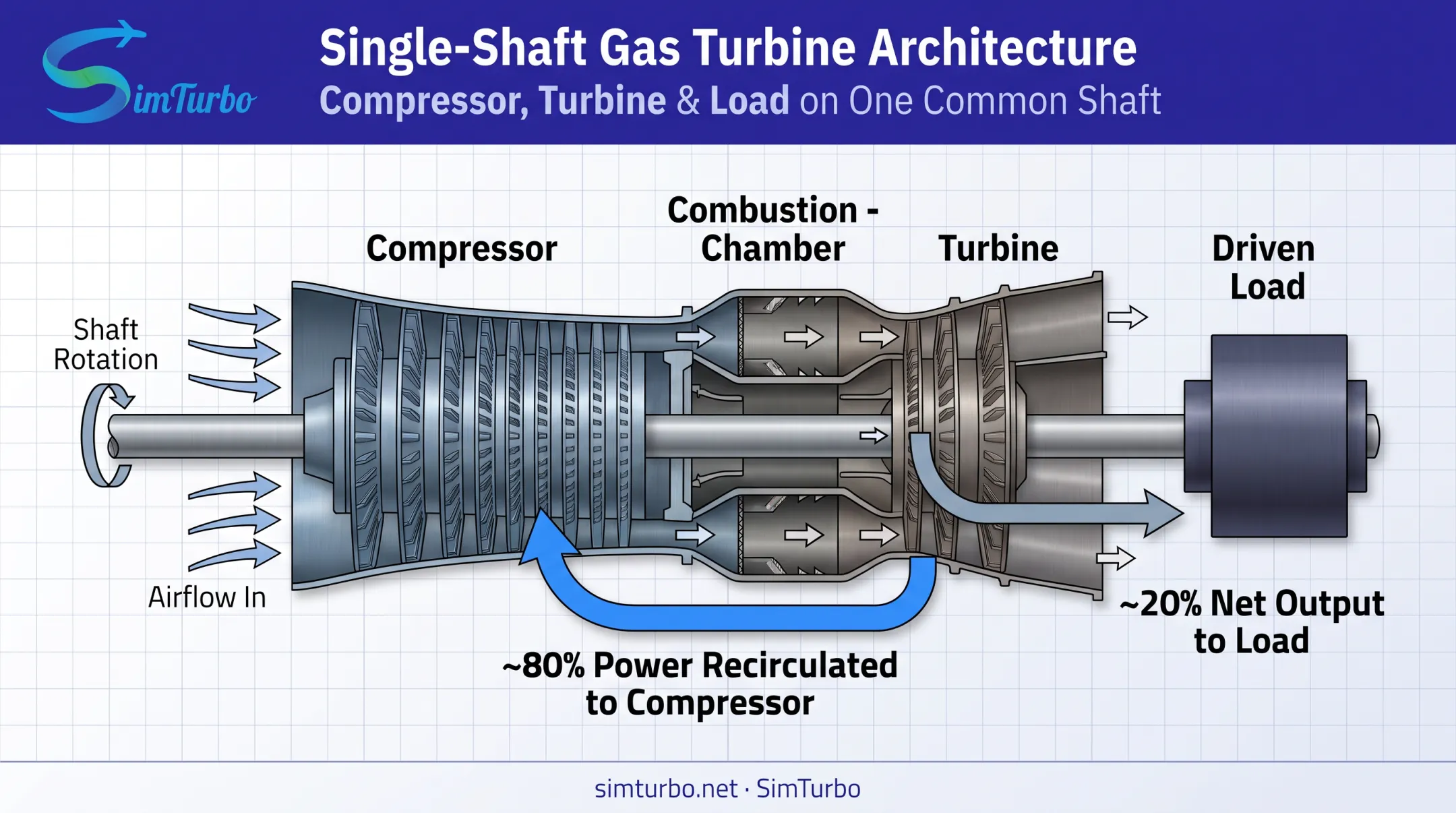

Single-Shaft Gas Turbine
In a single-shaft design, the compressor, turbine, and driven load all sit on one common shaft rotating at the same speed. There's no decoupling anywhere in the system.
A large share of the turbine's generated power goes straight back into driving the compressor, leaving the remainder for the load. Engineers sometimes cite roughly 80% as a rule of thumb for this internal split, but that figure isn't a fixed specification.
NASA's compressor and turbine work equations show the actual split depends on pressure ratio, temperature, and component efficiency at each operating point. Calculate it for your specific engine rather than assuming a number.
How it differs: Fixed-speed operation tied directly to compressor speed, unlike split-shaft designs where output speed can move independently.
Best suited for: Constant-speed applications, especially electric generator drive, where load speed never varies. Solar Turbines' Saturn 20, rated at 1,210 kWe, is a documented example of a single-shaft, constant-speed generator-drive turbine.
Key strengths:
- Mechanical simplicity with fewer components and bearings
- Lower maintenance burden than multi-shaft layouts
Limitations: Poor part-load efficiency in cogeneration or combined-cycle setups. Since the compressor is locked to load speed, reducing load also reduces compressor speed and airflow, which hurts efficiency at partial output.

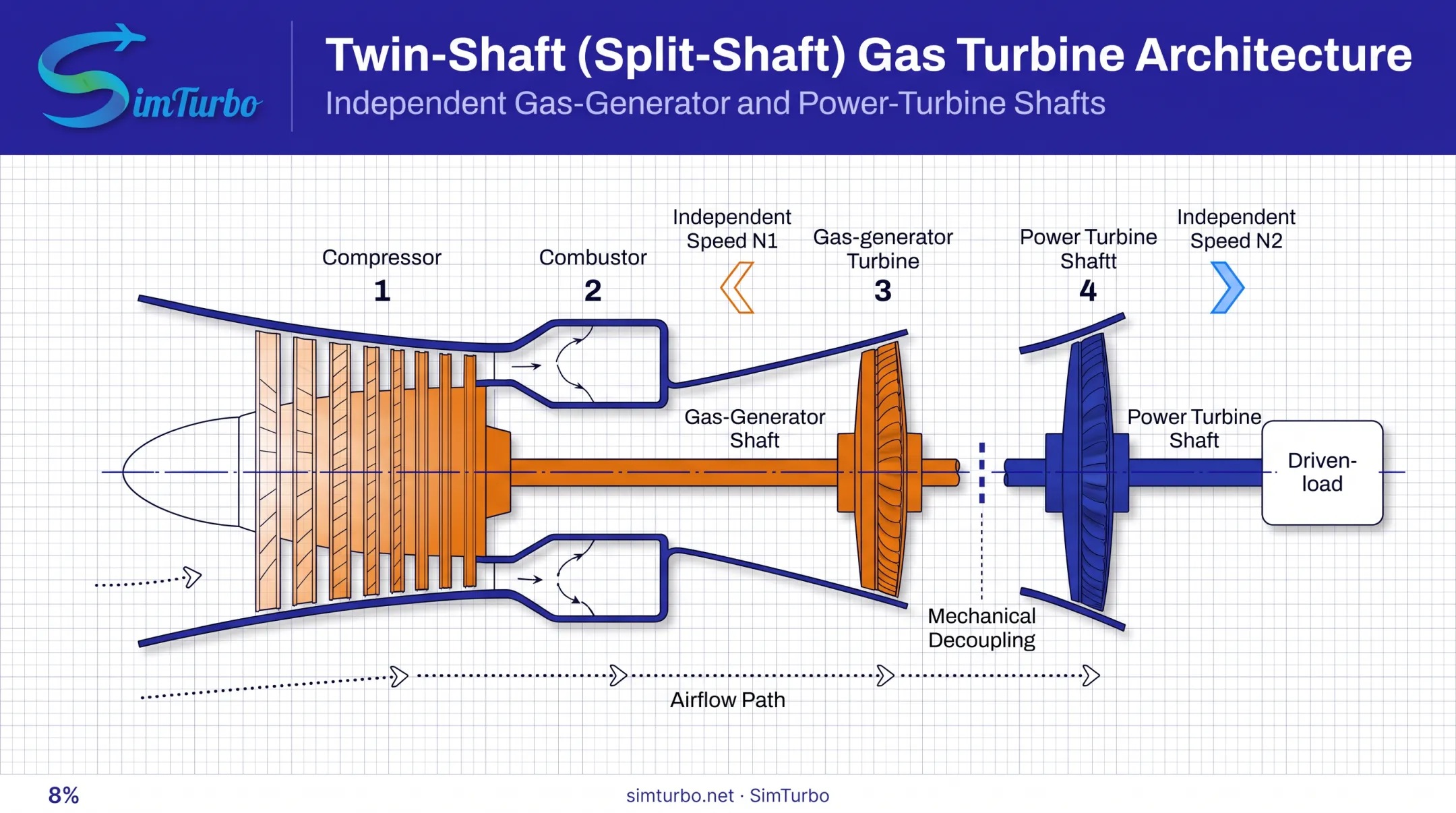

Twin-Shaft (Split-Shaft) Gas Turbine
A twin-shaft, or split-shaft, design separates the gas-generator shaft (which spins the compressor) from a separate power-turbine shaft that drives the load. Because these shafts aren't mechanically locked together, the power turbine can drive the load at a speed independent of gas-generator speed.
How it differs: Decoupled speeds let the compressor adjust its operating point without forcing the driven load to match it.
Best suited for: Mechanical drive applications such as compressors and pumps that need variable speed and strong starting flexibility. Solar Turbines' Titan 130 is a documented two-shaft engine built for compressor and mechanical-drive duty, rated at 36% simple-cycle thermal efficiency.
Key strengths:
- Stronger starting torque: free-power-turbine designs raise torque as speed drops (ASME), which helps during acceleration
- Independent compressor speed control can improve fuel economy at varying loads
- Longer component life from reduced speed-matching stress
Limitations: Two independent shaft systems mean more bearings, more seals, and more control complexity than a single-shaft design. That's a real maintenance cost to weigh against the operational upside.

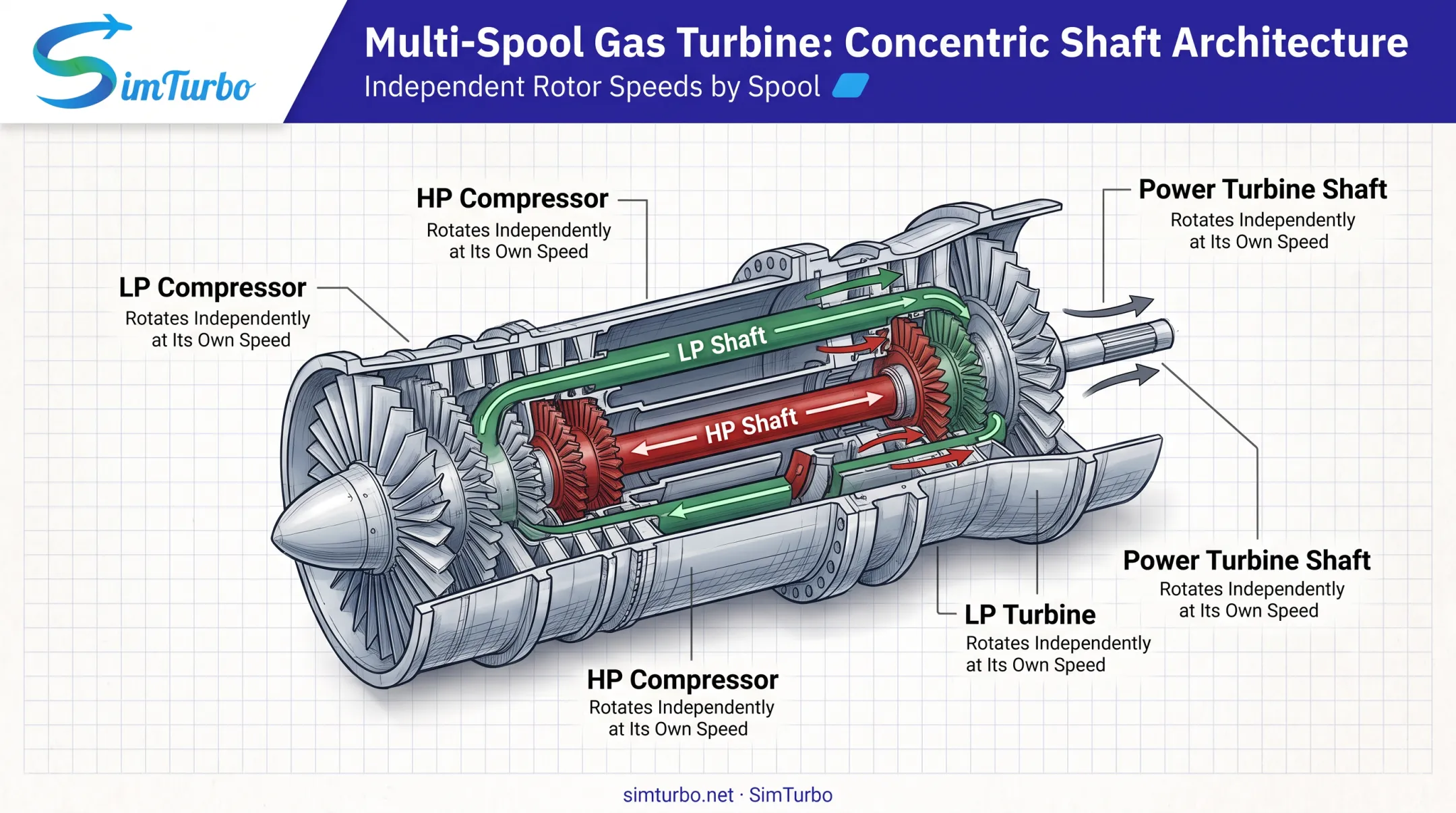

Multi-Spool (Twin-Spool) Gas Turbine
Multi-spool designs use separate high-pressure and low-pressure compressor/turbine shafts running concentrically at different speeds, sometimes with a third power-turbine shaft added on top. NASA describes this architecture as defined by mechanically independent rotating groups, not simply by counting compressor stages.
Splitting compression across spools prevents aerodynamic instability at off-design speeds, particularly at high pressure ratios where a single compressor would struggle to stay clear of surge.
How it differs: Multiple concentric shafts, rather than one or two parallel shafts, allow higher pressure ratios without the surge risk a single compressor would face.
Best suited for: High-pressure-ratio applications and aircraft-derivative engines needing a wide operating range, including UAV propulsion and hybrid-electric research programs.
Key strengths:
- Higher thermal efficiency across a broad speed range
- Each spool can be matched to its own compressor map
Limitations: Splitting spools doesn't automatically guarantee surge margin. NASA research on hybrid-electric propulsion found that off-nominal power extraction or insertion can cause shaft over-speed, under-speed, compressor stall, or reduced compressor efficiency.
That complexity needs careful modeling. Tools such as SimTurbo's dual-spool turbojet model cover high- and low-pressure spool interaction, compressor matching, and transient behavior so these issues surface before hardware.

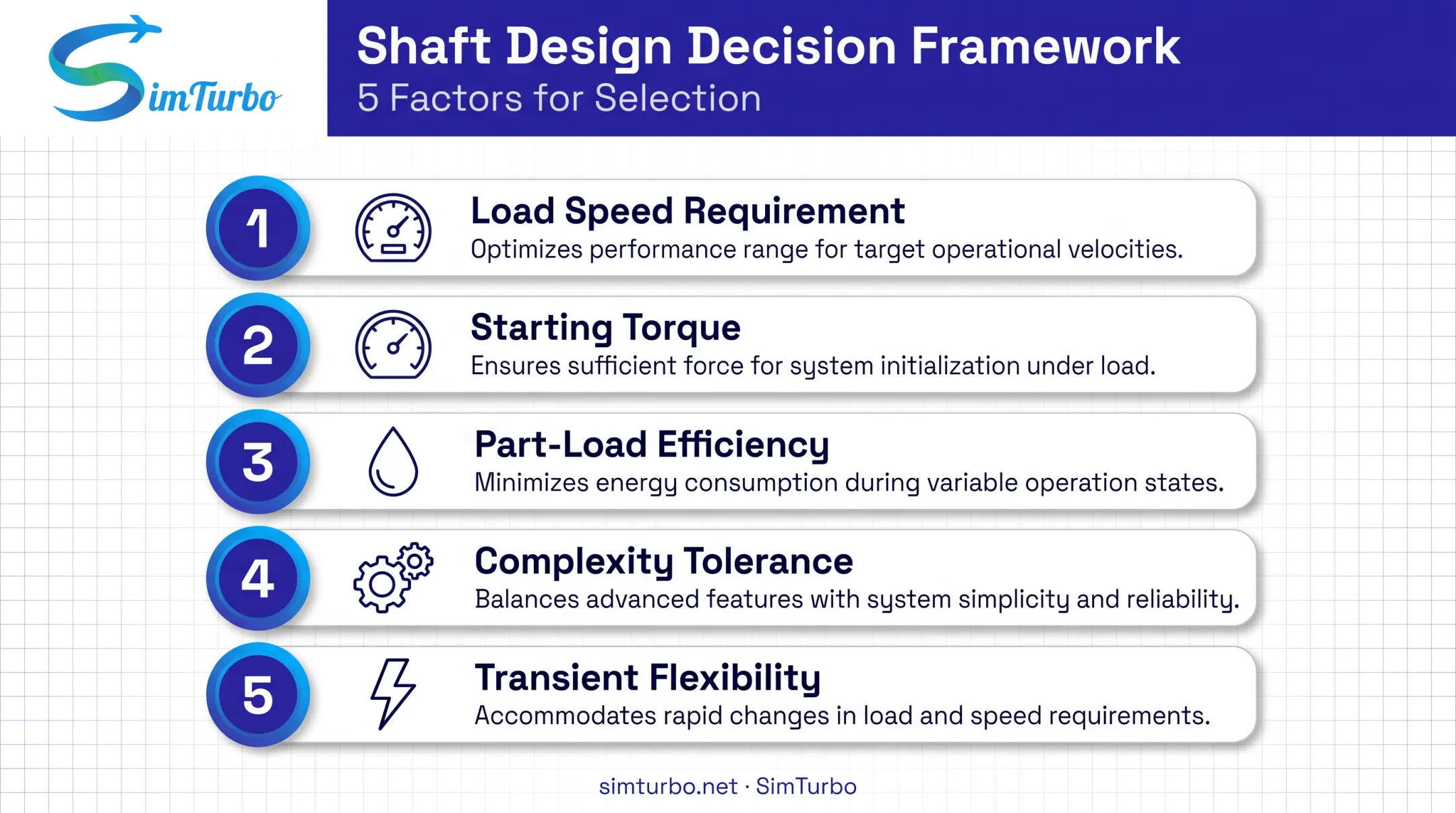

How to Choose the Right Shaft Design
The right shaft design comes from your application's requirements, not from convention or what's easiest to build. Work through these factors:
- Load speed requirement — Does the driven equipment need constant speed (generator) or variable speed (compressor, pump)?
- Starting torque — What torque does the load demand at startup, and what capacity does your starting device have?
- Part-load efficiency — How much time will the engine spend below rated output, and how much does fuel economy matter there?
- Complexity tolerance — Can your maintenance program handle more bearings, more shafts, and more control loops?
- Transient flexibility — Does the application require rapid throttle response or load acceptance?
That last point is where simulation belongs in the decision. Rather than guessing how a configuration will behave during startup or a sudden load step, engineers can model it first.
SimTurbo's real-time environment supports single-spool and dual-spool turbojet modeling. Users can watch transient parameters shift as throttle position changes, which is useful groundwork before locking in a physical design.
What to Check Before Finalizing a Shaft Design
A few common missteps show up repeatedly in shaft-design decisions:
- Don't over-engineer. Choosing a multi-spool design when a single- or twin-shaft configuration would satisfy the application just adds cost and maintenance burden for no real gain.
- Don't skip torque and speed-control checks. Starting torque requirements and speed-control implications need to match the specific driven equipment, not a generic assumption.
- Account for bearing count in long-term costs. More shafts mean more bearings, more seals, and more scheduled maintenance over the engine's service life.
- Validate assumptions with simulation, not precedent. Component-based modeling tools let engineers test shaft arrangements against realistic component maps before cutting metal, instead of relying on a familiar past design.
SimTurbo validated its single-spool J85-GE-21 model against NASA Lewis Research Center test data, with agreement within ±2% for thrust, flow rate, temperature, and fuel consumption. That is the accuracy bar to clear before trusting a simulation environment with architecture decisions.
Conclusion
Shaft design sits at the center of how a gas turbine starts, responds to load, and performs across its operating range. Single-shaft, twin-shaft, and multi-spool configurations each solve a different problem: constant-speed simplicity, mechanical-drive flexibility, or high-pressure-ratio stability.
The right architecture depends on your load profile, starting requirements, and complexity tolerance. Tools like SimTurbo let engineers and students model, compare, and pressure-test these configurations before committing to a physical prototype. That includes single-spool and dual-spool turbojet architectures with real-time transient behavior.
Frequently Asked Questions
What are the main types of gas turbine designs?
The three main configurations are single-shaft, twin-shaft, and multi-spool. Single-shaft uses one common shaft for compressor, turbine, and load; twin-shaft separates the gas-generator and power-turbine shafts; multi-spool uses concentric high- and low-pressure shafts at different speeds.
How is gas turbine shaft work calculated?
Shaft work is the difference between turbine energy output and compressor energy demand, minus mechanical losses. NASA's compressor-turbine matching equations provide the underlying physics for each operating point.
Why do twin-shaft turbines have better fuel economy than single-shaft designs?
Independent compressor speed control lets the gas generator optimize airflow as load varies, rather than being locked to whatever speed the load requires. The exact fuel-economy benefit is engine- and duty-specific, not a fixed percentage.
Can gas turbine shaft configuration be simulated before building a physical prototype?
Yes. Component-based simulation platforms like SimTurbo let engineers model transient and steady-state shaft behavior, including single-spool and dual-spool turbojet configurations, before committing to hardware.
Which shaft design is best for driving an electric generator?
Single-shaft designs are typically preferred for generator drive because constant-speed operation matches generator requirements directly, as seen in turbines like Solar's Saturn 20.
What is the difference between a twin-shaft and multi-spool gas turbine?
Twin-shaft refers to separating the gas-generator shaft from the power-turbine shaft driving the load. Multi-spool uses concentric high- and low-pressure compressor-turbine pairs running at independent speeds inside the core engine.
