Many engineers and students conflate shrouds with nozzles, seal rings, or generic casing components. That confusion causes real design and analysis errors. This article defines what a shroud actually is, why it matters, what it's made of, how it fails, and how simulation platforms like SimTurbo help engineers study clearance effects before cutting metal.
Key Takeaways
- A shroud is a stationary or rotating ring-like structure at the blade tip that seals gas flow and controls clearance
- Shrouds cut efficiency losses by minimizing hot gas leakage past blade tips
- Shrouds endure extreme thermal and mechanical loads that require superalloys, coatings, and cooling
- Tools like SimTurbo help engineers model tip-clearance and leakage effects on turbine performance before physical testing
What Is a Shroud in a Gas Turbine?
A shroud is a structural band or ring positioned at or near the blade tip that seals the gap between rotating blades and the stationary casing. This gap, if left unsealed, lets high-energy gas bypass the blades without doing useful work, wasting energy the engine already paid to produce.

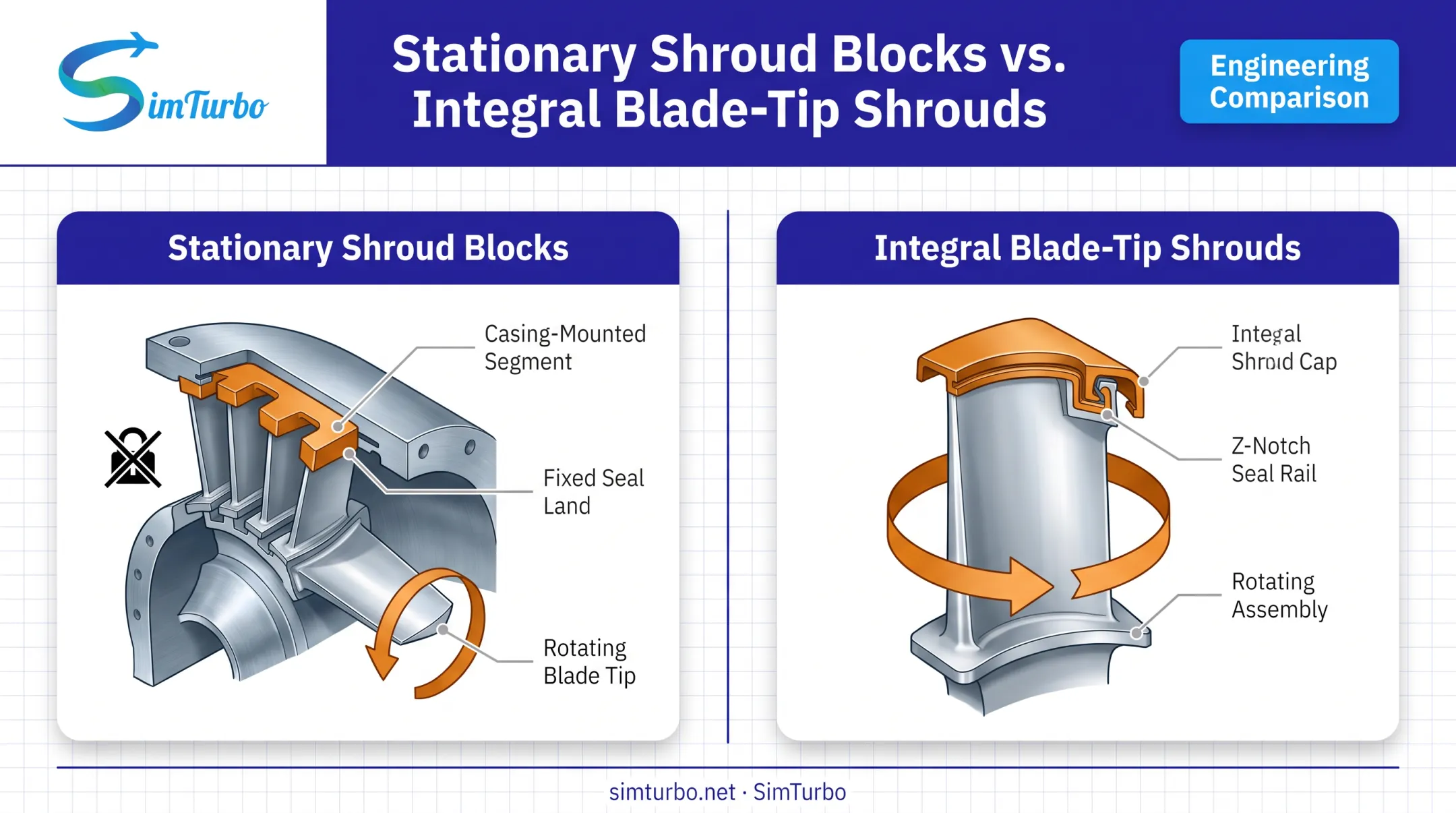

There are two distinct shroud architectures, and mixing them up is where most confusion starts.
Stationary shroud blocks (shroud segments) are casing-mounted components. A GE patent describes them as separate from airfoil-bearing nozzle segments, assembled circumferentially around the engine and spaced away from the rotating blades. They form part of the fixed flowpath boundary.
Integral blade-tip shrouds are carried by the rotating blade itself. A 2010 patent describes these using platforms, Z-notches, seal rails, and stress-relieving cavities, all designed to reduce bending stress while keeping sealing performance intact.
The practical difference comes down to motion. A stationary segment is fixed to the casing and does not rotate. An integral tip shroud rotates with the blade row as part of the blade assembly.
Distinguishing Shrouds from Related Components
Shrouds are frequently confused with nozzles and turbocharger shroud rings, but these serve different roles.
Nozzles (stator vanes) guide and accelerate flow onto the rotating blades; they do not seal the blade-tip gap. In turbochargers, a shroud ring or nozzle cage directs exhaust flow through the turbine wheel—a related sealing idea, but architecturally distinct from the gas-turbine shroud segments above.
Turbine blades themselves have three named sections: root, airfoil, and shroud. The shroud sits at the airfoil's tip, capping the blade and providing the sealing surface.
Industrial gas turbines tend to favor shroud blocks (segments). Aircraft engines more often use integral tip shrouds built into the blade, mainly because of weight and rotational stress differences between the two applications.
Why Shrouds Matter: Function and Performance Impact
The primary job of a shroud is reducing tip clearance leakage. Less leakage means more of the combustion gas actually pushes on the blades instead of slipping past them.

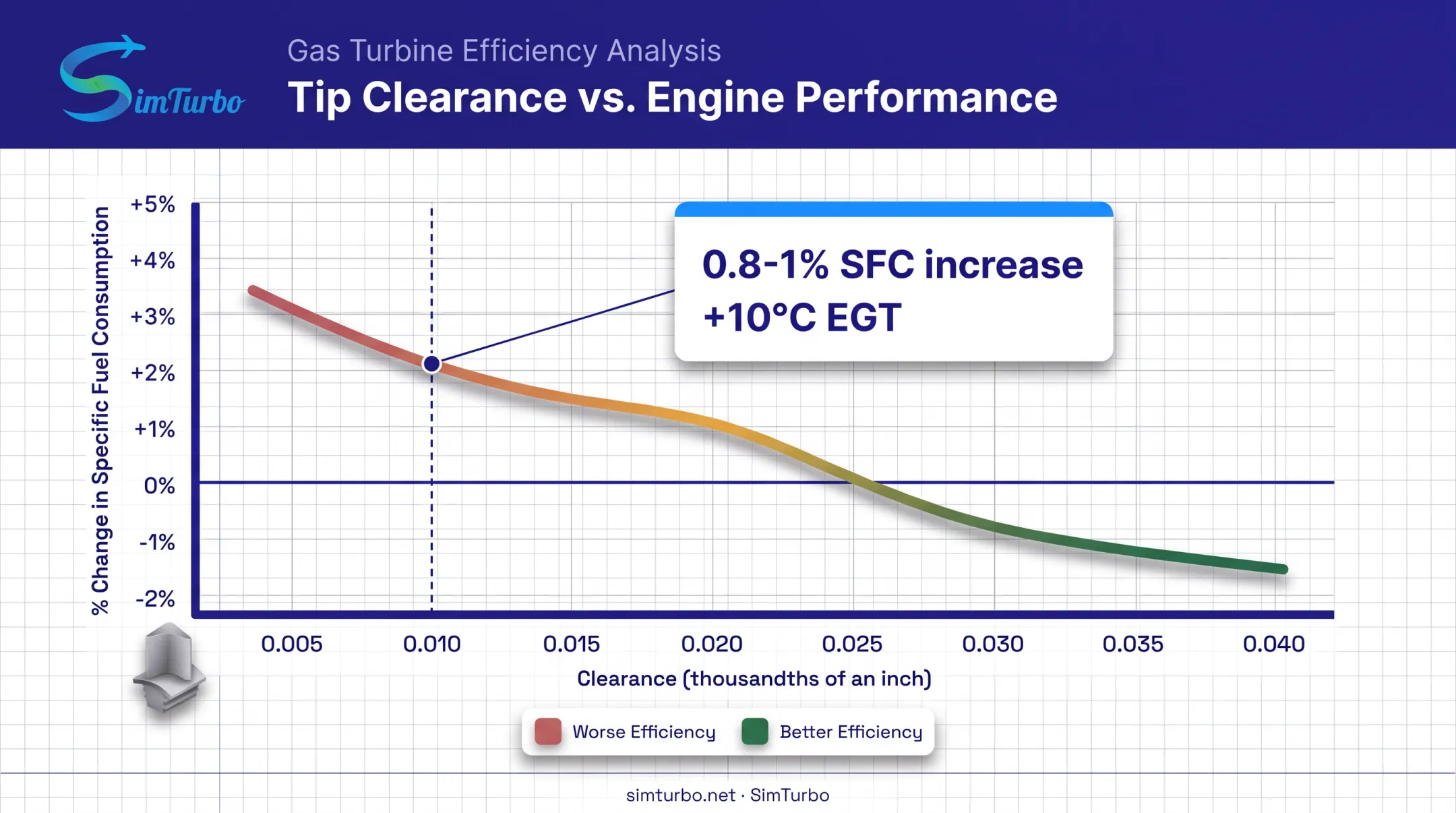

NASA's 2006 active clearance control (ACC) research reported that 0.010 inch of tip clearance is worth roughly 0.8–1% in specific fuel consumption, plus about 10°C in exhaust gas temperature (NASA ACC test rig report). The conversion is not universal across every engine, yet it explains why clearance control gets so much engineering attention.
Beyond leakage control, shrouds serve several secondary functions:
- Vibration damping: Interlocking tip shrouds cut blade flutter and high-cycle fatigue risk
- Structural support: Adjacent blades brace each other through shroud-to-shroud contact
- Thermal protection: Shrouds shield underlying hardware from peak gas temperatures
- Fragment containment: Shrouds help retain debris if a blade fails in service
Shroud design also governs how cooling air is metered and placed around the stage. That cooling layout drives axial and radial clearances as the engine heats up and moves through its operating range—and when cooling is compromised, the failure mode can escalate quickly.
A Real Consequence: The GE90 Shroud Case
Poor shroud performance is not theoretical. A Transportation Safety Board of Canada investigation reviewed a Boeing 777 event on GE90-110B1 and GE90-115B engines after a manufacturing change altered laser-drilled cooling-hole shape and size.
In service, those holes eroded, cooling degraded, a super-heated zone formed, and the HPT Stage 1 shroud lost structural integrity. The crew shut the engine down during initial climb. Investigators also noted that shroud damage was likely already present at the prior borescope inspection but went undetected (TSB Aviation Investigation Report A12O0074).
The lesson is practical: small cooling-geometry changes and missed inspection cues can turn a tip-shroud issue into an in-flight shutdown.
Shroud Design Types and Configurations
Engineers choose between a few configurations depending on the application and operating environment.
Segmented shroud blocks distribute thermal and mechanical stress across multiple circumferential pieces rather than one continuous ring. This makes assembly, replacement, and local repair far easier. It also accommodates thermal growth without the whole ring cracking under differential expansion.
Integral blade tip shrouds use interlocking or Z-notch geometries, common in aerospace turbines. These geometries:
- Reduce shroud mass while maintaining sealing performance
- Lower bending stress at critical locations
- Create controlled contact points between adjacent blades for damping
Active clearance control (ACC) systems adjust tip clearance in real time. NASA's research rig used nine independently actuated seal carriers with closed-loop capacitance probes, tracking clearance targets within 0.001 inch under simulated take-off conditions.
Elevated-temperature and full-pressure testing was still future work in that study. Treat ACC as a maturing option, not a fully proven production standard in every application.
Materials and Manufacturing Considerations
Shrouds live in one of the harshest thermal environments in the engine. Material choice reflects that reality directly.
Nickel and cobalt-based superalloys dominate shroud construction. Patents describing gas turbine shrouds specifically cite high-temperature nickel-base and cobalt-base alloys, chosen for their creep resistance and oxidation resistance at sustained high temperatures.
Ceramic matrix composites (CMC) are gaining ground, particularly at GE, which shipped its 100,000th CMC turbine shroud from its Asheville facility in August 2021. CMC shrouds run cooler and lighter than metal equivalents.

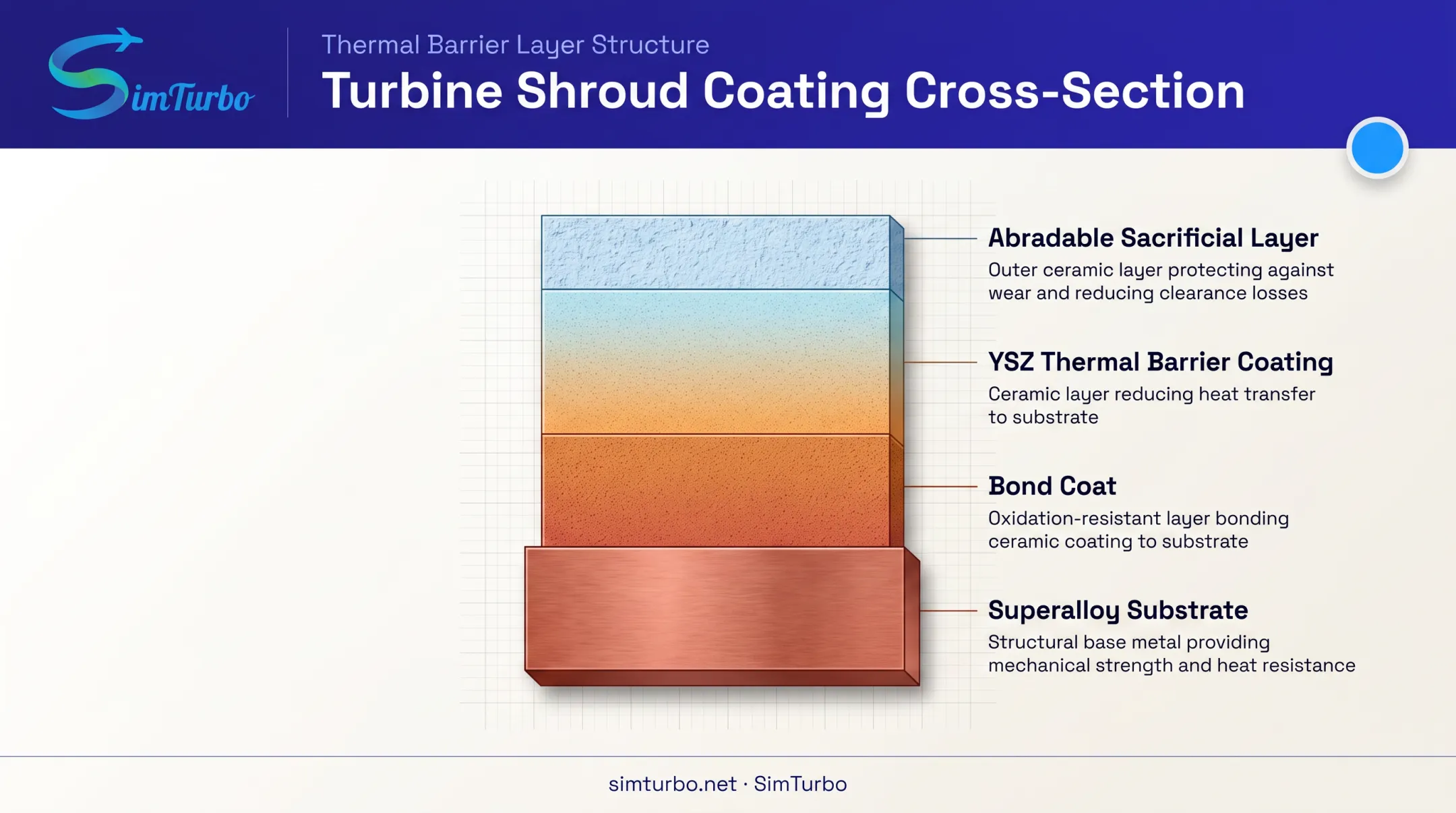

Coatings extend shroud life in two main ways:
- Thermal barrier coatings (TBC) — typically a ceramic (YSZ) layer over an oxidation-resistant bond coat, reducing heat transfer into the base material
- Abradable coatings — sacrificial ceramic layers applied to shroud seal segments that allow tighter running clearances without catastrophic rub damage
Once materials and coatings are set, manufacturing still centers on precision CNC machining for shroud segments and cooling passages.
Additive manufacturing is expanding across gas turbine components, but published adoption is strongest for turbine blades (such as GE9X titanium-aluminide blades), not shrouds. Industry AM claims do not automatically extend to shroud production.
Common Shroud Issues and Maintenance Challenges
Shrouds fail in predictable ways, but the consequences can escalate fast if inspection intervals miss early signs.
Typical failure modes include:
- Thermal fatigue from repeated heating/cooling cycles during start-stop operation
- Oxidation from sustained high-temperature exposure
- Rub wear from blade tips scraping the shroud surface during transients or vibration events
- Corrosion from combustion byproducts and environmental contaminants
The TSB case study above offers a concrete maintenance lesson. Service Bulletin 72-0401 called for inspection at 500 cycles initially, then repeat inspections every 250 cycles. The operator had already shortened that interval by half, yet damage still went undetected at a borescope check.
The takeaway: inspection frequency should respond to the specific distress mechanism at play, not a generic schedule.

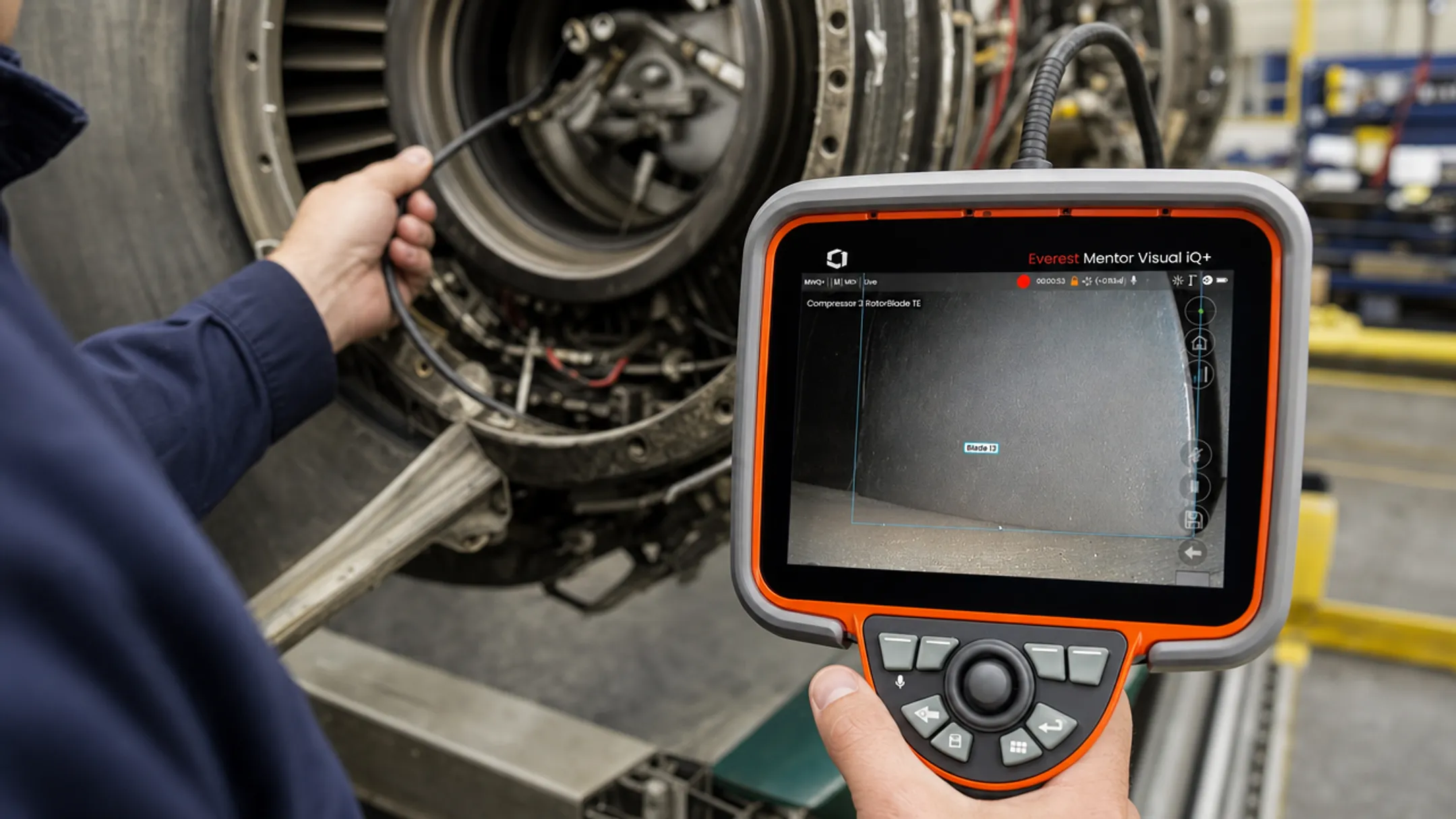

Regular clearance monitoring, borescope inspection, and vibration tracking remain the first defense against serious shroud failure. Even a minor shroud or seal issue can trigger unplanned downtime that costs far more than the repair itself.
How Simulation Tools Help Engineers Analyze Shroud Performance
Predicting how a shroud will behave thermally and aerodynamically has traditionally required expensive physical rig testing, the kind NASA ran with actuated seal carriers and capacitance probes. That's not accessible to most engineering teams or classrooms.

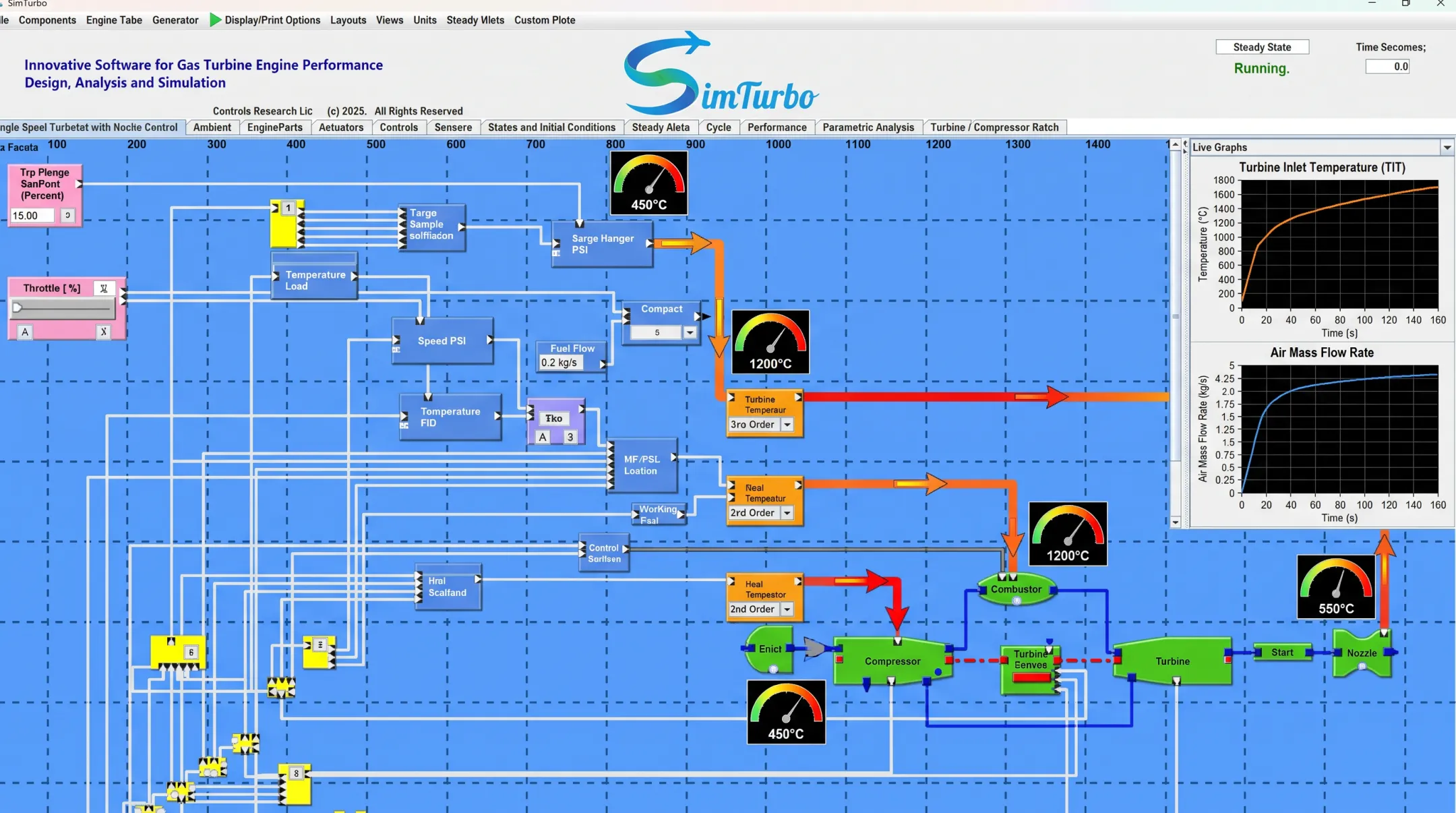

Component-based simulation platforms put that analysis within reach. SimTurbo lets engineers build gas turbine architectures from a modifiable component library: inlets, compressors, combustors, turbines, nozzles, and shafts. Teams connect those components to visualize transient thermal and flow effects in real time on a standard PC.
For the turbine component specifically, engineers can:
- Re-parameterize turbine models within the broader engine architecture
- Track real-time temperature and EGT data during transient events
- Export time-series data to CSV or Excel for post-processing
SimTurbo's modeling approach is benchmarked against NASA Lewis J85-GE-21 test data within ±2% for thrust, flow rate, temperature, and TSFC. That gives engineers and students a credible reference point before hardware testing.
The validation covers overall engine performance, not a dedicated shroud-clearance module. Teams studying shroud-specific leakage or contact behavior should treat SimTurbo as a system-level modeling tool rather than a specialized shroud analysis package.
Students and researchers starting out can begin with the 30-day free trial, which includes the full TurboJet component set. For longer research projects, the one-year license at $599 supports sustained investigation with included upgrades.
Frequently Asked Questions
What is the shroud in a turbine?
A shroud is a stationary or rotating ring-like structure at or near the blade tip. It seals the gap between rotating blades and the casing, reducing gas leakage and improving efficiency.
What is the function of the shroud ring in a turbocharger?
A turbocharger shroud ring seals the tip clearance around the compressor or turbine wheel, minimizing leakage and maximizing boost efficiency.
What are the parts of a turbine called?
Key parts include the rotor, blades (root, airfoil, and shroud), nozzle, casing, and shaft. The shroud sits at the blade tip and helps control tip leakage.
How does shroud clearance affect fuel efficiency?
Tighter clearances reduce gas leakage past the blade tips, improving specific fuel consumption. NASA research links roughly 0.010 inch of clearance to about 0.8-1% SFC.
What materials are used to make turbine shrouds?
Nickel and cobalt-based superalloys are the standard, often paired with thermal barrier coatings and abradable seal coatings. Ceramic matrix composites are increasingly used in newer designs.
Can simulation software predict shroud-related performance issues before manufacturing?
Platforms like SimTurbo let engineers model engine-level thermal and performance trends before physical testing. Dedicated shroud-clearance modeling isn't a standalone feature, but system-level validation still supports early design decisions.
