How you package it determines whether it performs. Fuel systems, filtration, controls, starters, and heat recovery all interact with the core engine in ways that affect efficiency for decades. A 2018 life-cycle study found that optimized designs cut total costs by up to 12% for regenerative-cycle plants, largely through smarter integration decisions made early in the design process (MDPI Energies, 2018).
This post covers packaging fundamentals, core design tradeoffs, the growing role of simulation software, and the challenges engineers run into when turning a turbine into a working system.
Key Takeaways
- Packaging integrates the core engine with compressors, auxiliaries, and site-specific systems, not just the turbine itself
- Aero-derivative turbines can reach efficiencies around 45%, versus roughly 35% for many heavy-frame designs
- Filtration, lube-oil, and starter sizing decisions are reliability interfaces, not afterthoughts
- Simulation software lets engineers test architectures and control logic before committing to hardware
What Is Gas Turbine Packaging and Why It Matters
Packaging means combining the gas generator, compressor trains, pumps, generators, and auxiliary skids into one site-specific solution. It's a systems problem: pressure loss, thermal expansion, vibration, and outage access all interact with each other.
Which turbine architecture you choose shapes those interactions and the package layout that follows.

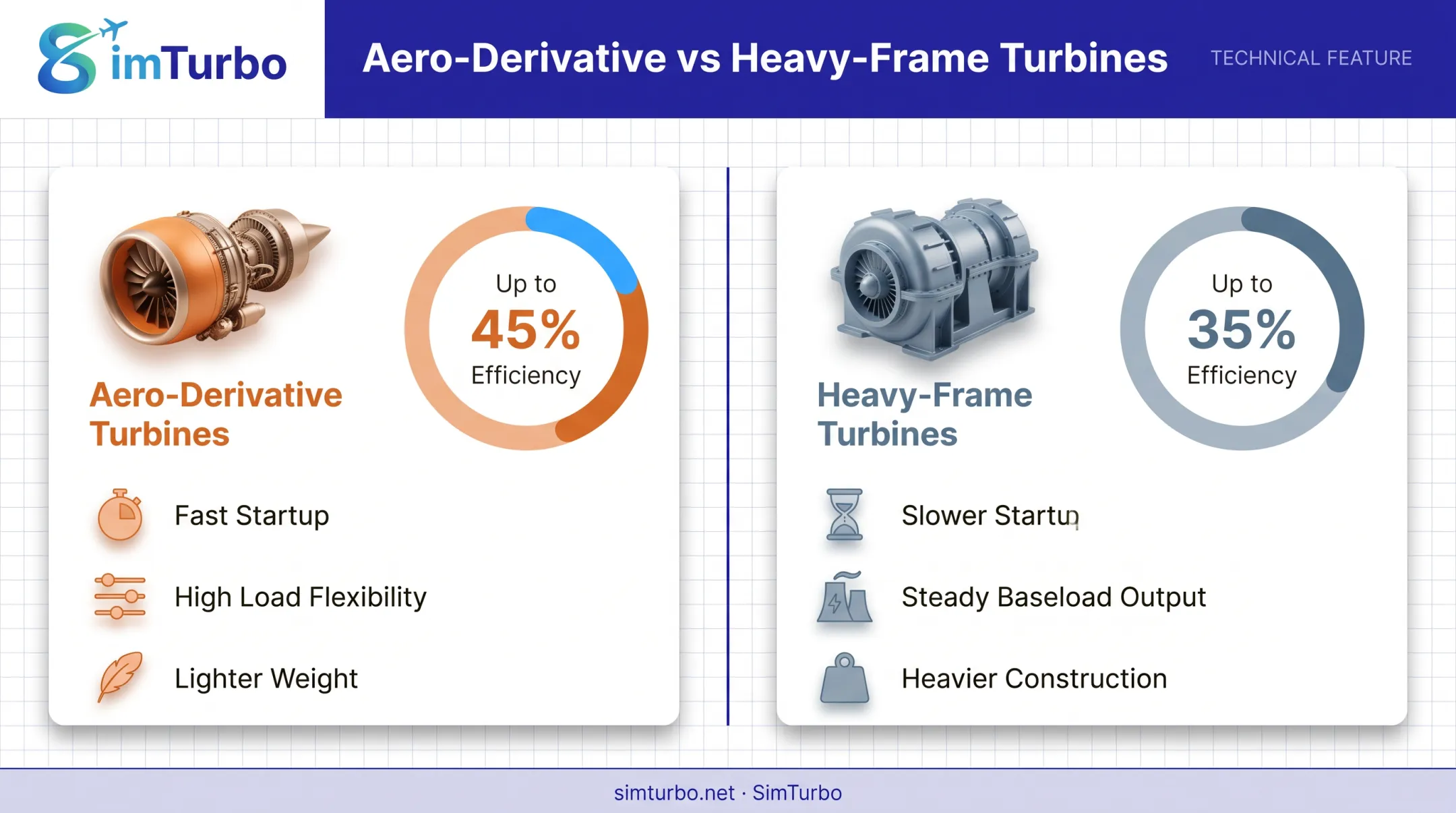

Aero-Derivative vs. Heavy-Frame Turbines
Aero-derivative turbines are adapted from jet engines. They're lighter, start faster, and handle load swings well. Heavy-duty frame turbines are built for steady baseload work.
- Efficiency: Aero-derivatives can reach up to 45% simple-cycle efficiency vs. up to 35% for frame units, depending on test conditions and rating basis (Turbomachinery International, 2017)
- Startup speed: Aero-derivatives spin up faster, which suits grid-support roles
- Load flexibility: Frame turbines favor constant output; aero-derivatives ramp more readily
Casing Design Affects Maintenance
Heavy-duty casings are often split horizontally and vertically for on-site maintenance access. One documented case completed split-casing repairs in place for under $100,000 in two to three days, though some repairs still require full unit removal. That access path is a packaging decision, not an afterthought.
Why this matters early: packaging decisions lock in physical envelope, lifting paths, and access clearances. Revising them after procurement is expensive. Get the layout wrong, and you're stuck with it for the life of the asset.
Core Design Considerations for Gas Turbine Systems
Compressor, Combustor, and Turbine Section Design
Each section, from inlet through nozzle, operates under different pressure, temperature, and flow conditions. Balancing them is the core engineering challenge.
Compressor choice drives much of the tradeoff:
- Centrifugal compressors can raise pressure by a factor of roughly 4 in a single stage, reducing part count and simplifying the package
- Axial compressors use multiple stages, supporting higher flow rates at the cost of added mechanical complexity
Neither wins universally. Compact packages often favor centrifugal designs; high-flow applications lean axial.
Neither wins universally. Compact packages often favor centrifugal designs; high-flow applications lean axial.
Combustor design must hold a stable flame across the operating envelope while limiting emissions and hot-streak damage downstream. The turbine then extracts work at the highest temperatures in the package, so cooling flows, material limits, and stage count set both efficiency and durability.
Fuel, Filtration, and Auxiliary Systems
Fuel systems must handle different pressure and treatment demands depending on whether the unit runs on gas or liquid fuel.
Air-side protection is just as critical. Get inlet filtration wrong, and you pay for it in blade wear.

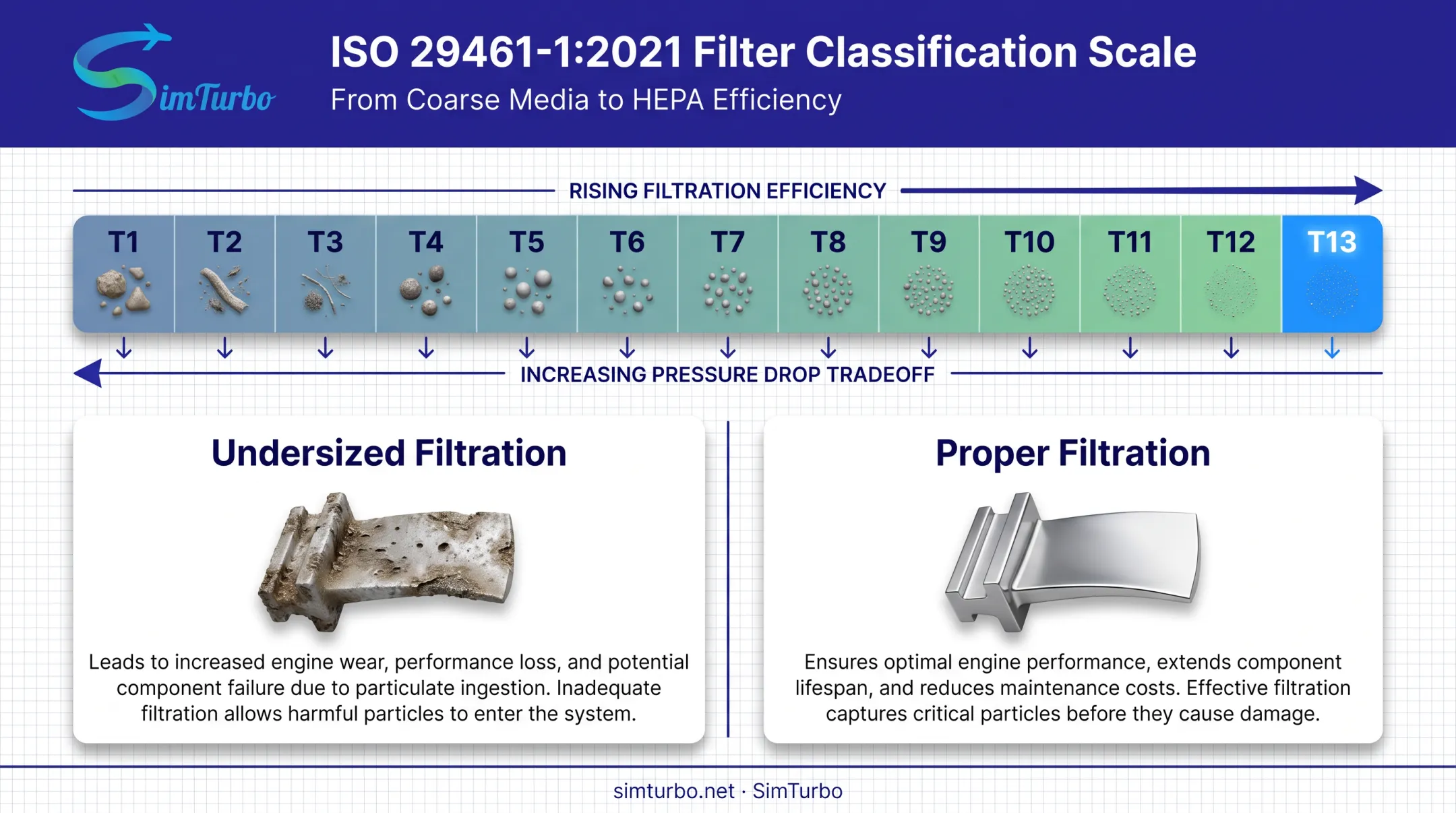

Inlet air filtration matters more than most people expect:
- ISO 29461-1:2021 defines filter classes from coarse (T1-T4) to HEPA (T13), based on particle size
- Undersized filtration lets particulates through, causing compressor fouling and erosion
- EPRI testing shows filters directly reduce fouling, erosion, and corrosion, but tighter filtration increases pressure drop
Lubrication systems carry their own risks. Viscosity selection (ASTM D445) and contamination control—including Karl Fischer water testing—protect bearings and hot-section components from premature wear.
Starting Devices and Control Systems
Starter sizing depends on the connected train, not a fixed formula. One documented single-shaft LNG application used a 1,250-hp auxiliary starter for purge sequencing plus an 8-MW main starter to overcome roughly 4,935 ft-lb of startup torque.
Two-shaft, free-power turbine designs complicate this further. Since the gas generator and power turbine spin independently, starter duty depends on which shaft is motored, not a simple scaled-down version of single-shaft sizing.
Monitoring protects the hot section:
- Infrared pyrometers infer blade metal temperature without physical contact
- Dynamic pressure transducers detect combustion instability before it damages hardware
- Dynamic pressure transducers detect combustion instability before it damages hardware
- Vibration and speed sensors flag bearing and rotor issues early in the start sequence
This is where control-system design tools earn their keep. SimTurbo's platform includes configurable PID controllers, limiters, actuators, and sensors. Built-in Speed, Temperature, and Surge Margin PID logic lets engineers validate control laws before committing to physical hardware.
The Role of Simulation Software in Modern Turbine Design
Building and testing a physical prototype is slow and expensive. Simulation lets engineers iterate on architecture and control logic first.
Component-based simulation avoids the black-box trap. Rather than treating an engine as one sealed unit, platforms like SimTurbo let engineers assemble inlets, compressors, combustors, turbines, and controllers individually, then reconnect them to test new architectures.
What that looks like in practice:
- Real-time runs on a standard PC
- Live time-history graphs, compressor maps, and thermodynamic cycle diagrams
- Interactive throttle changes that expose tight operating limits

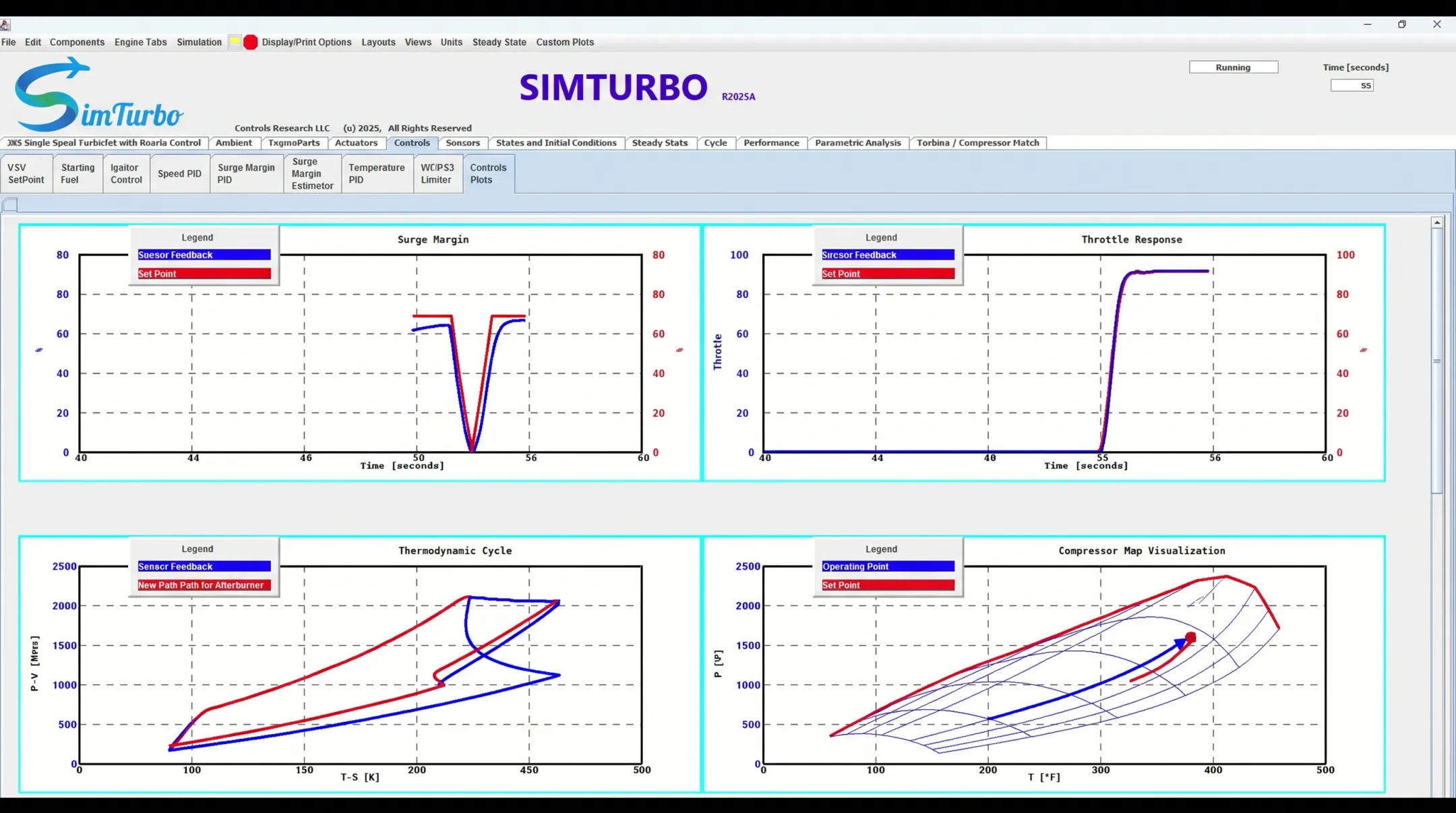

Engineers can watch surge margin drop from 20–25% in normal operation to below 5% during an afterburner transient—and see exactly where the limits get tight.
The platform's steady-state simulation of the J85-GE-21 turbojet was validated against NASA Lewis Research Center test data, landing within ±2% for thrust, flow rate, temperature, and fuel consumption across all four metrics.
Industry Investment in Predictive Tools
National labs are pushing the same direction. The National Energy Technology Laboratory has linked its MFiX CFD code with TensorFlow, combining physics-based modeling with machine learning to speed up simulation runs (NETL). Argonne National Laboratory pairs a physics-guided machine learning emulator with high-fidelity simulation for turbine cooling design.
In both cases, physics constrains the model and machine learning accelerates the expensive steps. SimTurbo applies that idea with a physics-informed neural network for turbojet control—maximizing transient speed response while holding turbine-inlet temperature and surge-margin limits.
For post-processing, exported time-series data (RPM, EGT, thrust, fuel consumption) can move into CSV or Excel, or serve as plant responses when validating control laws built in MATLAB/Simulink.
Common Packaging Challenges and How to Address Them
Footprint vs. maintenance access
Offshore packages still need compact, lightweight layouts. Siemens markets its SGT-A35 around small footprint and high power density for topside weight limits.
A tighter skid that blocks access can cost more in outage time than it saves in deck space. Freeze maintainability requirements—reach envelopes, laydown, and pull space—before the footprint is locked.
Heat recovery integration

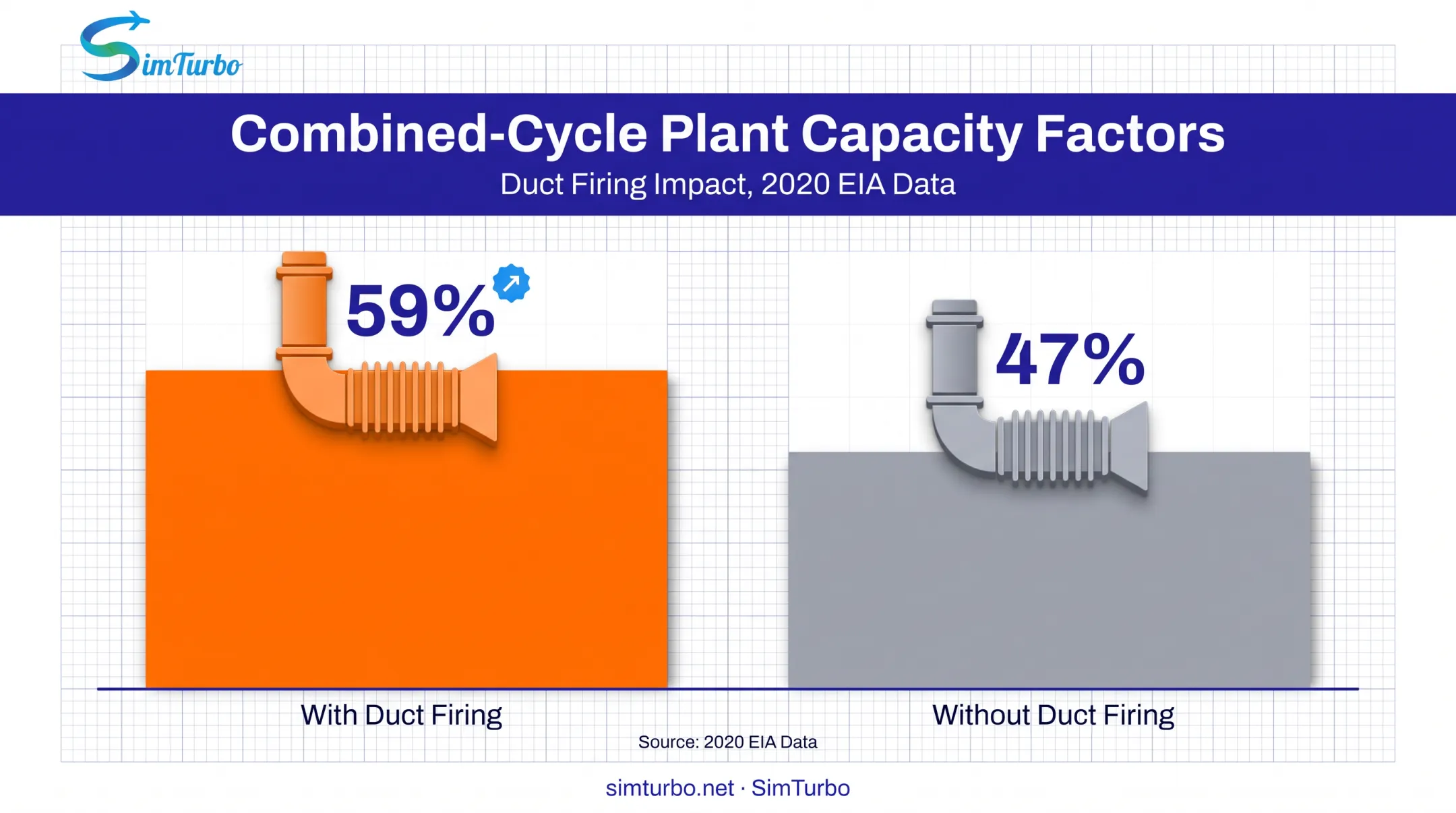

Supplementary firing in an HRSG adds fuel to turbine exhaust to raise steam output when demand spikes, at the expense of heat rate. EIA data shows combined-cycle plants with duct firing ran at a 59% average capacity factor in 2020, versus 47% without it. That gap marks firing as an operating strategy, not only an exhaust add-on.
Size duct burners and HRSG capacity against expected dispatch profiles, not peak steam alone, before you freeze the package interfaces.
Long lead times
A 2025 industry report noted large gas turbine order waits stretching from two to three years up to five years or more, with hot-gas-path outages taking two to four weeks.
Lock rotor and hot-gas-path kit specs early, treat long-lead spares as packaging constraints, and align outage windows with supplier lead times so the schedule holds.
Industry Trends Shaping Gas Turbine Design
Firing temperatures keep climbing. Back in 1998, advanced turbine programs targeted 2,400°F. DOE's more recent advanced-turbine program set a goal of 3,100°F with 65% combined-cycle efficiency.
Newer combined-cycle plants entering service between 2014 and 2023 typically post heat rates below 7,000 Btu/kWh, versus roughly 7,500 Btu/kWh for the prior generation (EIA). Hotter cycles raise the bar for materials, cooling, and package thermal design.
Grid flexibility adds another constraint. The U.S. added 7,376 MW of combined-cycle and 1,756 MW of simple-cycle capacity in 2023, with simple-cycle units mainly backstopping renewable variability. Fast-start duty reshapes how auxiliaries, enclosures, and controls get packaged.
Design tools are shifting too. Teams pair machine learning with established physics models rather than replacing them, cutting simulation time while keeping validated thermodynamics in the loop.
Implications for packaging and design:
- Higher firing temps force earlier thermal and materials trade-offs
- Flexible grid duty favors packages built for rapid start and cycling
- Physics-informed simulation shortens architecture and control studies before hardware commit
Frequently Asked Questions
What is the difference between aero-derivative and heavy-duty gas turbines?
Aero-derivatives are lighter, start faster, and adapt well to changing loads. Heavy-duty frame turbines are built for steady, baseload operation where efficiency at constant output matters more than flexibility.
What factors most affect gas turbine packaging efficiency?
Power and heat integration, component quality, and combustion process improvements drive the largest efficiency gains. Filtration and auxiliary system design also play a meaningful role over the equipment's life.
How does simulation software help in turbine design validation?
It lets engineers test control logic and performance scenarios virtually, using component-based models instead of black-box engine representations. This catches design issues before expensive physical testing begins.
Why is inlet air filtration important in gas turbine packaging?
Poor filtration allows particulates through, causing compressor fouling and blade erosion. This reduces efficiency and reliability over time, and tighter filtration must be balanced against added pressure drop.
What is deep integration in gas turbine packaging?
It refers to closely matching the turbine with plant heat recovery and auxiliary systems, such as HRSGs, to maximize overall plant efficiency rather than optimizing the turbine in isolation.
How long does it typically take to design and validate a gas turbine package?
Timelines vary widely with scale and complexity, and long-lead components like rotors can take years to procure. Simulation tools can shorten the design and control-validation portion of that timeline.
