Nozzle design is a balancing act. These components must survive extreme temperatures and pressures while precisely controlling flow geometry down to fractions of a degree. Miss the target, and you're looking at thrust losses, higher fuel burn, or worse, choked flow that stalls the whole engine.
This guide covers nozzle types, the design parameters that actually move the needle on performance, material choices for hot-section survival, and how modern simulation tools like SimTurbo help engineers validate designs before committing to hardware.
Key Takeaways
- Convergent, convergent-divergent, and variable geometry set whether exhaust flow stays subsonic, reaches sonic, or goes supersonic
- High-temperature materials and cooling must trade strength for manufacturing complexity
- Simulation lets engineers probe transient conditions before cutting metal
- Area scheduling beats any single "optimal" shape: the same 23% area cut can raise or reduce thrust by condition
What Is a Turbine Nozzle and Why Design Matters
A turbine nozzle directs combustion gas flow and converts thermal and pressure energy into kinetic energy. Where it sits in the engine sets its job: guide vanes feed the turbine rotor, while an exhaust nozzle produces thrust. Small geometry changes show up quickly in efficiency and fuel burn.
NASA's Glenn Research Center models nozzle losses with an efficiency factor normally very close to 1.0. Exit velocity depends directly on nozzle pressure ratio and total temperature.
Two distinct nozzle functions get lumped together in casual conversation, but engineers need to separate them:
- Nozzle guide vanes (NGVs) direct combustion gas onto turbine blades, setting inlet velocity and pressure for energy extraction without generating thrust
- Exhaust/propelling nozzles accelerate exhaust gases to generate thrust in turbojets and turbofans
A 2025 peer-reviewed study on a Jet Cat P80 micro-turbojet found that an ejector nozzle configuration increased steady-state thrust by up to 6.1% and cut specific fuel consumption by roughly 5.5%. Results like these are configuration-specific. Every nozzle-efficiency claim needs its own operating context.
Types of Nozzles Used in Turbine Engines
Turbine engines use several nozzle architectures, each matched to a different exhaust-velocity target and operating range.

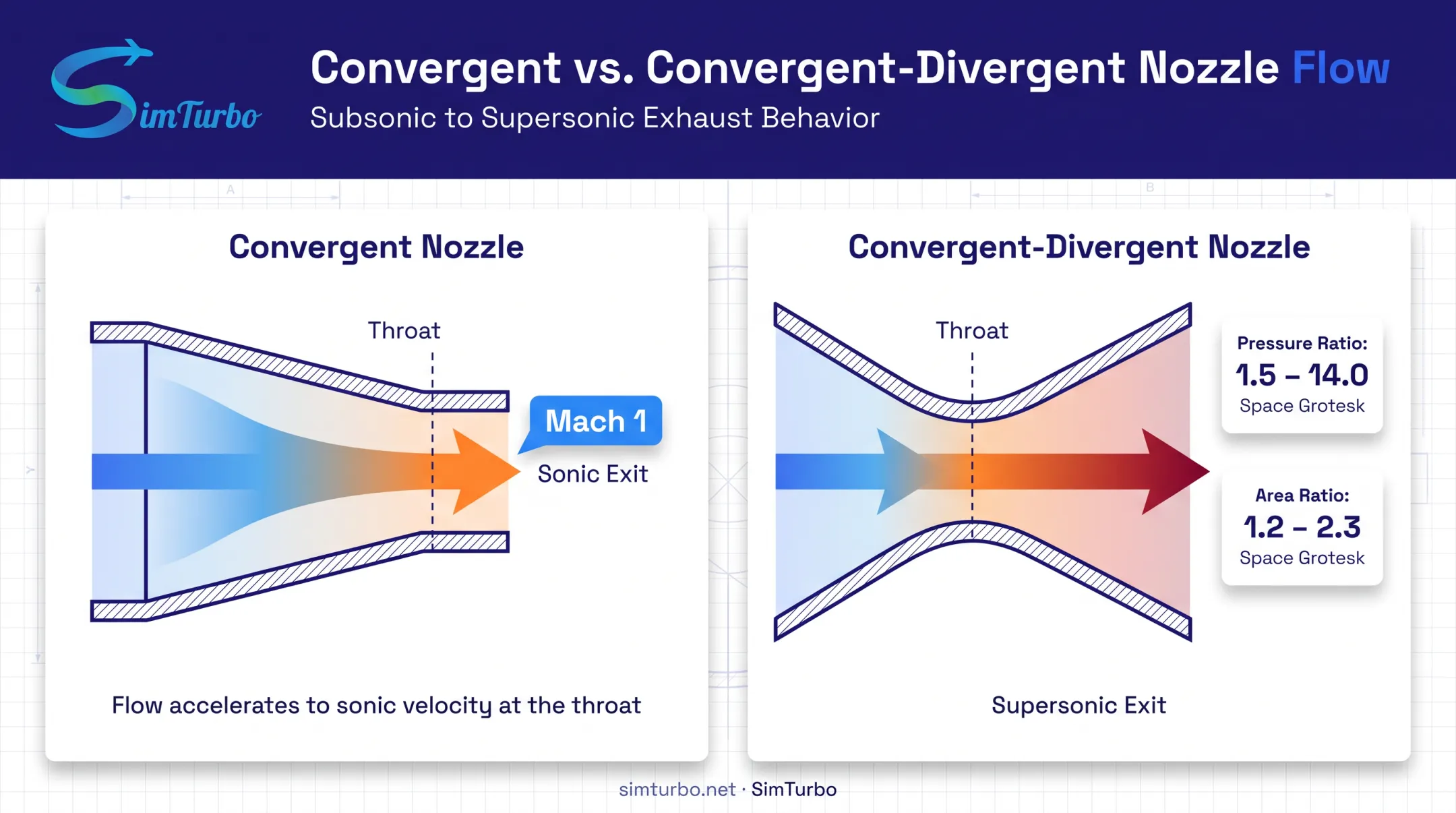

Convergent Nozzles
Convergent nozzles use the simplest architecture. NASA notes that fixed convergent nozzles are standard on simple turbojets and turboprops, where subsonic exhaust is the design target. The narrowing cross-section accelerates flow up to sonic velocity at the throat and stops there. A purely convergent shape cannot produce supersonic exit flow.
Convergent-Divergent (CD) Nozzles
Flow contracts to the throat, then expands through a divergent section, pushing gas past sonic speed. NASA's J85 2D-CD nozzle testing mapped performance across a wide envelope:
- Internal area ratios from 1.2 to 2.3
- Nozzle pressure ratios from 1.5 to 14.0
- Corrected gross thrust coefficient of 0.985 or higher above an NPR of 4 in nearly every configuration tested
This geometry is standard for afterburning military engines and other high-performance applications where supersonic exhaust velocity is the goal.
Variable Geometry Nozzles
Afterburning turbojets and turbofans need variable-geometry CD nozzles because a fixed throat area can't match both dry and afterburner-lit operating conditions. Actuation varies throat and exit area. The hardware adds weight, but it buys efficient operation across a much wider airflow range.
Nozzle Guide Vanes (Turbine Inlet Nozzles)
These are static components, not thrust producers. NGVs sit at the turbine-stage entry, direct hot combustion gas onto the turbine blades, and set the inlet velocity and pressure profile the blades see. Think of them as traffic control for combustion gas before it does mechanical work.
Core Design Parameters That Determine Nozzle Performance
Four variables drive nozzle behavior, and they interact in ways that trip up first-pass designs.

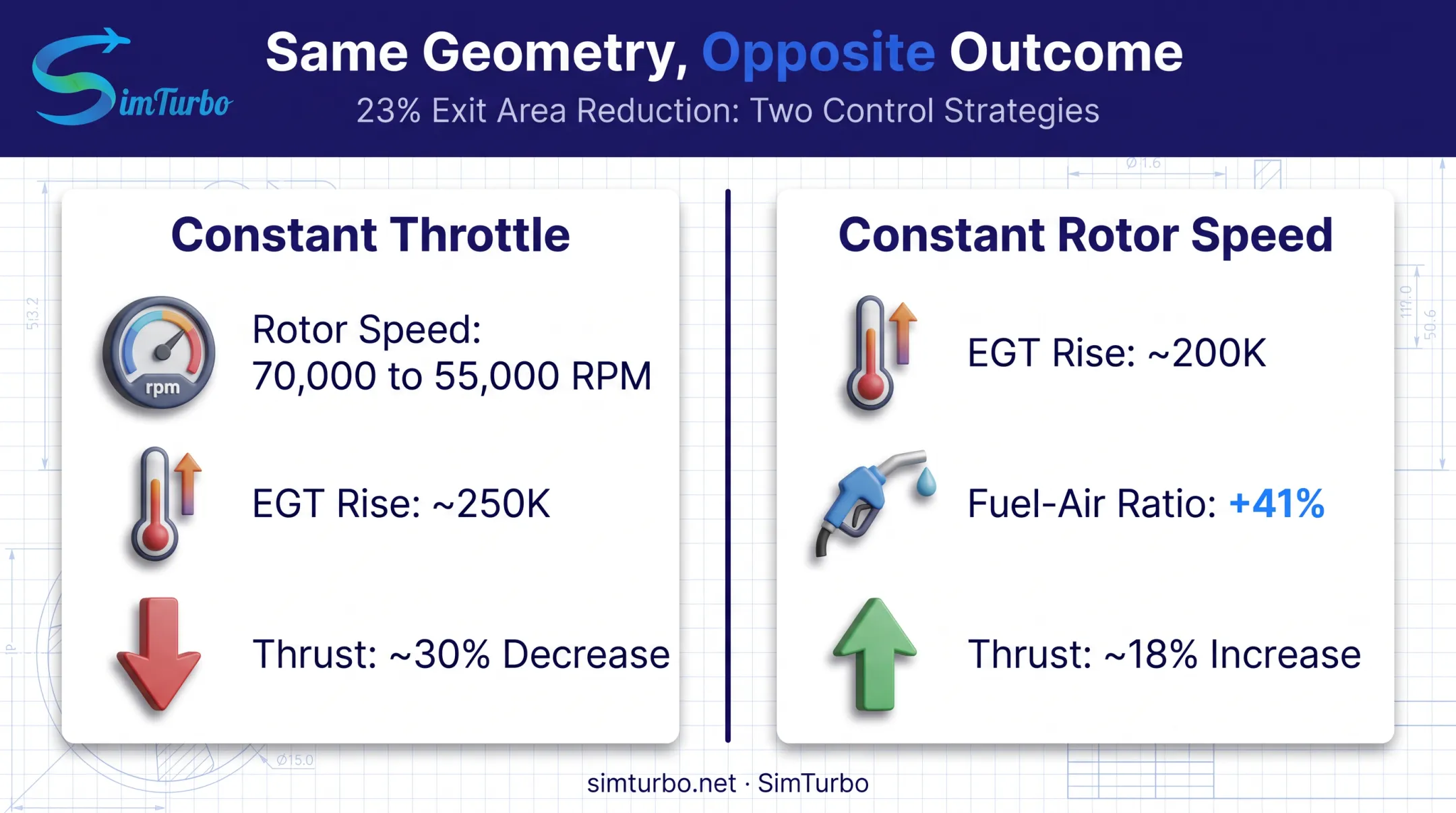

Area ratio and throat geometry control mass flow rate and exit velocity directly. A 2021 study on an AMT Titan single-spool turbojet reduced exit area by 23% and found:
- At constant throttle: rotor speed fell from ~70,000 to 55,000 rpm, exhaust gas temperature (EGT) rose ~250 K, and thrust dropped nearly 30%
- At constant rotor speed: EGT rose ~200 K, thrust increased about 18%, and fuel-air ratio jumped 41%
Same geometry change, opposite thrust outcome. The control condition determines the result — this is the single most common mistake in early-stage nozzle sizing.
Pressure ratio determines whether flow chokes and reaches sonic conditions at the throat. Once choked, further pressure ratio increases don't raise mass flow through that throat area.
Vane angle and curvature affect swirl and energy transfer efficiency onto turbine blades. Get the angle wrong and you're wasting kinetic energy as unrecovered swirl instead of shaft work.
Boundary layer behavior and flow separation eat into nozzle efficiency. NASA's J85 testing found corrected thrust data generally within 2% of ideal isentropic predictions.
One high-divergence configuration (23.7-degree divergent flap) landed about 4% below ideal, a direct consequence of flow separation at that geometry.
Simulation and Validation: Modern Approaches to Nozzle Performance Analysis
Physical prototyping alone is slow and expensive. Every geometry change means new hardware, new test-cell time, new instrumentation. That cost and schedule burden is why propulsion teams push analysis as far as they can before cutting metal.
Component-based simulation platforms address this directly. Instead of treating the engine as a black box, they let engineers model the nozzle alongside compressors, combustors, and shafts so system-level interaction effects show up before hardware exists.

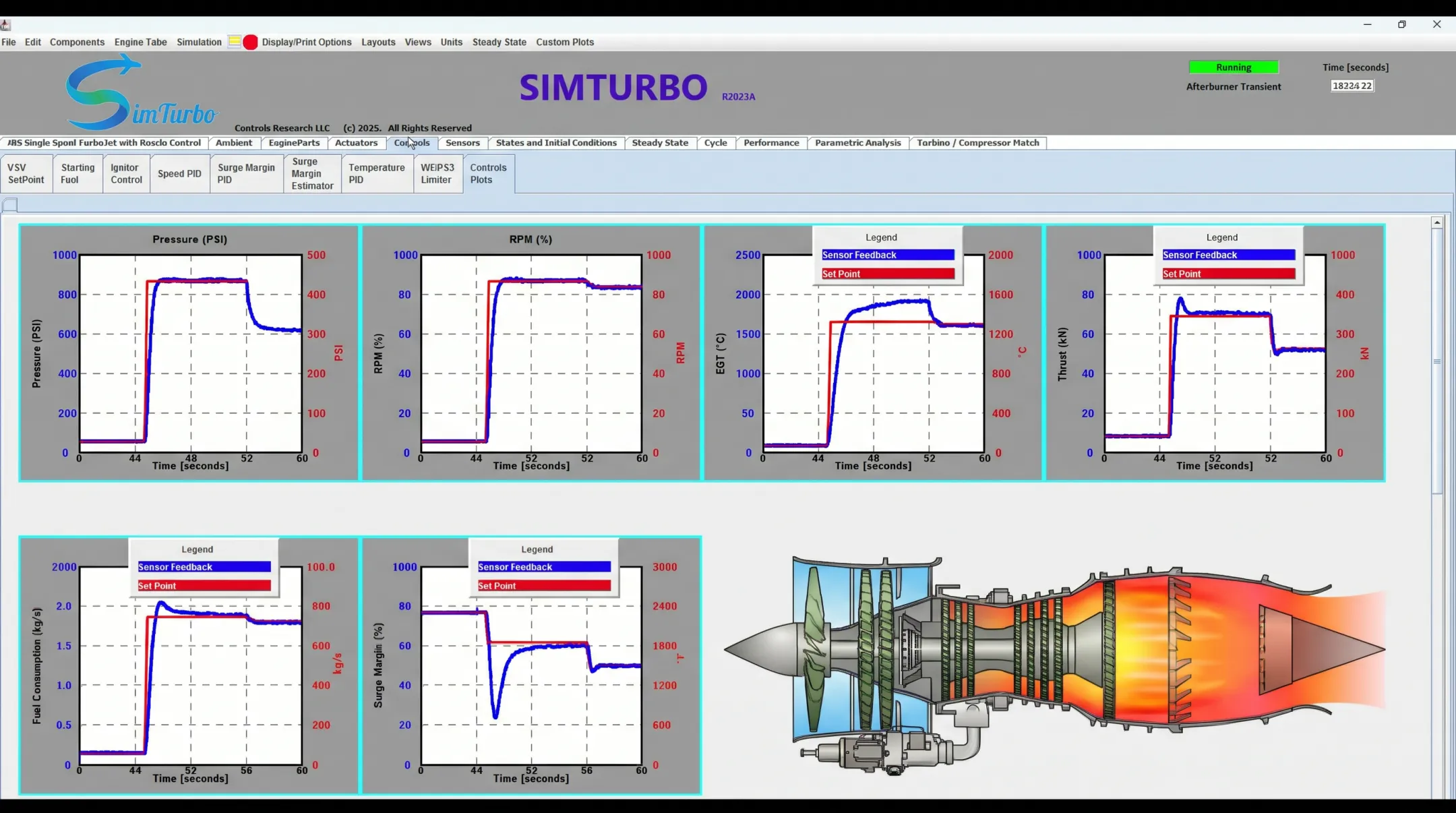

SimTurbo, built by Controls Research LLC, works this way. Its architecture links modifiable components in a real-time simulation loop on a standard PC:
- Inlets, compressors, combustors, turbines, nozzles, and shafts
- Live plots for pressure, RPM, EGT, thrust, fuel consumption, and surge margin
Engineers re-parameterize a nozzle, run the transient case, and watch those plots update as the system responds.
One documented example: during an afterburner transient, nozzle area shifts from a closed/optimized state to immediate expansion while control logic works to prevent choking. Surge margin in that case dropped from a normal 20–25% range to under 5% before adaptive control restored it. That's the kind of transient behavior a steady-state spreadsheet will never show you.
SimTurbo's single-spool turbojet model was benchmarked against NASA Lewis Research Center J85-GE-21 test data, matching thrust, flow rate, temperature, and TSFC within ±2%. That engine-level result covers four overall performance measures and supports credibility at the system level, not as a standalone nozzle-only claim.
For further analysis, simulation output exports as CSV and Excel time-series files. Typical fields and handoffs include:
- RPM, EGT, thrust, and SFC traces for post-processing
- Built-in PID and FADEC logic exported as plant responses
- Control-law checks in external tools such as MATLAB/Simulink or Python
Materials and Thermal Management for Nozzle Components
Nickel-based superalloys remain the standard choice for hot-section nozzle hardware because they retain strength at temperatures that would deform most other metals. NASA Glenn's materials research attributes decades of rising turbine operating temperatures directly to single-crystal nickel-based superalloys, thermal barrier coatings, and cooling technology advances.

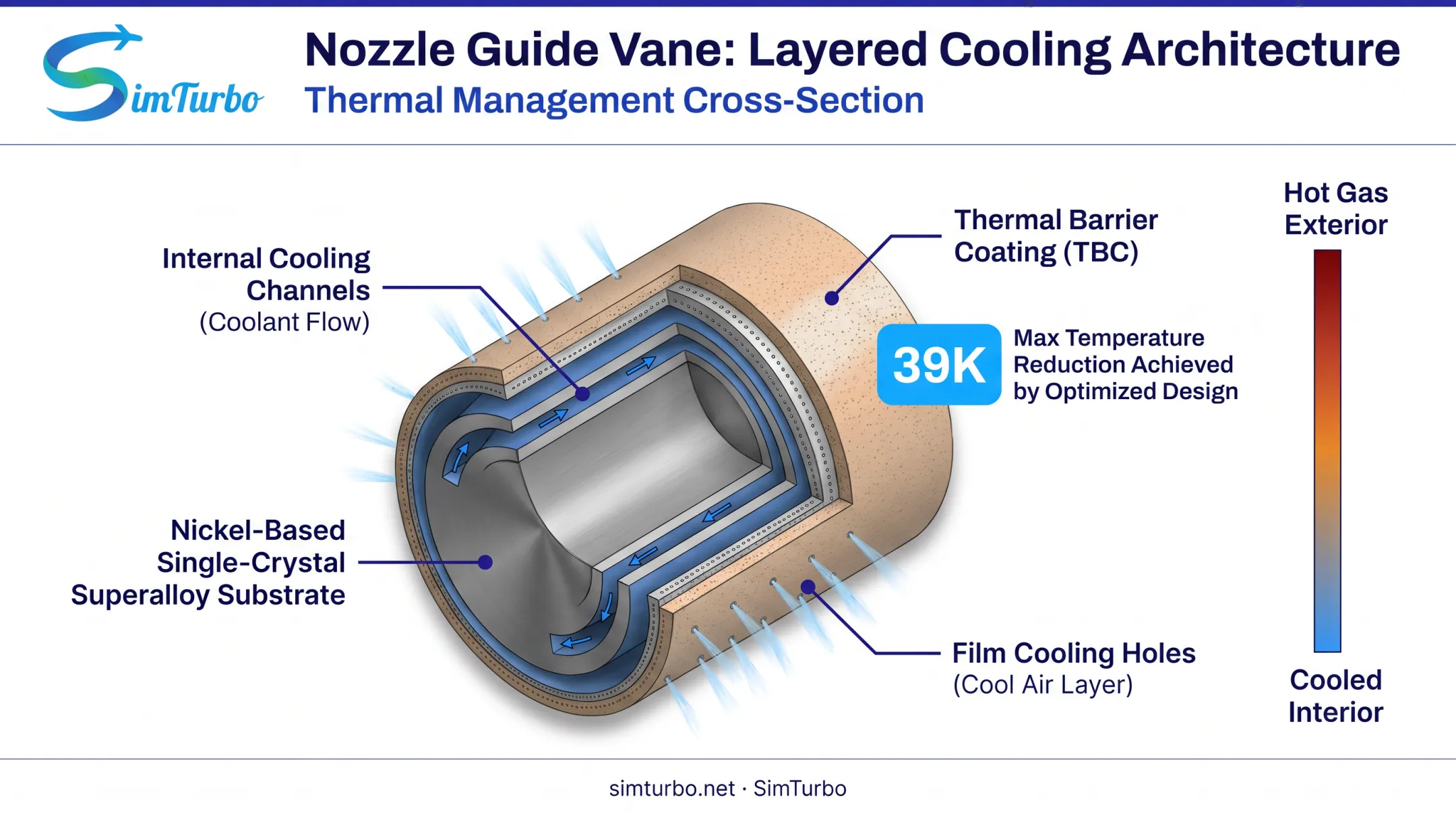

Cooling architecture typically combines:
- Internal cooling channels routing coolant through the component body
- Film cooling holes releasing a thin protective layer of cooler air over hot surfaces
- Thermal barrier coatings (TBCs) providing an insulating layer between hot gas and metal substrate
A documented nozzle guide vane (NGV) thermal-shock study used exactly this stack: a nickel-based single-crystal superalloy substrate with a TBC, cooling slots, and film cooling holes. A separate optimized cooling design reduced maximum vane temperature by 39 K and average temperature by nearly 20 K compared to baseline, with meaningful gains for component life.
Trade-off: more cooling channels and coating layers add manufacturing cost and complexity. Silicon carbide ceramic matrix composites are being targeted for temperatures over 1315°C, more than 100°C above nickel-based superalloy limits. They are not a drop-in replacement; they demand different manufacturing processes entirely.
Common Nozzle Design Challenges and Optimization Best Practices
Higher operating temperatures mean better thermal efficiency, but only up to the point where materials and cooling can keep pace. Push past that, and you're trading efficiency gains for component failures.
Related issues show up just as often: choking under off-design pressure ratios, surge-margin loss during throttle transients, and cooling-flow penalties that erase cycle gains. Catching these early keeps optimization work tied to real operating limits.
Optimization best practices:
- Validate designs against transient throttle and startup conditions, not only steady-state cruise
- Run iterative simulation before physical prototypes to catch geometry flaws at lower cost
- Report area ratio, pressure ratio, and control condition with every thrust figure
- Treat cooling-flow penalties as part of the performance budget, not an afterthought
SimTurbo supports this workflow by simulating startup and slam-acceleration sequences alongside throttle transients. It shows nozzle-area commands, pressure dynamics, and choking risk in real time, so you reach the test cell with fewer surprises.
Frequently Asked Questions
What types of nozzles are used in turbine engines?
The main types used in turbine engines are:
- Fixed convergent — subsonic exhaust
- Convergent-divergent — supersonic exhaust for afterburning engines
- Variable geometry — adjustable area for wide operating ranges
- Nozzle guide vanes — static turbine inlet flow direction (no thrust)
How does nozzle design affect overall turbine engine performance?
Nozzle geometry and pressure ratio set exit velocity and mass flow, which directly determine thrust and fuel consumption. A poorly matched nozzle wastes energy as unrecovered swirl or excess drag rather than useful thrust.
What materials are used for turbine nozzle components?
Nickel-based superalloys are the industry standard, often paired with thermal barrier coatings and internal or film cooling channels. Emerging ceramic matrix composites push temperature limits further but require different manufacturing approaches.
How is turbine nozzle performance validated before manufacturing?
Engineers use simulation software to model nozzle behavior, thrust, and transient response before hardware exists. SimTurbo's J85-GE-21 model matched NASA test data within ±2% for thrust, flow rate, temperature, and TSFC at the engine level.
What is the difference between convergent and convergent-divergent nozzles?
Convergent nozzles accelerate flow up to sonic velocity at the throat and stop there, suited for subsonic exhaust applications. Convergent-divergent nozzles add an expanding section that pushes flow past sonic speed for supersonic exhaust velocities.
Can simulation software replace physical nozzle prototype testing?
No. Tools like SimTurbo reduce risk and catch design issues early so engineers can screen concepts before test-cell work. Physical testing still confirms durability, manufacturing quality, and certification requirements simulation alone can't verify.
